B1423

DTC B1423 Pressure Switch Circuit

CIRCUIT DESCRIPTION
This pressure switch sends the appropriate signals to the A/C control assembly when the NO refrigerant pressure drops too low or rises too high. When the A/C control assembly receives these signals, it outputs signals via the ECM to switch off the compressor relay and turns the magnetic clutch off.

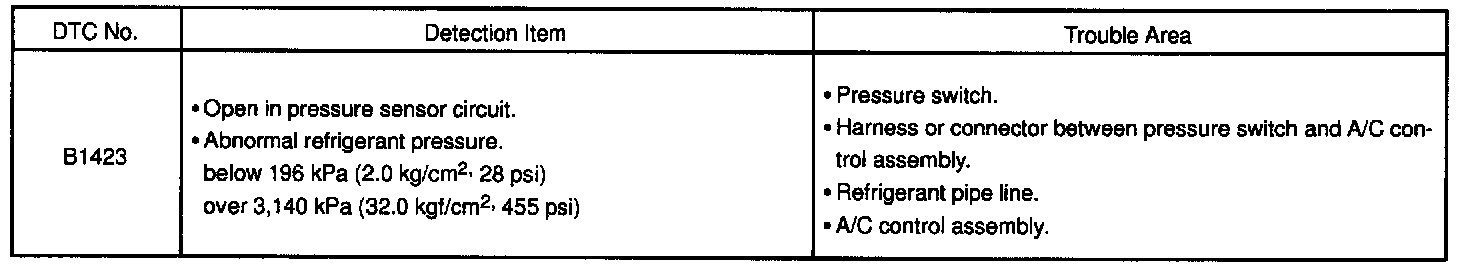

DETECTING CONDITIONS





WIRING DIAGRAM

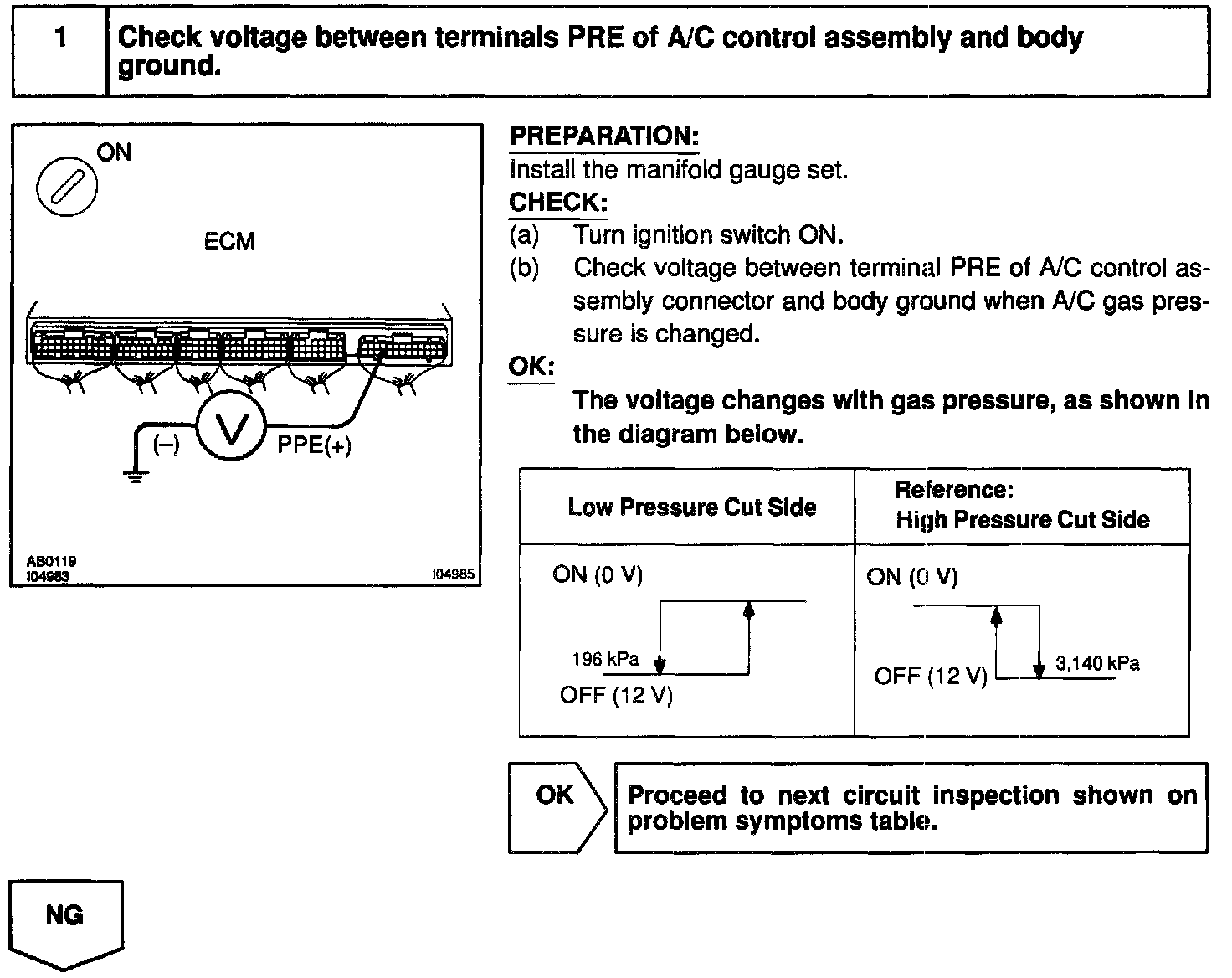

Step 1:

Step 2:

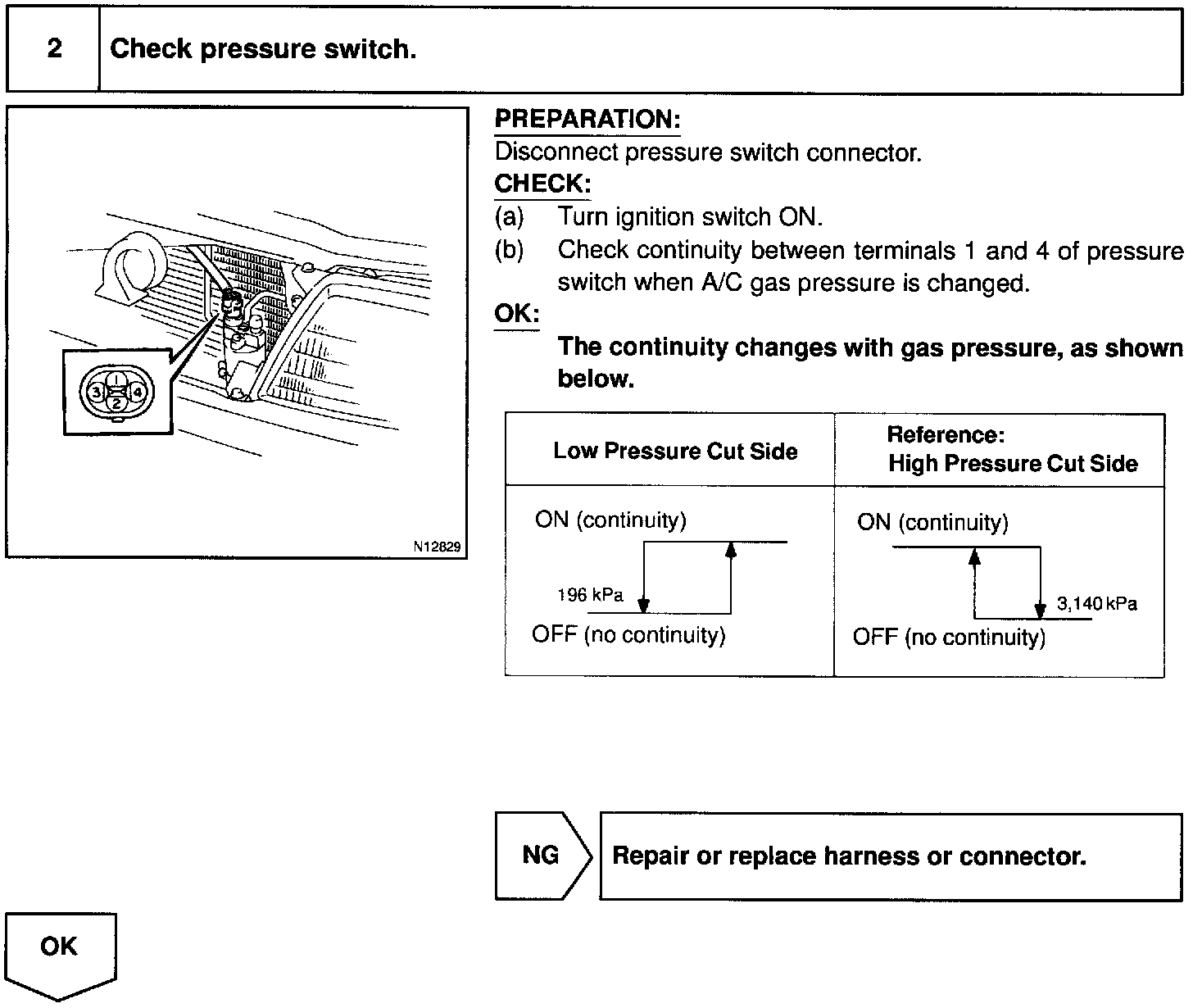

Step 3:

INSPECTION PROCEDURE
