B0136

DTC B0136 Open In P/T Squib (LH) Circuit

CIRCUIT DESCRIPTION
The P/T squib circuit (LH) consists of the airbag sensor assembly and seat belt pretensioner (LH). If causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0136/74 is recorded when an open is detected in the P/T squib (LH) circuit.

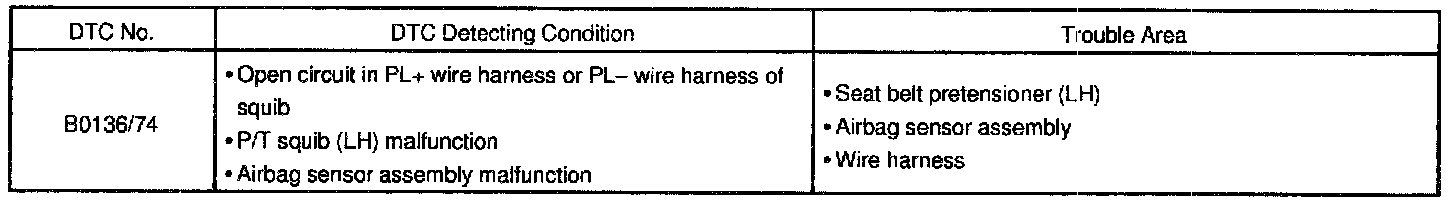

DETECTING CONDITIONS





WIRING DIAGRAM

Step 1:

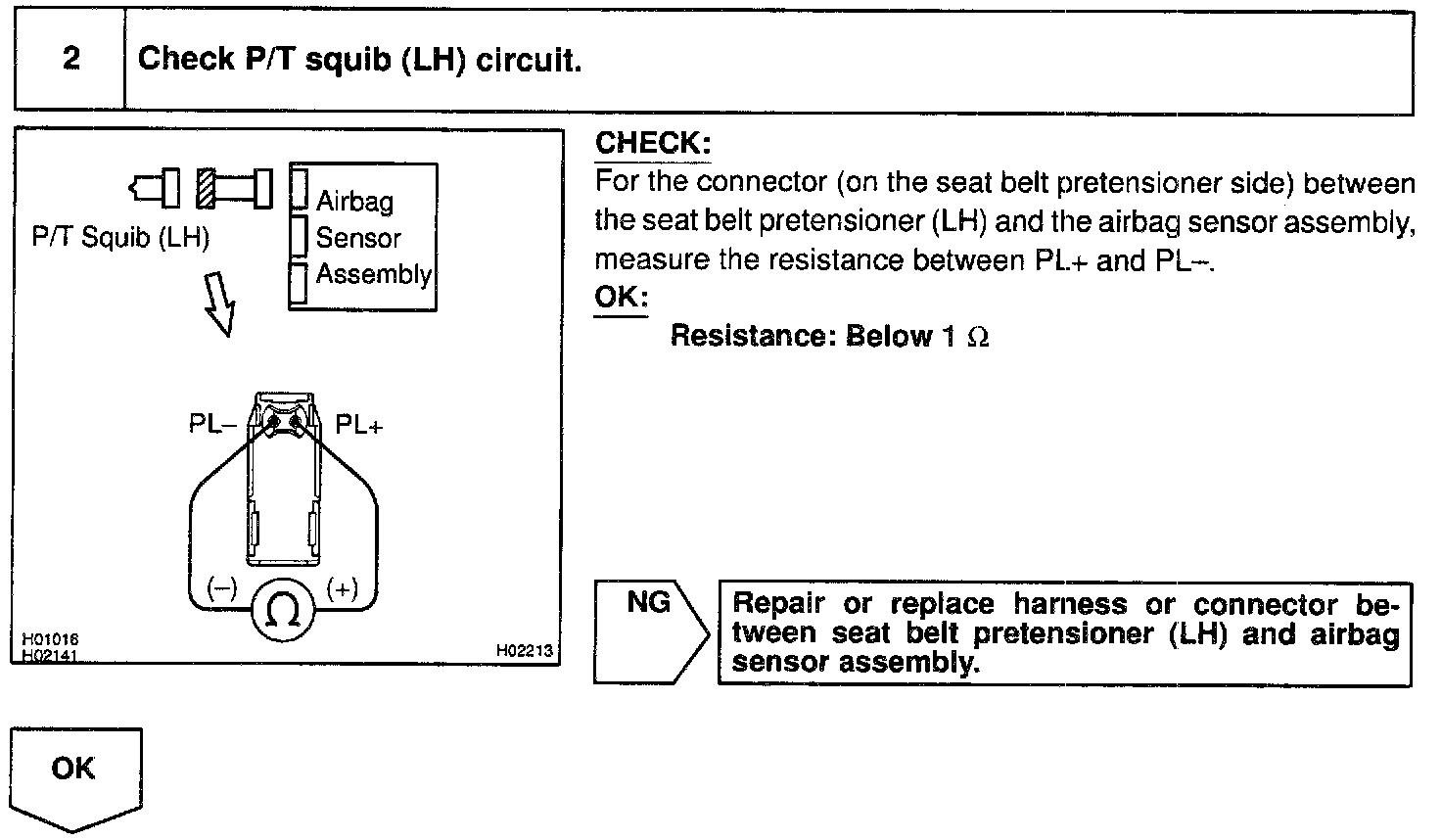

Step 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
