B0108

DTC B0108 Short In P Squib Circuit (to B+)

CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly. If causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0108/52 is recorded when a B+ short is detected in the P squib circuit.





DETECTING CONDITIONS





WIRING DIAGRAM

Step 1:

Step 2:

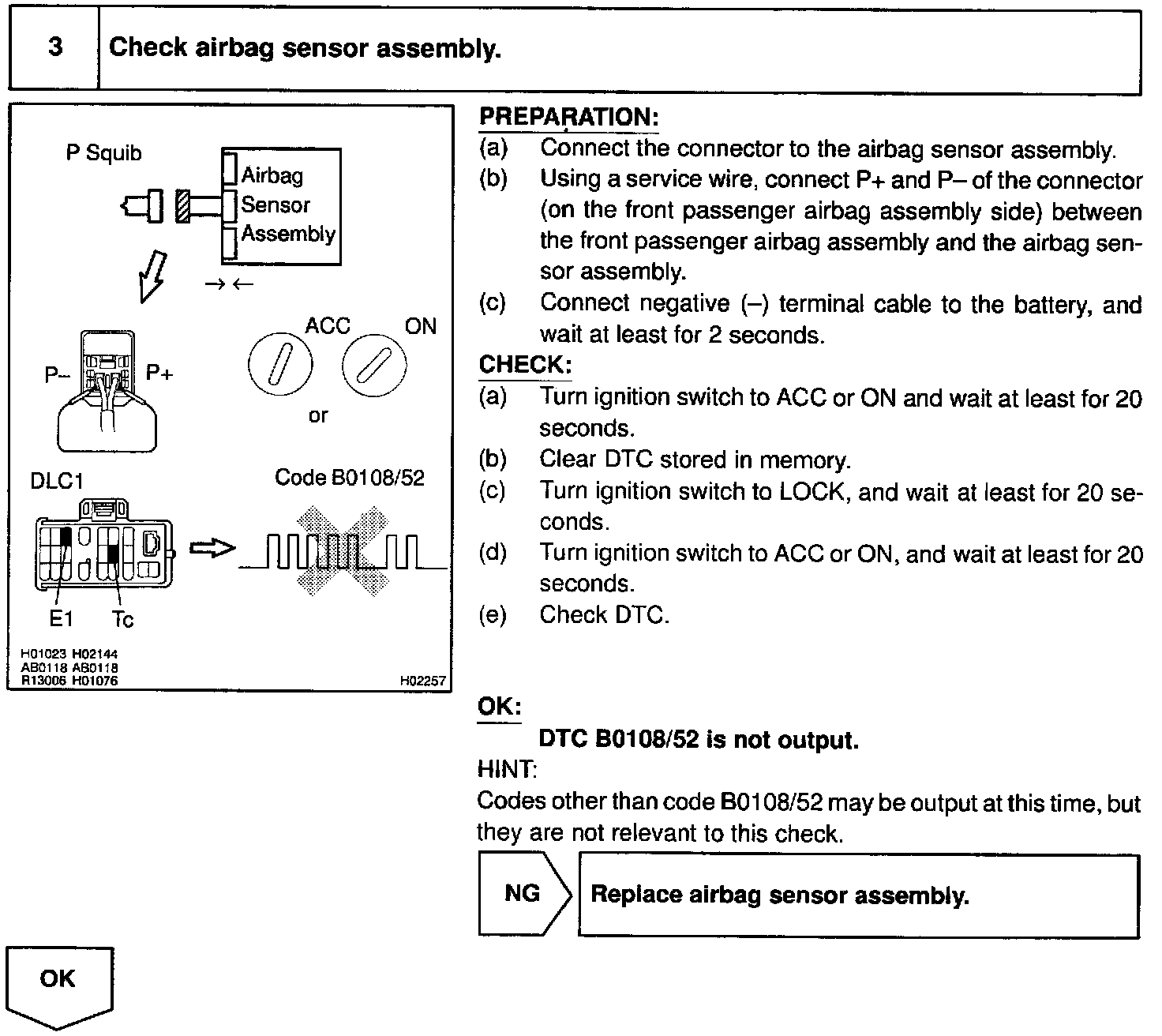

Step 3:

Step 4:

INSPECTION PROCEDURE
