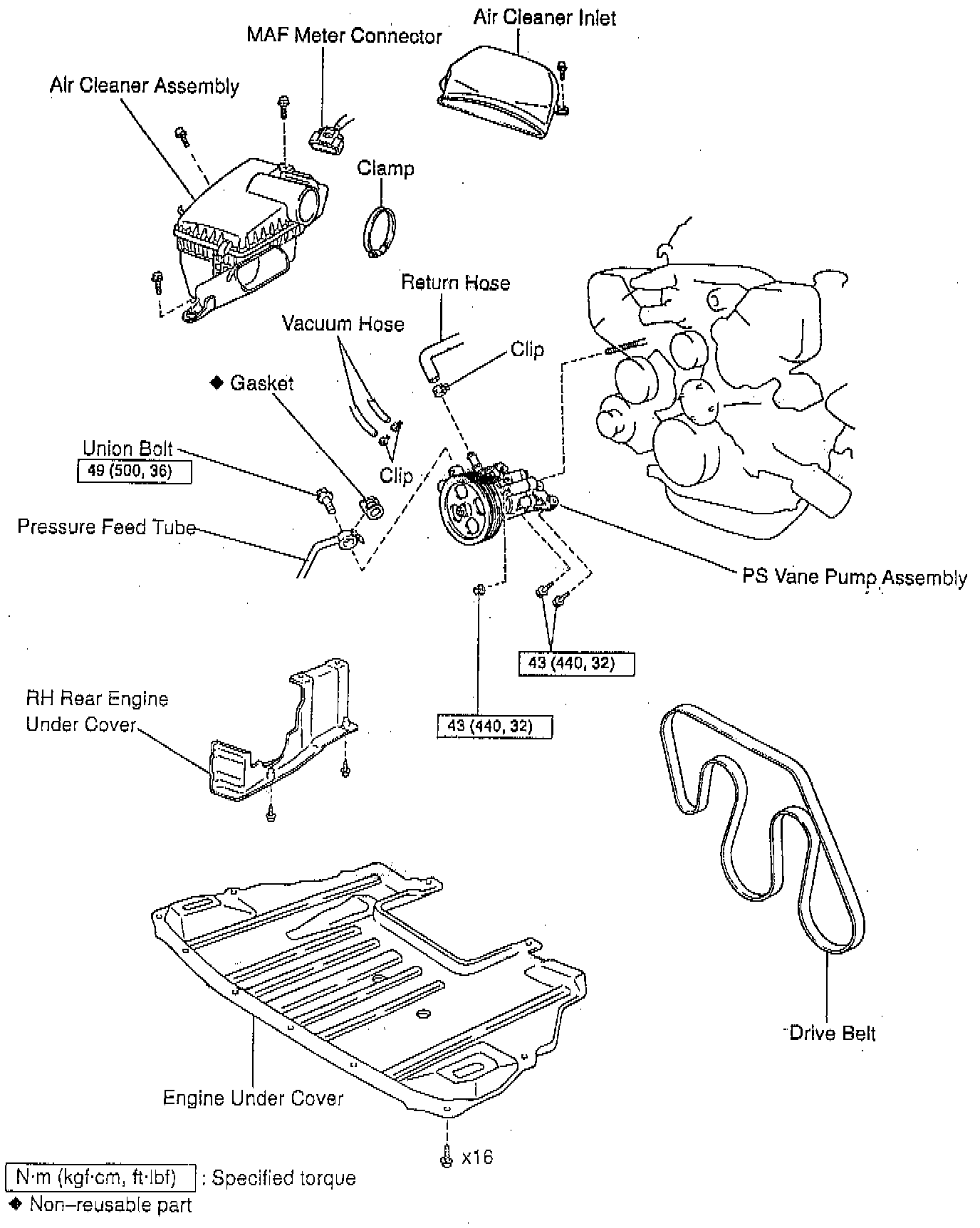

Removal and Installation

REMOVAL
1. Remove engine under cover.
Remove the 16 bolts.
2. Remove Right-Hand (RH) rear engine under cover.
Remove the 2 bolts.
3. Remove air cleaner inlet.
Remove the bolt.
4. Remove air cleaner assembly with air cleaner hose.
a. Disconnect the MAF meter connector.
b. Remove the clamp.
c. Remove the 3 bolts.





5. Remove drive belt.

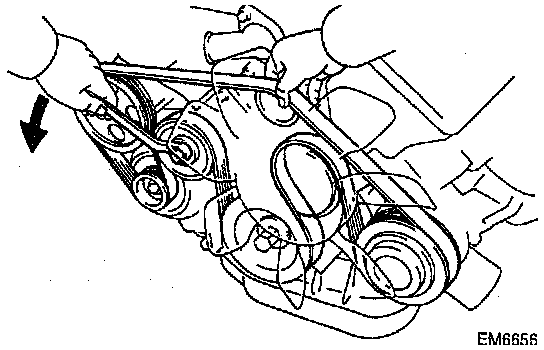

Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and remove the drive belt.
6. Disconnect 2 vacuum hoses.
Remove the 2 clips.
7. Disconnect return hose.
Remove the clip and disconnect the hose.
8. Remove pressure feed tube.
Remove the union bolt and gasket.
9. Remove power steering vane pump assembly.
Remove the 2 bolts and nut.

INSTALLATION
1. Install power steering vane pump assembly.
Torque the 2 bolts and nut on the vane pump assembly.
Torque: 43 Nm (32 ft. lbs.)





2. Install pressure feed tube.
Torque the union bolt with a new gasket.

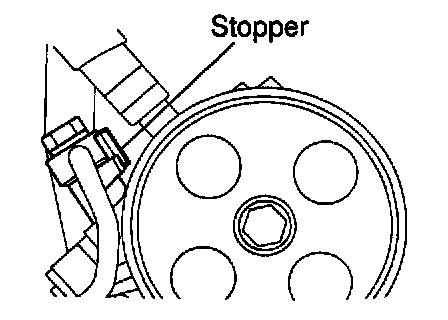

HINT: Make sure the stopper of the pressure feed tube touches the power steering vane pump body as shown in the illustration, then torque the bolt.

Torque: 49 Nm (36 ft. lbs.)
3. Connect return hose.
Connect the hose with the clip.
4. Connect 2 vacuum hoses.
Install the 2 clips.





5. Install drive belt.

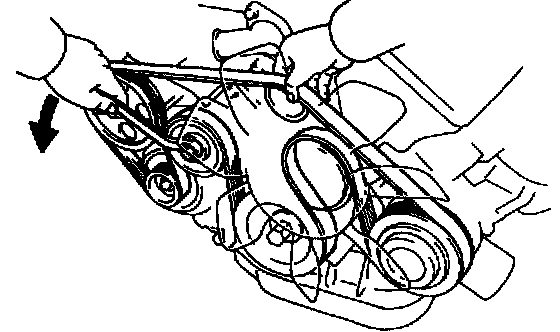

Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the belt.
6. Install air cleaner assembly with air cleaner hose.
a. Tighten the 3 bolts.
b. install the clamp.
c. Connect the MAF meter connector.
7. Install air cleaner inlet.
Tighten the bolt.
8. Install RH rear engine under cover.
Tighten the 2 bolts.
9. Install engine under cover.
Tighten the 16 bolts.
10. Bleed power steering system.
