Camshaft Position Sensor: Testing and Inspection

INSPECTION

INSPECT CAMSHAFT POSITION SENSOR
(a) Remove the 2 bolts, 2 cap nuts and V-bank cover.
(b) Disconnect the sensor connector.

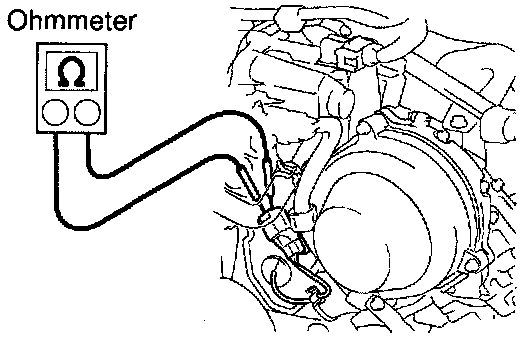

(c) Using an ohmmeter, measure the resistance between terminals.

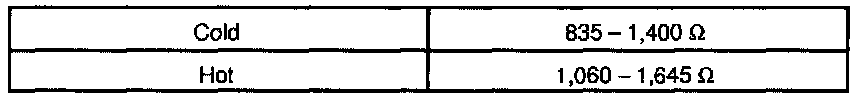

Resistance:
If the resistance is not as specified, replace the sensor.

(d) Reconnect the sensor connector.
(e) Reinstall the V-bank cover with the 2 bolts and 2 cap nuts.
