Mode Control Motor

REMOVE AIR OUTLET SERVOMOTOR
a. Remove these parts:
1. No. 2 under cover
2. Glove compartment door
3. Glove compartment panel

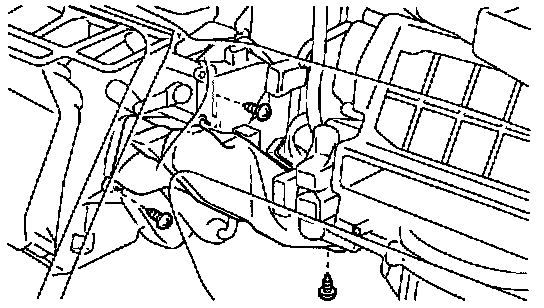

b. Remove the air duct.
1. Remove the 3 screws and air duct.

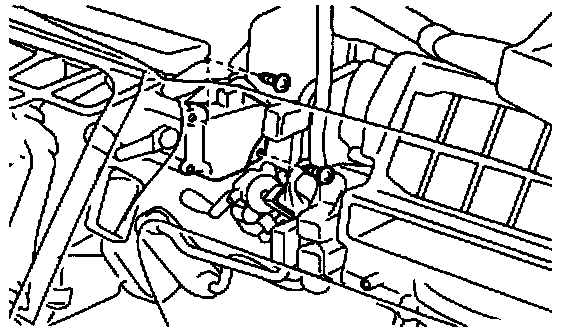

c. Remove air outlet servomotor.
1. Disconnect the connector.
2. Remove the 2 screws and servomotor.

INSTALLATION
Installation is in the reverse order of removal.
