Max Cool Control Motor

REMOVAL

REMOVE AIR INLET SERVOMOTOR




a. Remove these parts:
1. Front door scuff plate RH
2. Cowl side trim RH
3. No.2 under cover
4. Glove compartment door
5. Glove compartment panel

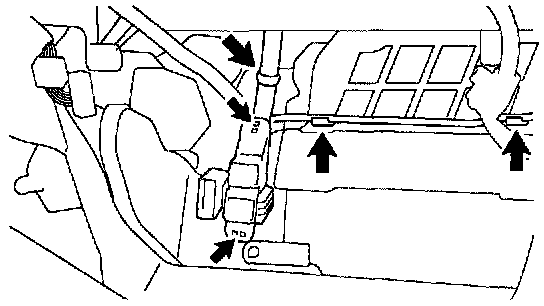

b. Disconnect the wire harness.




c. Remove the bracket.

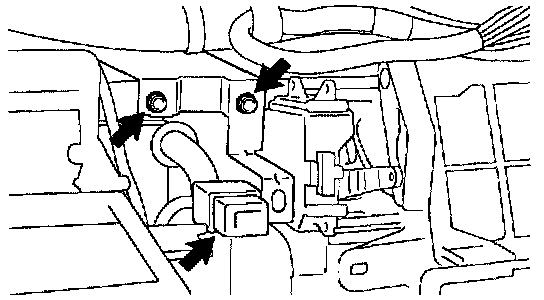

1. Disconnect wire harness clamp.
2. Remove the 2 bolts and bracket.

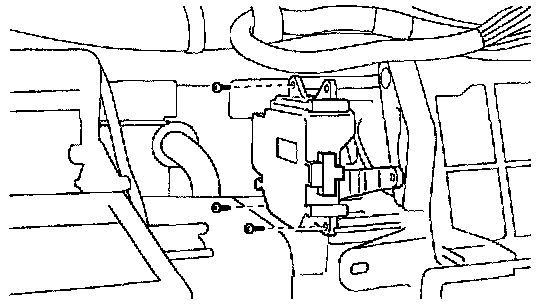

d. Remove the air inlet servomotor.
1. Disconnect the connector.
2. Remove the 3 screws and servomotor.

INSTALLATION
Installation is in the reverse order of removal.
