Radiator
Radiator

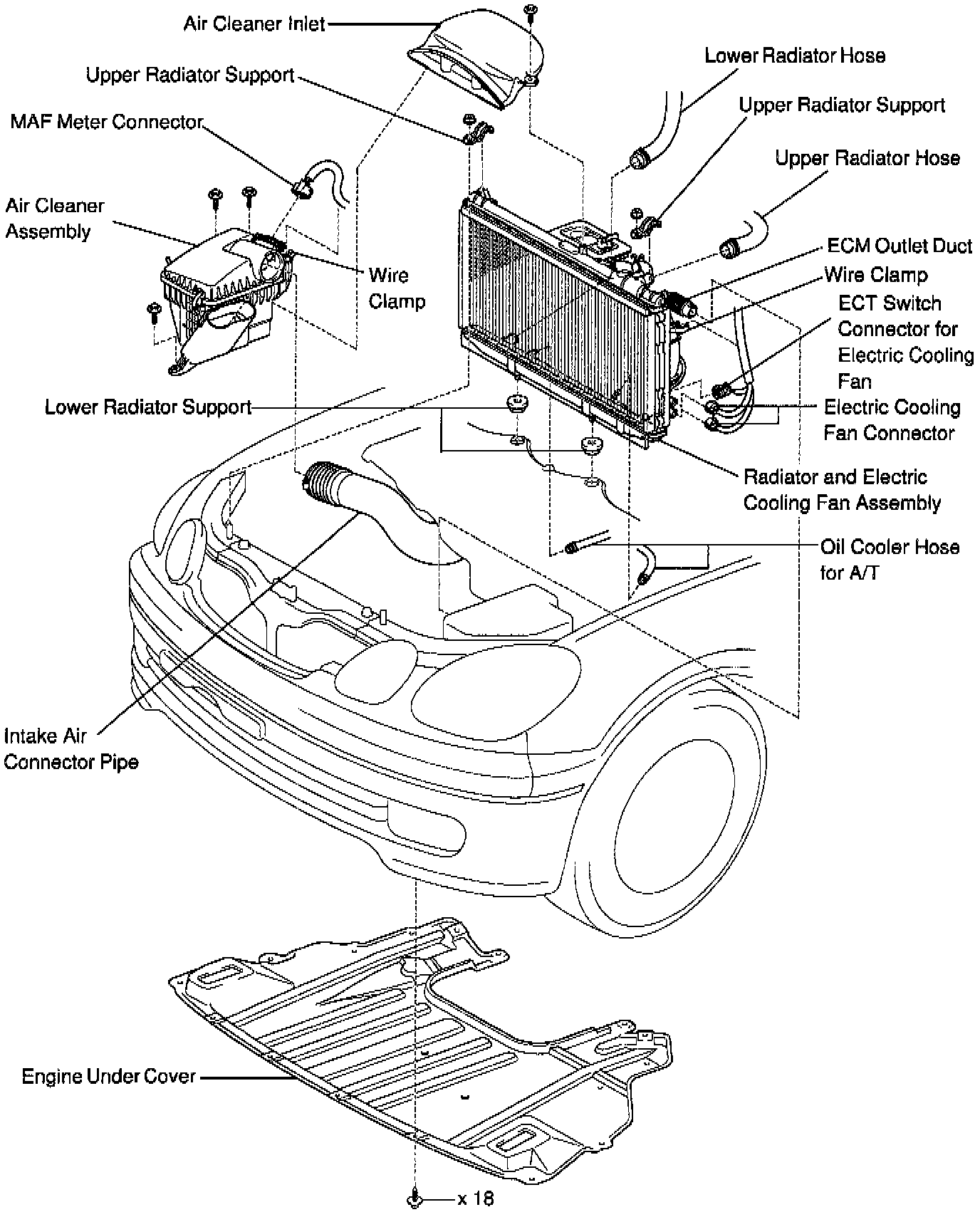

UNDERHOOD VIEW
Radiator, Cooling Fans Assb, Reservoir Hose:
RADIATOR AND
COOLING FAN
ASSEMBLY
RADIATOR
