Pinout Values and Diagnostic Parameters

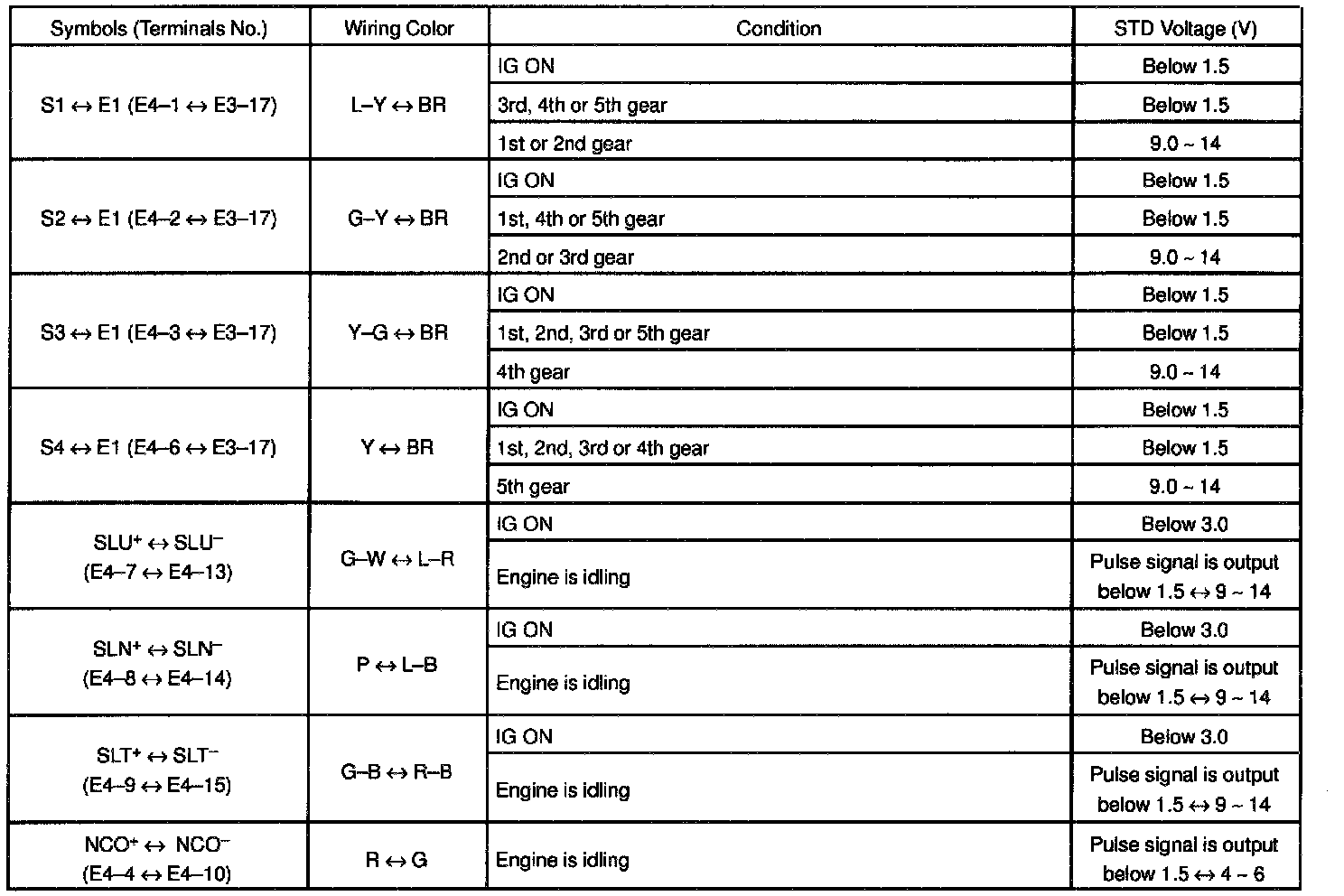

ECM Pinout Values Part 1 Of 3:

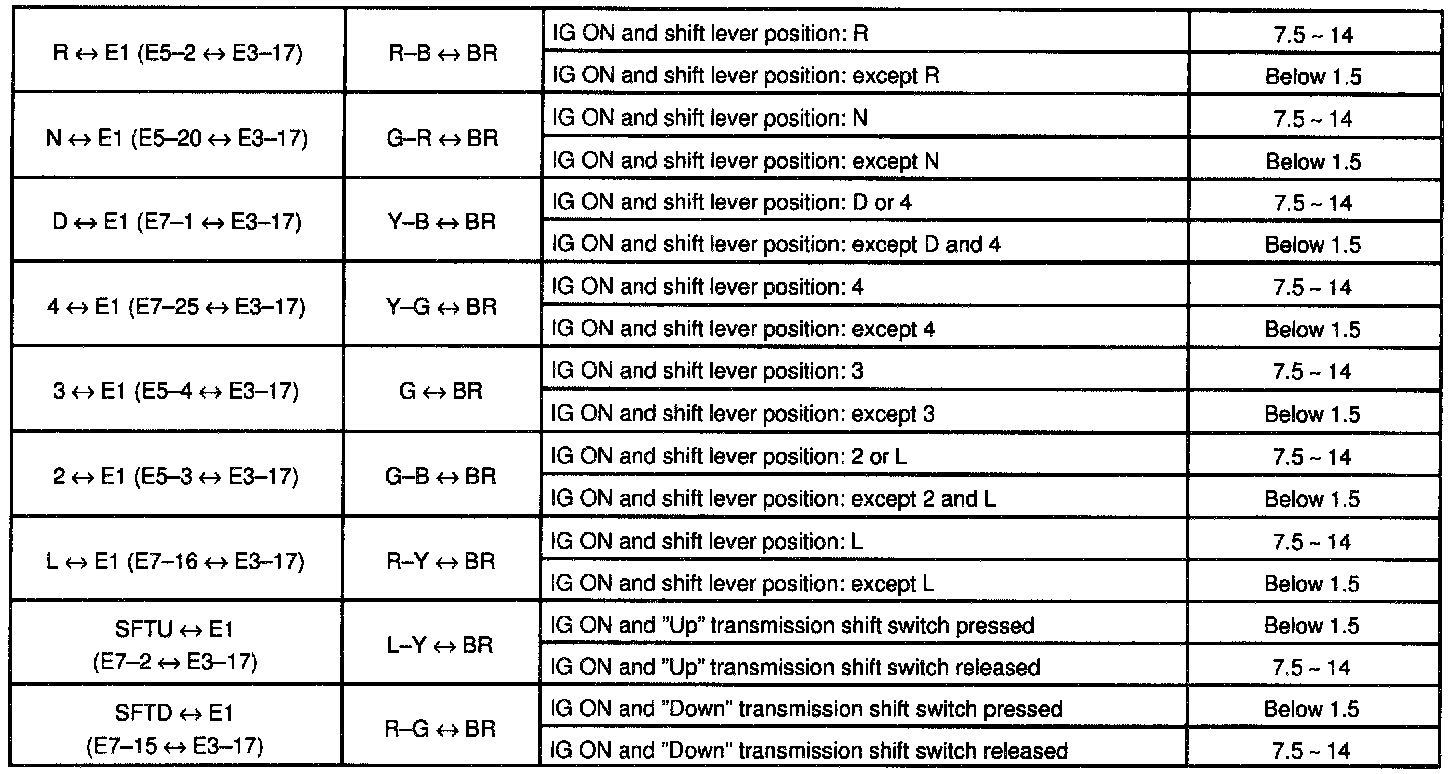

ECM Pinout Values Part 2 Of 3:
ECM Pinout Values Part 3 Of 3:
