Transmission Shift Switch Circuit

Transmission Shift Switch Circuit

CIRCUIT DESCRIPTION
When shifting the shift lever in M position, using the transmission shift switch, it is possible to shift in 2 - 5 positions.
Pressing "Up switch" once shifts up 1 position, "Down switch" once shifts down 1 position respectively.

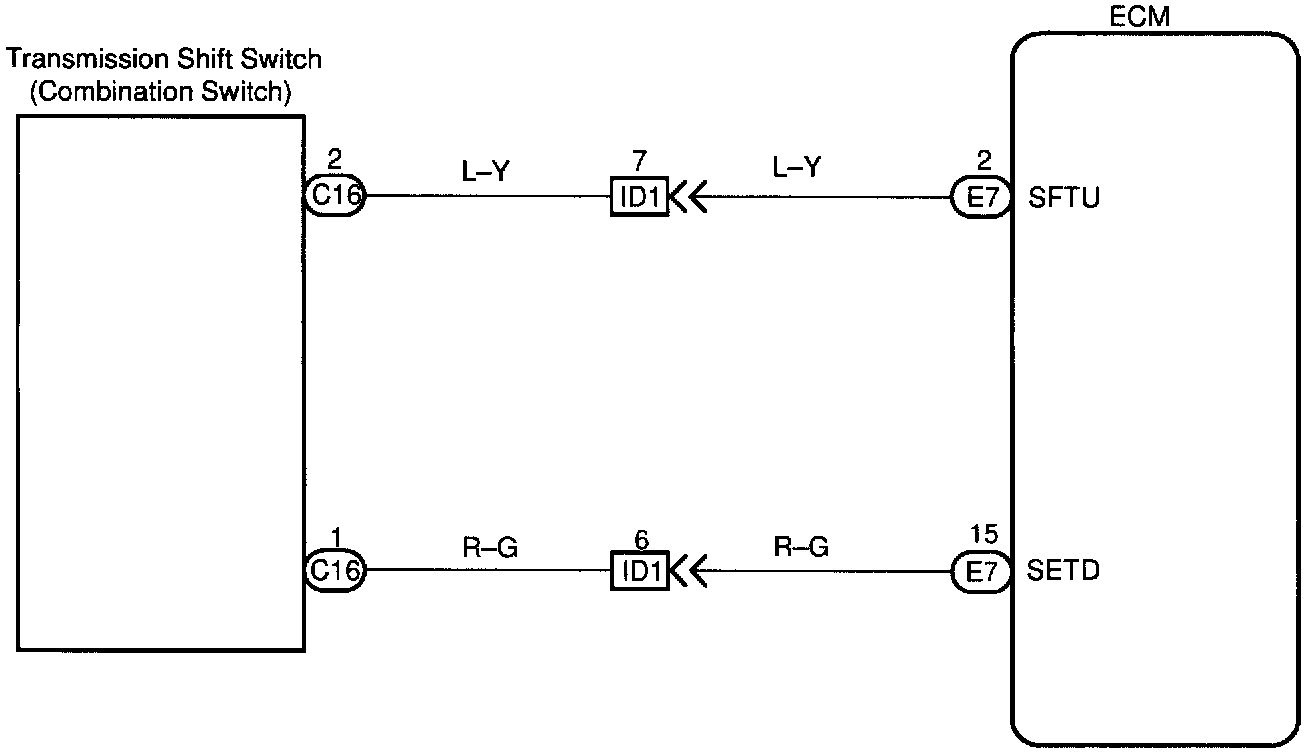

WIRING DIAGRAM

Step 1:

Step 2:

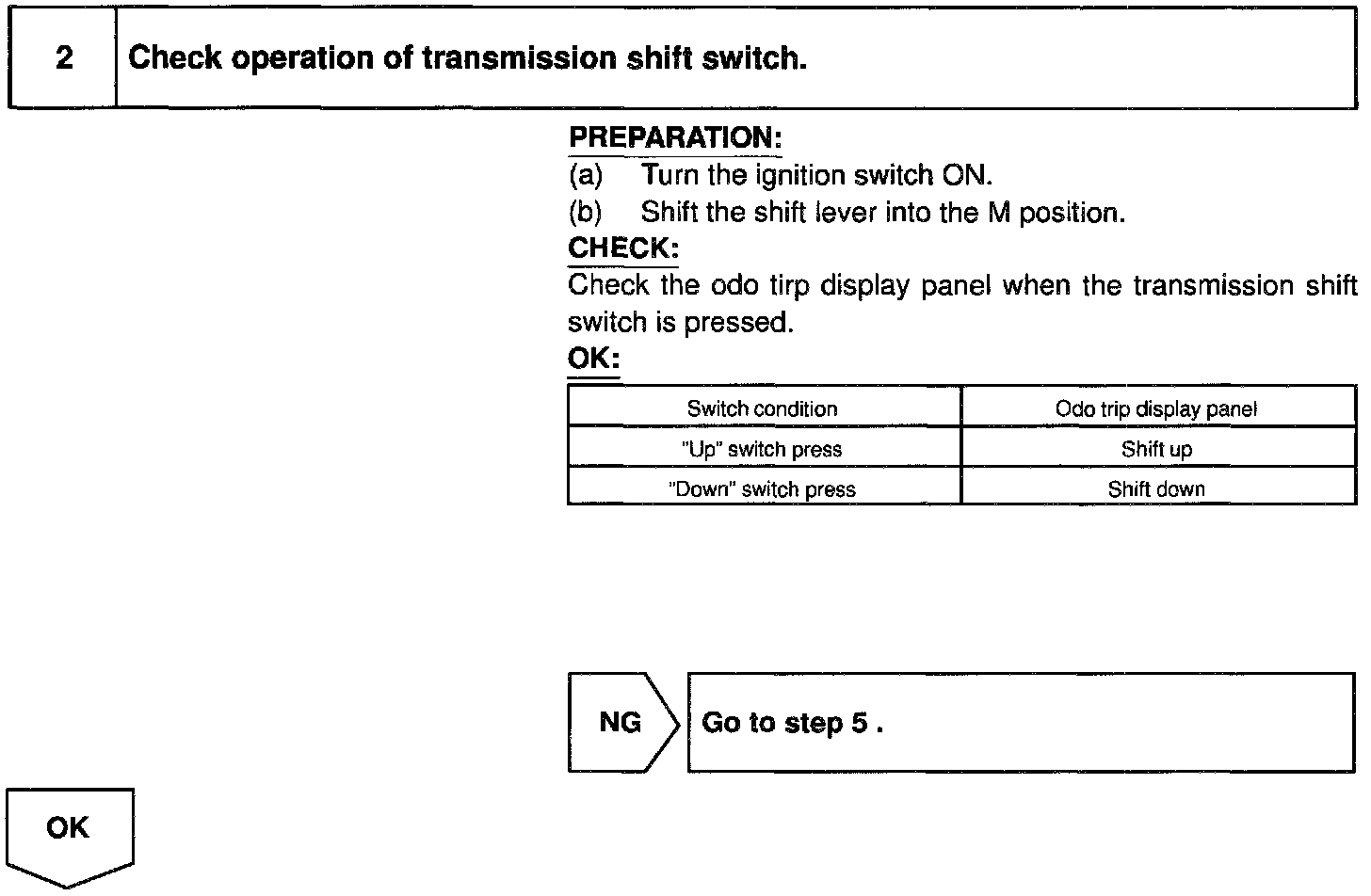

Step 3:

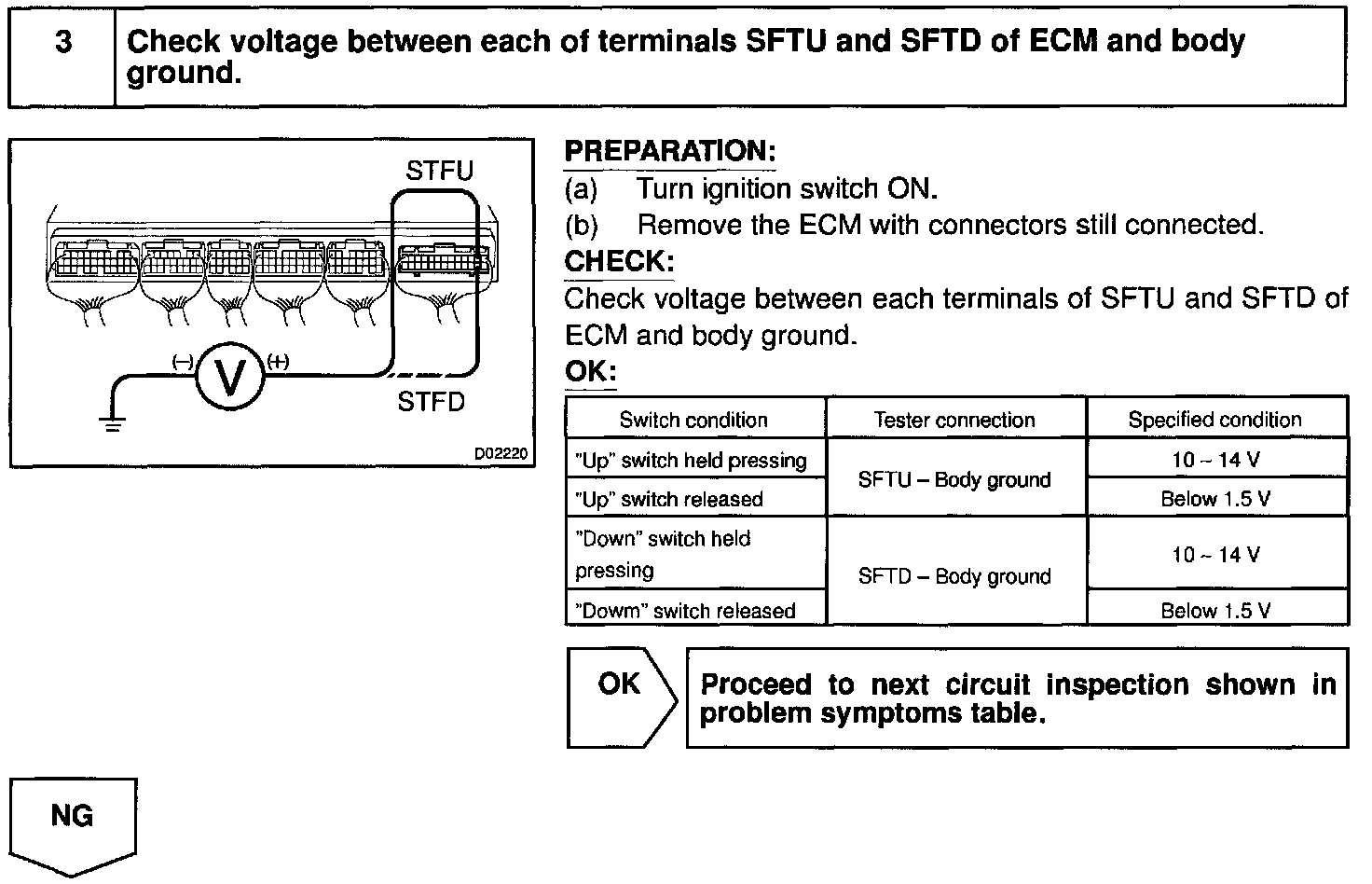

Step 4:

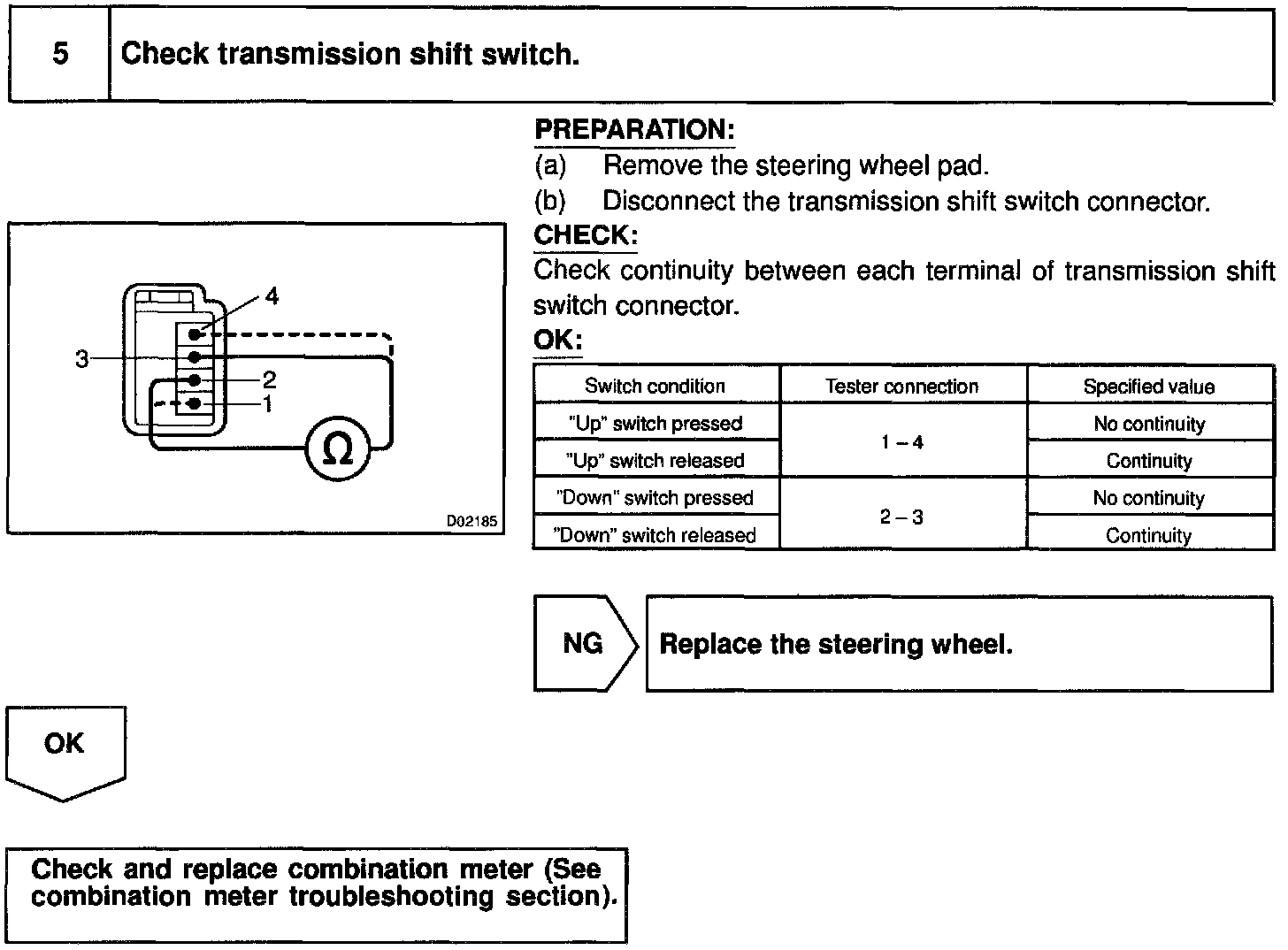

Step 5:

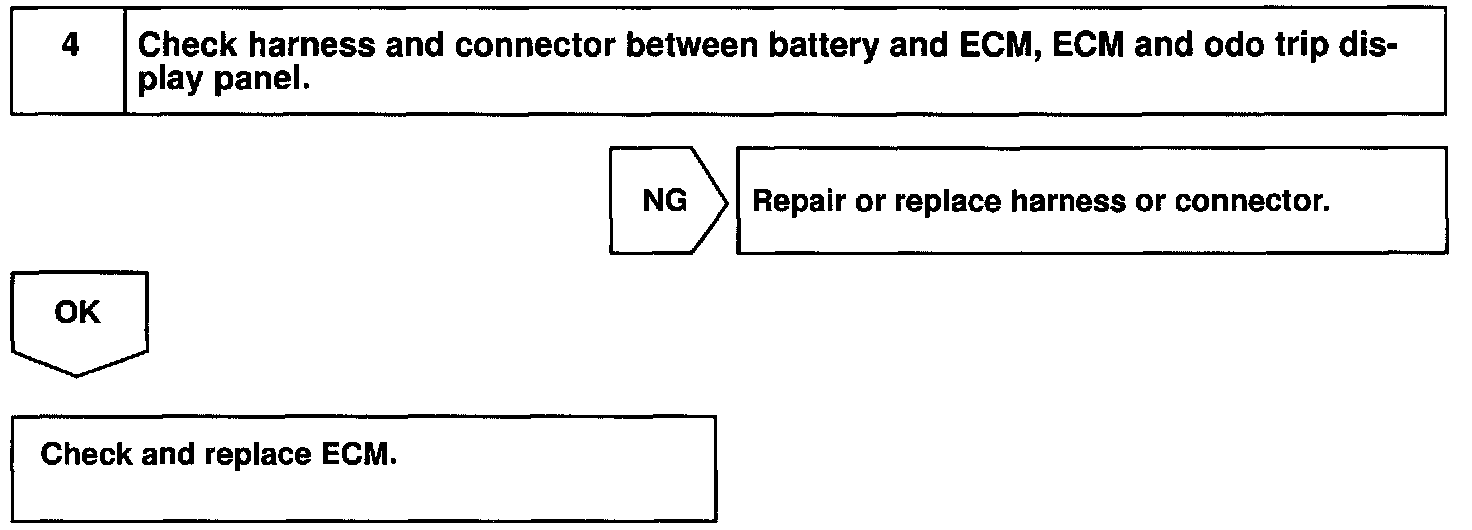

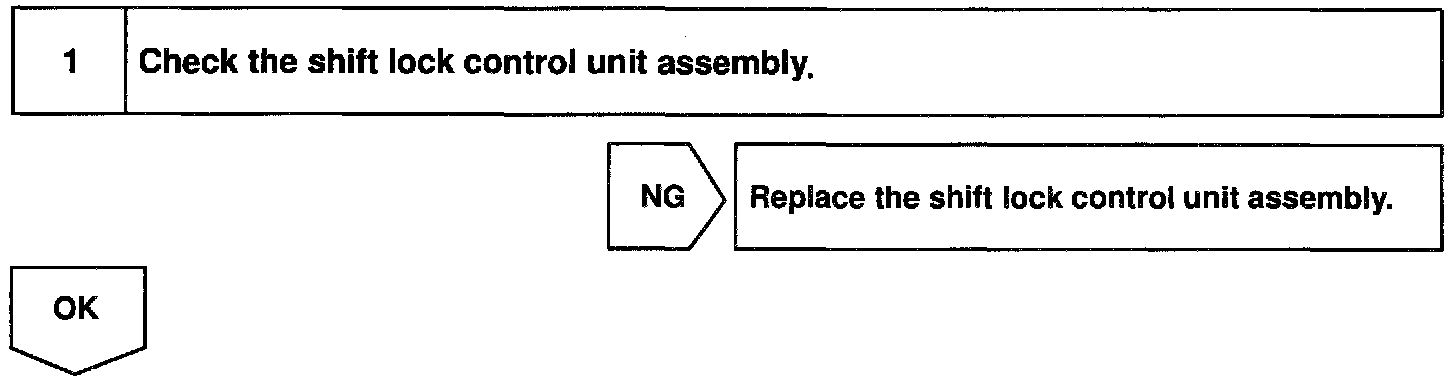

INSPECTION PROCEDURE
