Shift Interlock: Service and Repair

SHIFT LOCK SYSTEM





LOCATION


INSPECTION

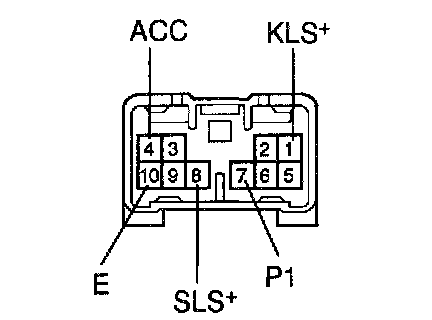

1. INSPECT SHIFT LOCK CONTROL ELECTRONIC CONTROL UNIT (ECU)
Using a voltmeter, measure the voltage at each terminal.

HINT: Do not disconnect the ECU connector.

2. INSPECT KEY INTERLOCK SOLENOID
a. Disconnect the solenoid connector.

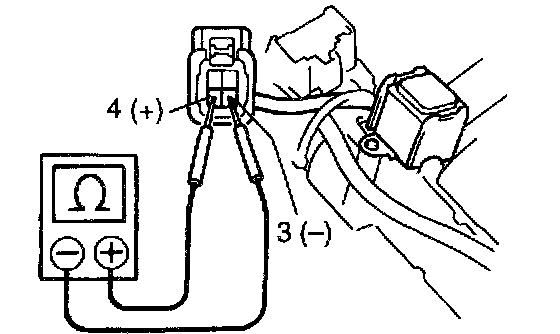

b. Using an ohmmeter, measure the resistance between terminals 3 and 4.

Standard resistance: 12 - 17 ohms

If the resistance value is not as specified, replace the solenoid.

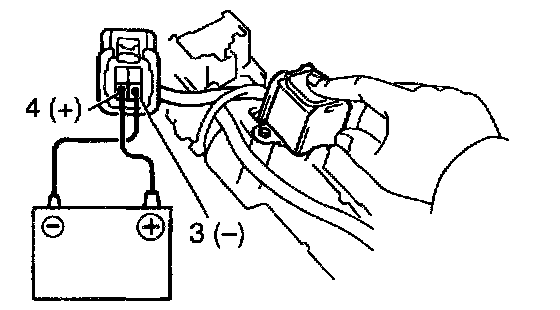

c. Touch the solenoid with your finger and check that the solenoid operation can be felt when battery voltage is applied intermittently to terminals 3 and 4.
If the operation is not as specified, replace the solenoid.
