Disposal

DISPOSAL
1. Fully extend shock absorber rod.





2. Drill hole to discharge gas from cylinder.

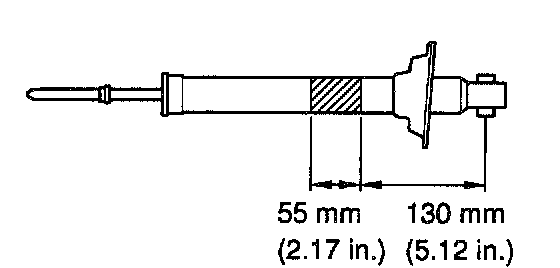

Using a drill, make a hole in the cylinder, as shown to discharge the gas inside.

CAUTION: The gas coming out is harmless, but be careful of chips which may fly up when drilling.
