Disassembly and Assembly

DISASSEMBLY
1. Remove dust deflector.
Using a screwdriver, remove the dust deflector.
2. Remove axle hub.





a. Remove the 2 bolts and nuts.
b. Mount the axle carrier in a vise.

HINT: Use a set of soft jaws in the vise to protect the axle carrier.

NOTICE: Do not tighten the vise too tight.





c. Using Special Service Tool (SST) 09520-00031 or equivalent, remove the axle hub from the axle carrier.
d. Remove the backing plate.

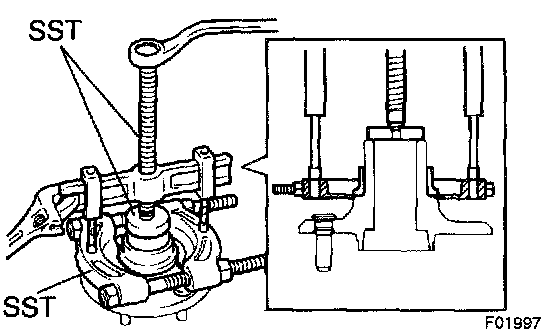

e. Using SST 09950-00020, 09950-60010 (09951-00480), 09950-40010 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04040), remove the bearing inner race from the axle hub.

NOTICE: Be careful not to the damage the axle hub.

3. Remove hub bearing.

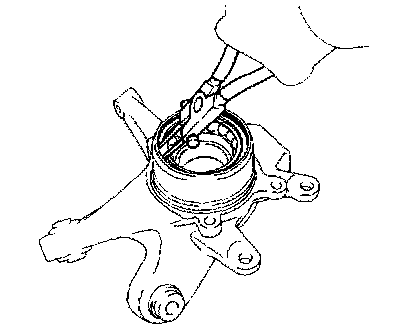

a. Using snap ring pliers, remove the snap ring.

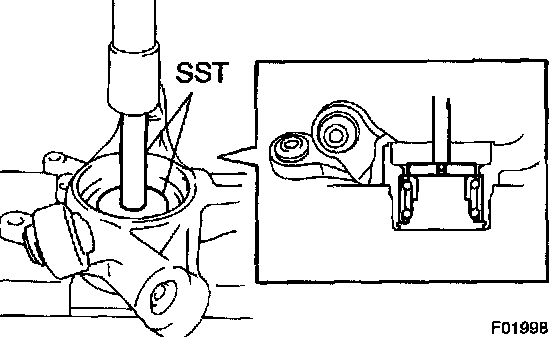

b. Using SST 09950-60010 (09951-00650), 09950-70010 (09951-07100) and a press, remove the hub bearing from the axle carrier.

REASSEMBLY





1. Install hub bearing.

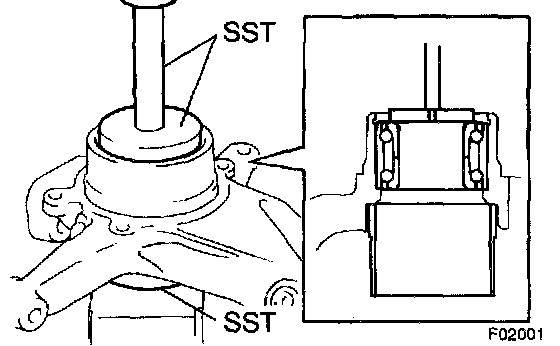

a. Using SST 09527-17011, 09950-60020 (09951-00810), 09950-70010 (09951-07100) and a press, install a new hub bearing to the axle carrier.
b. Using snap ring pliers, install the snap ring to the axle carrier.
2. Install axle hub.

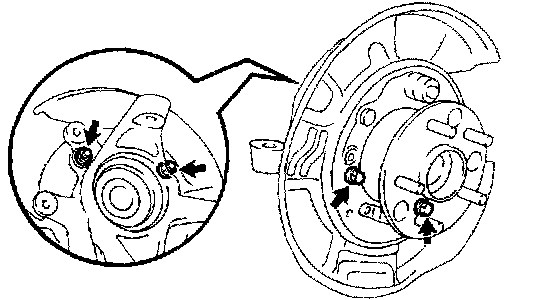

a. Install the backing plate with the 2 bolts and nuts.
Torque: 59 Nm (43 ft. lbs.)

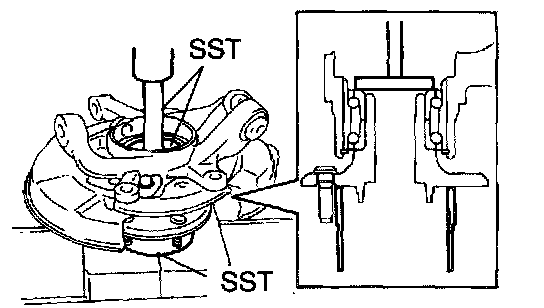

b. Using SST 09527-17011, 09950-60010 (09551-00650), 09950-70010 (09951-07100) and a press, install the axle hub to the axle carrier.





3. Install dust deflector.

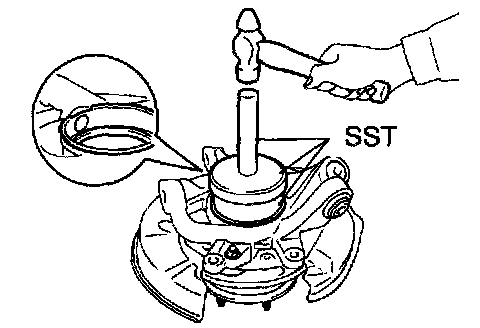

Using SST 09527-17011, 09950-60020 (09951-01030), 09950-70010 (09951-07100) and a hammer, install a new dust deflector to the axle carriers.

HINT: Align the speed sensor installation hole of dust deflector and that of axle carrier.
