Lower

REMOVAL
1. Remove rear wheel.
Torque: 103 Nm (76 ft. lbs.)
2. Remove rear fender apron seal.

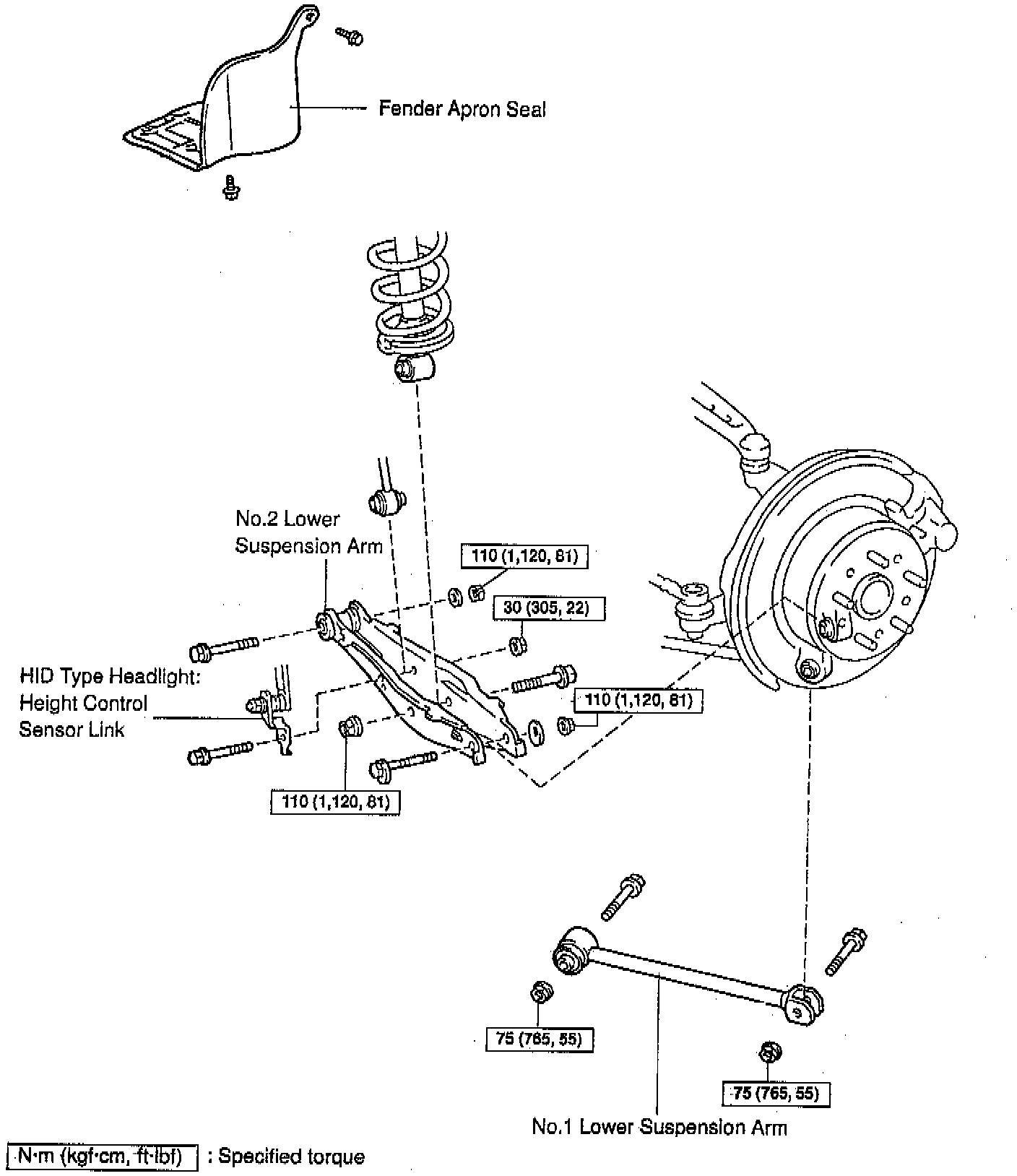

3. Remove No.1 lower suspension arm.

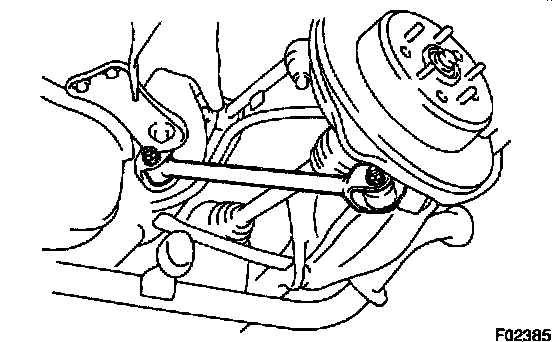

Remove the 2 bolts, nuts, and No.1 lower suspension arm
Torque: 75 Nm (55 ft. lbs.)

HINT: At the time of installation, after stabilizing the suspension, torque the nuts.

4. Remove No.2 lower suspension arm.

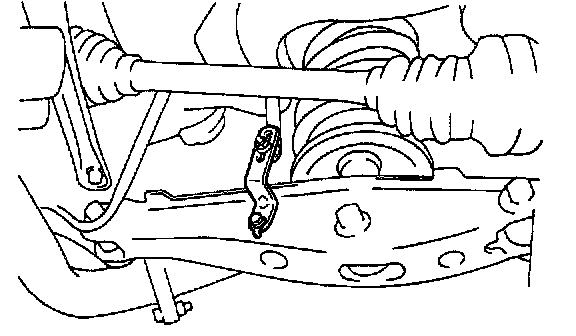

a. Halogen type headlight: Remove the bolt, nut and disconnect the stabilizer bar link from the No.2 lower suspension arm.
Torque: 30 Nm (22 ft. lbs.)





b. High Intensity Discharge (HID) type headlight: Remove the bolt, nut and disconnect the stabilizer bar link and the height control link from the No.2 lower suspension arm.
Torque: 30 Nm (22 ft. lbs.)

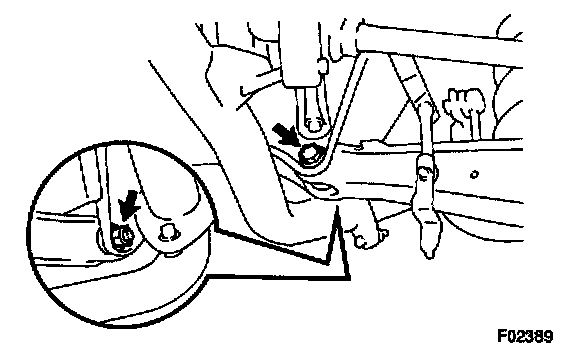

c. Remove the bolt, nut and disconnect the shock absorber from the No.2 lower suspension arm.
Torque: 110 Nm (81 ft. lbs.)

HINT: At the time of installation, after stabilizing the suspension torque the nut.

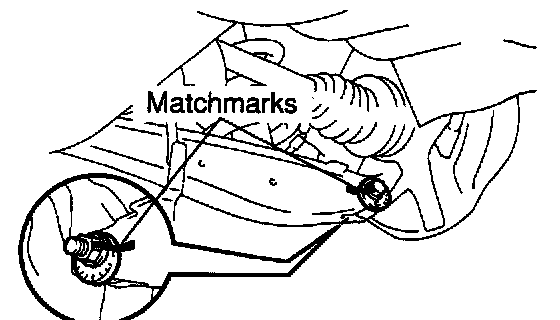

d. Place matchmarks on the adjusting cam and No.2 lower suspension arm
e. Remove the nuts adjusting cam No.2 and adjusting cam No.1.
Torque: 110 Nm (81 ft. lbs.)

HINT: At the time of installation, after stabilizing the suspension, torque the nut.

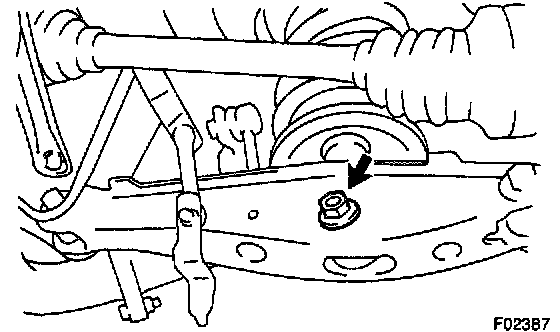

f. Remove the bolt, nut, washer and No.2 lower suspended arm.
Torque: 110 Nm (81 ft. lbs.)

HINT: At the time of installation, after stabilizing the suspension, torque the nut.

INSTALLATION
Installation is in the reverse order of removal. After installation, check rear wheel alignment.
