Upper

REMOVAL
1. Remove front wheel.
Torque: 103 Nm (76 ft. lbs.)
2. Remove front smock absorber.

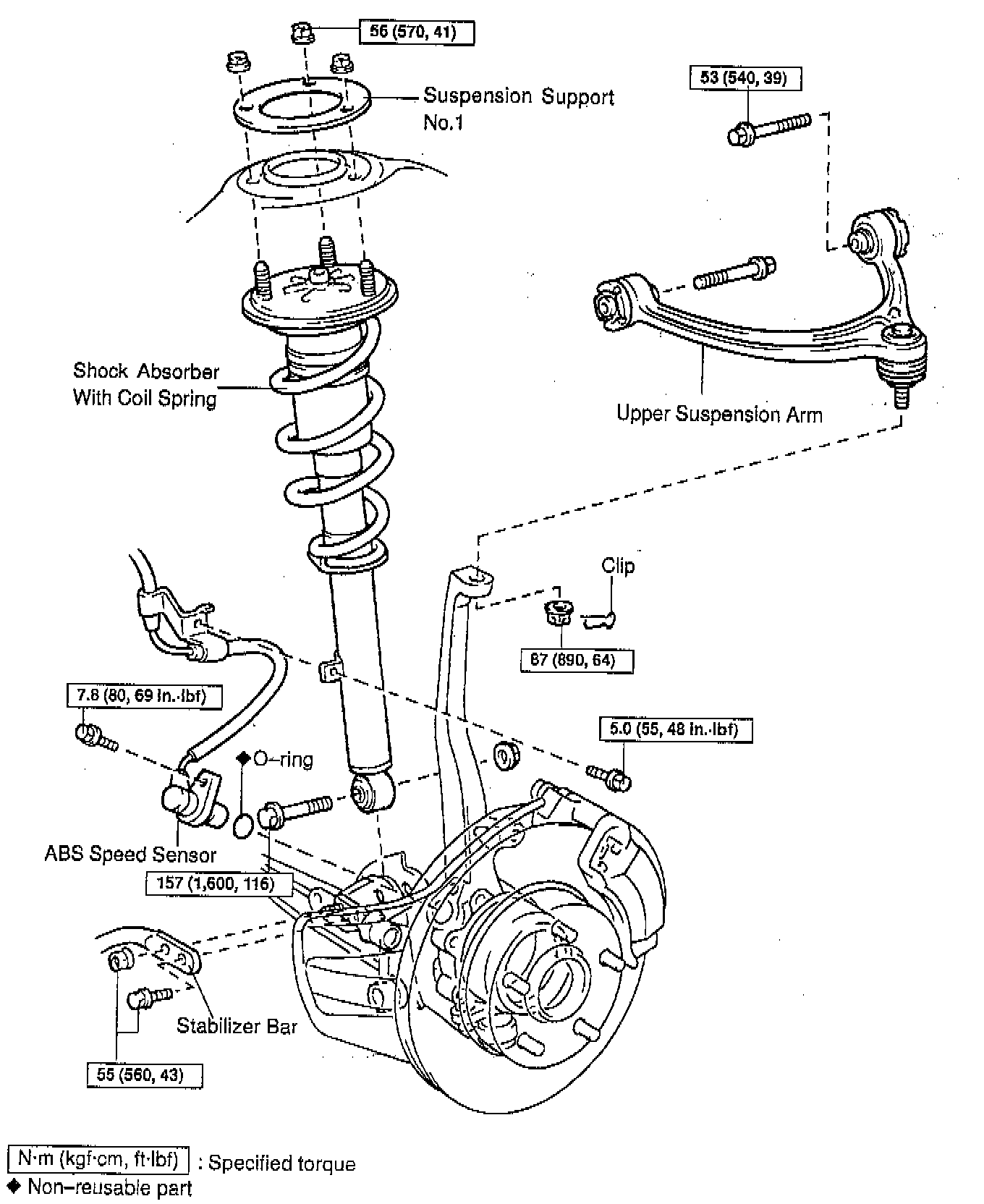

3. Remove upper suspension arm.

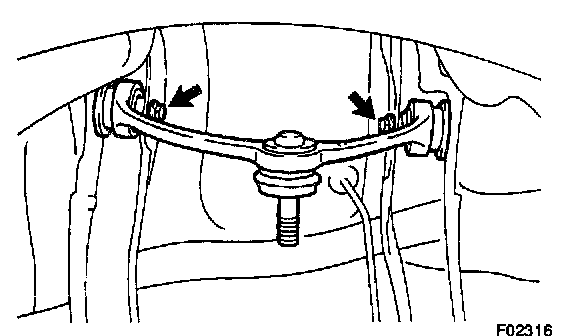

Remove the 2 bolts and upper suspension arm.
Torque: 53 Nm (39 ft. lbs.)

HINT: At the time of installation, after stabilizing the suspension, torque the bolts.

INSTALLATION
Installation is in the reverse order of removal. After installation, check ABS speed sensor and front wheel alignment.
