Tilt Motor Circuit

Tilt Motor Circuit

CIRCUIT DESCRIPTION
The ECU provided both +B and ground for the tilt motor.
Reversing polarity of the applied voltage reverses the motor.

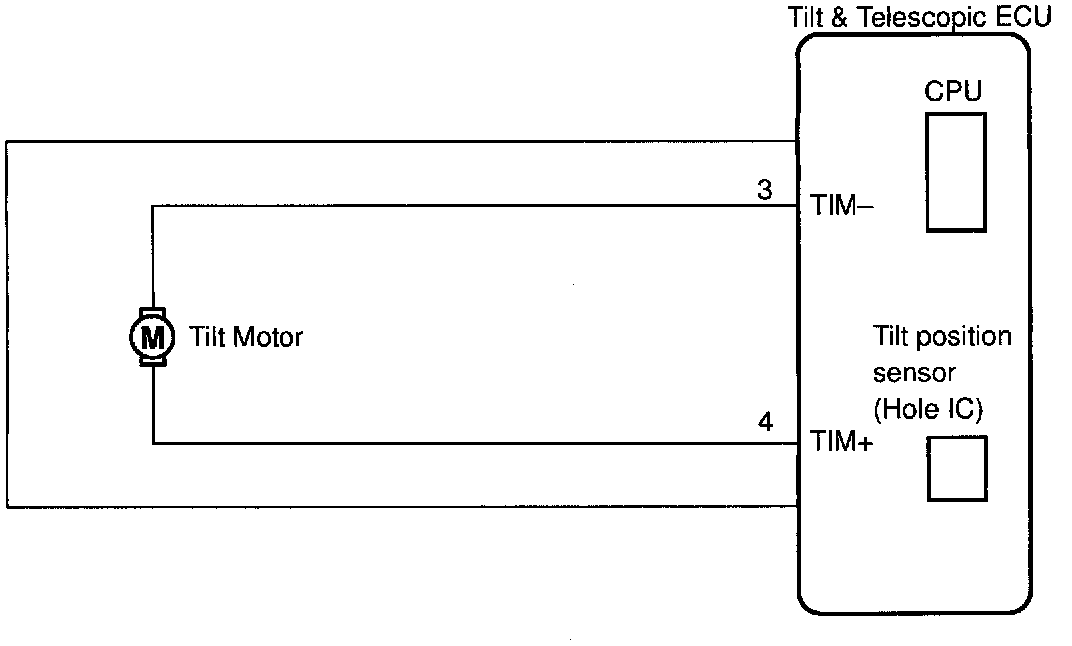

WIRING DIAGRAM

Step 1:

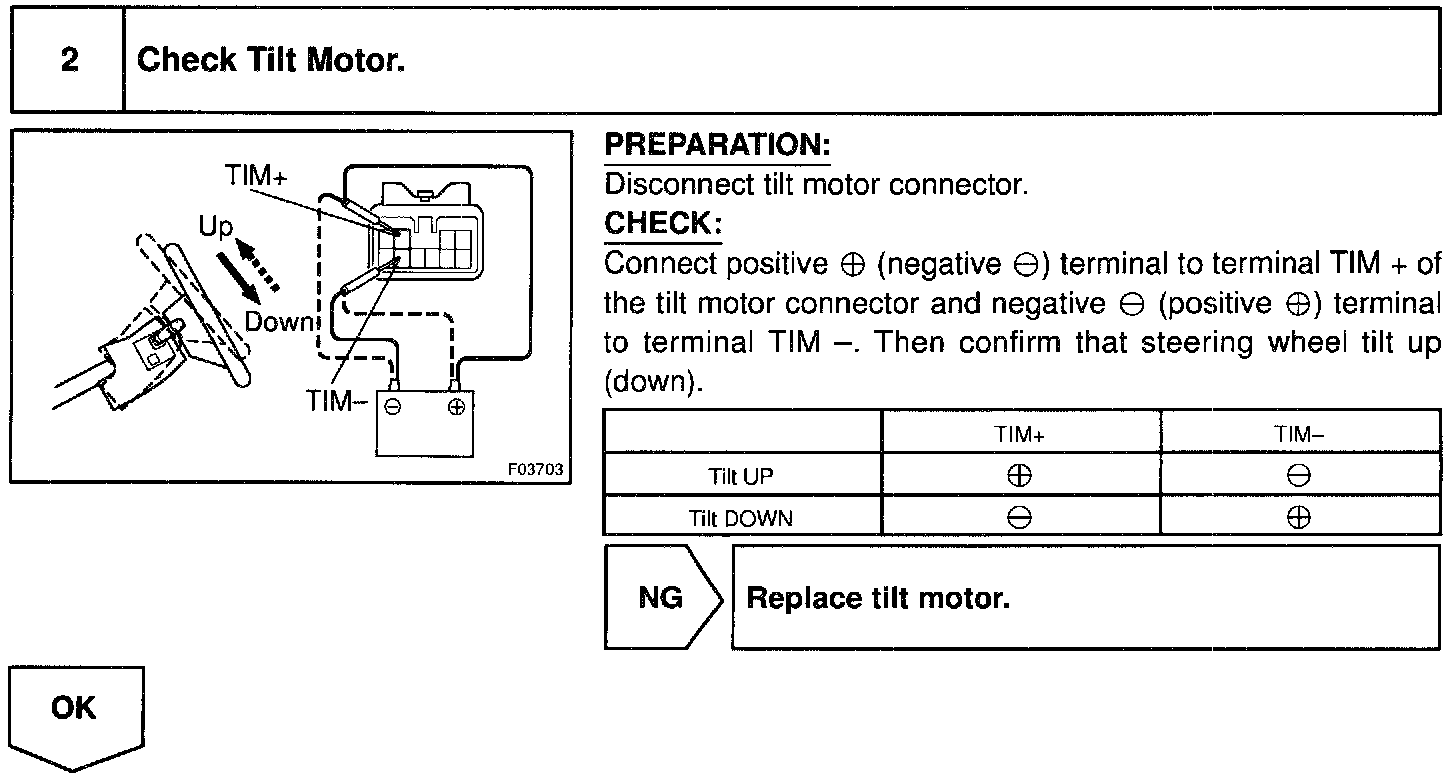

Step 2:

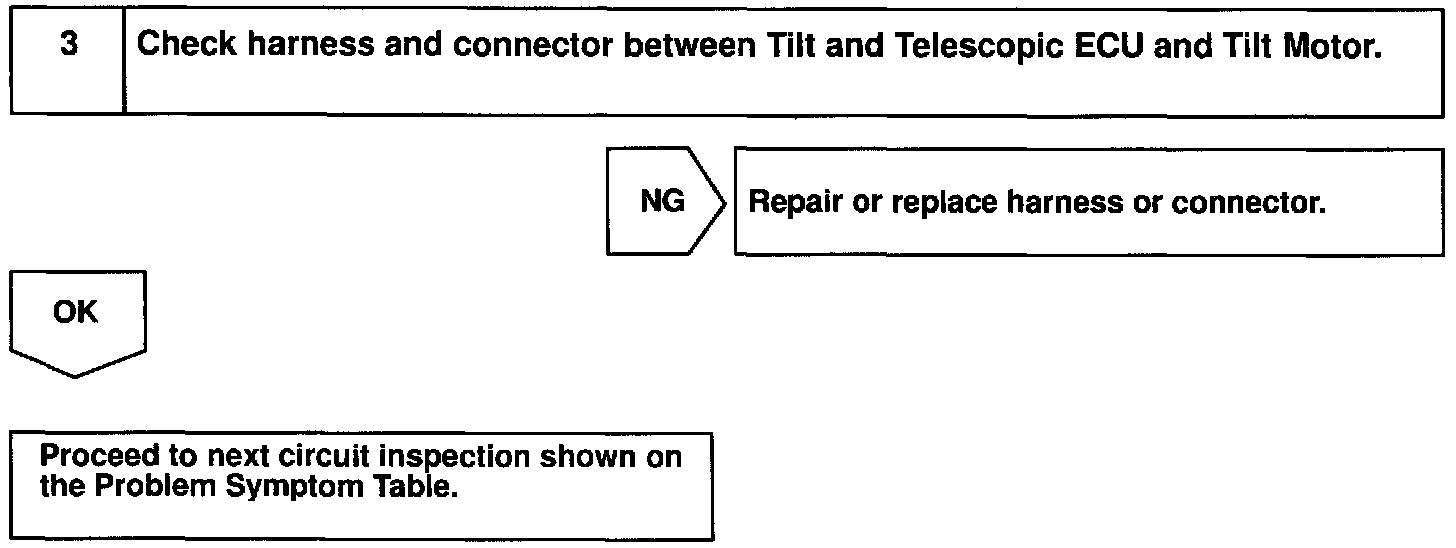

Step 3:

INSPECTION PROCEDURE
In case of using LEXUS hand-held tester start inspection from step 1
In case of not using LEXUS hand-held tester, start inspection from step 2.
