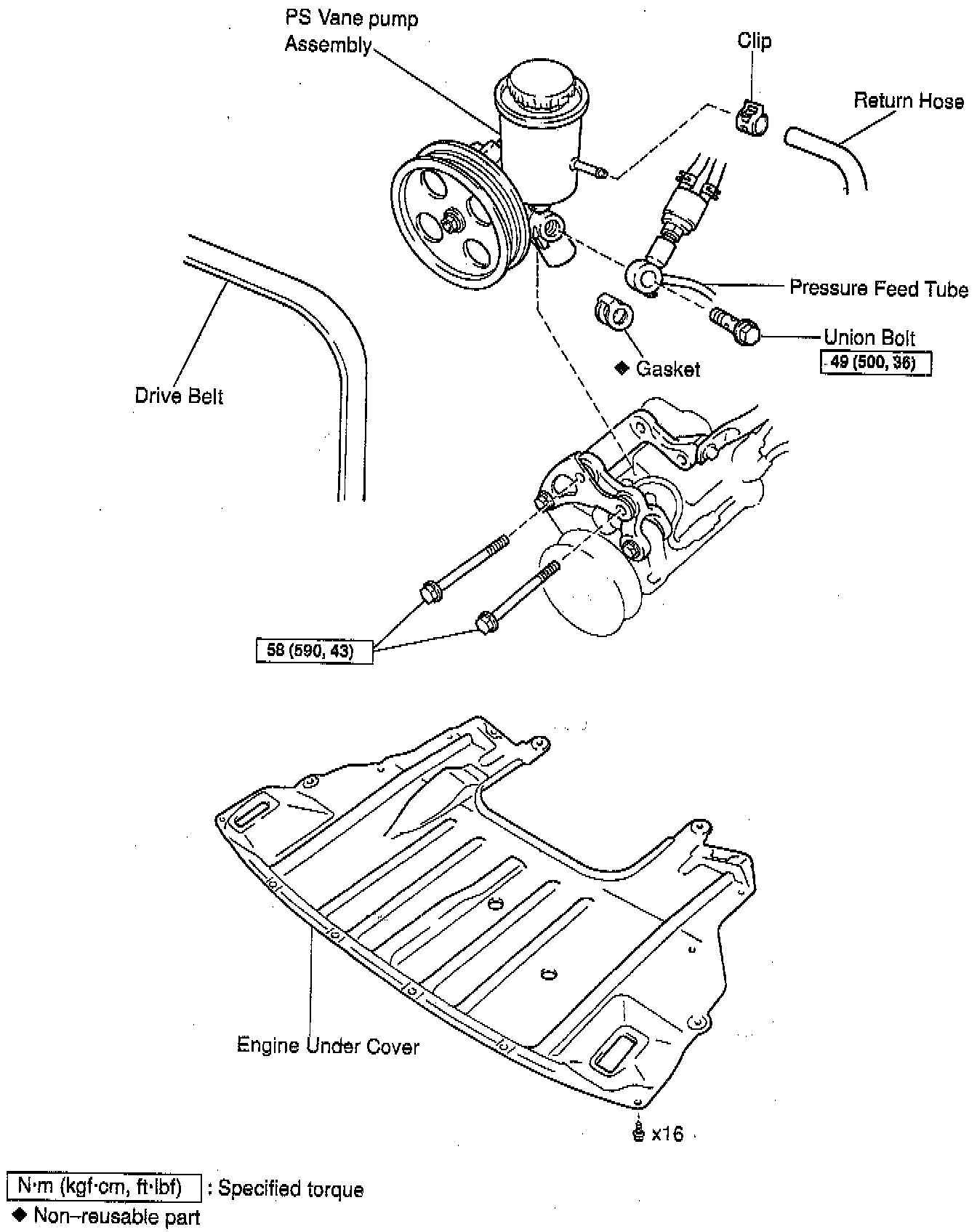

Removal and Installation

REMOVAL





1. Remove engine under cover.
Remove the 16 bolts.
2. Remove drive belt.

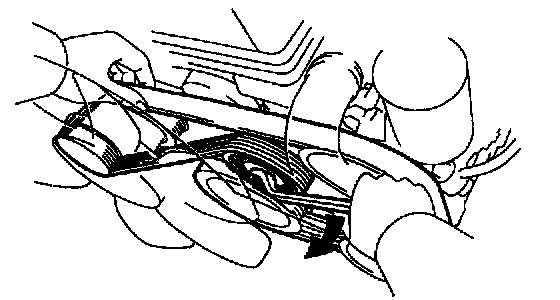

Loosen the drive bolt tension by turning the drive belt tensioner clockwise, and remove the belt.
3. Remove return hose.
Remove the clip and disconnect the hose.
4. Remove pressure feed tube.
Remove the union bolt and gasket.





5. Remove power steering vane pump assembly.

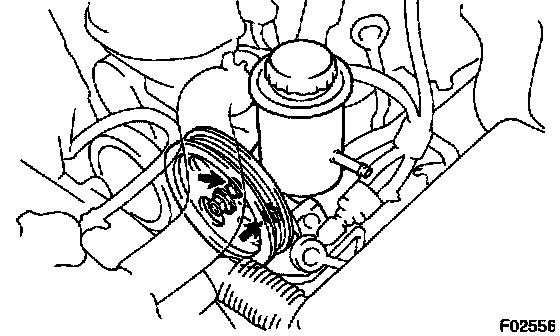

a. Disconnect the connector.
b. Remove the 2 bolts.

INSTALLATION





1. Install power steering vane pump assembly.
a. Torque the 2 bolts.
Torque: 58 Nm (43 ft. lbs.)
b. Connect the connector.





2. Connect pressure feed tube.
Torque the union bolt over a new gasket.

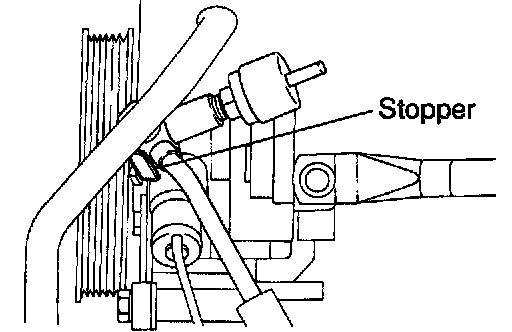

HINT: Make sure that the stopper of the tube is touching the power steering vane pump body, as shown, before torquing the bolt.

Torque: 49 Nm (36 ft. lbs.)
3. Connect return hose.
Connect the hose with the clip.





4. Install drive belt.

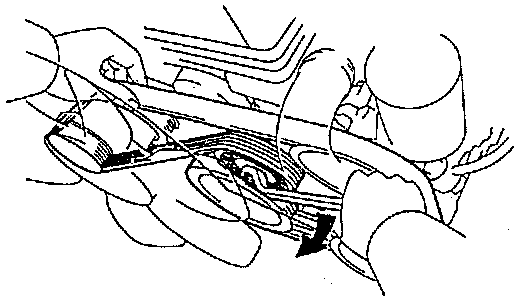

Loosen the drive belt tension by turning the drive belt tensioner clockwise, and install the belt.
5. Install engine under cover.
Tighten the 16 bolts.
6. Bleed power steering system.
