Removal and Installation

NOTE:
^ Before changing the starter, check the following items again:
^ Connector connection
^ Accessory installation, e.g.: theft deterrent system










COMPONENTS

REMOVAL

REMOVE STARTER




a. Remove the rubber cap and nut, and disconnect the starter wire.
b. Disconnect the starter connector.

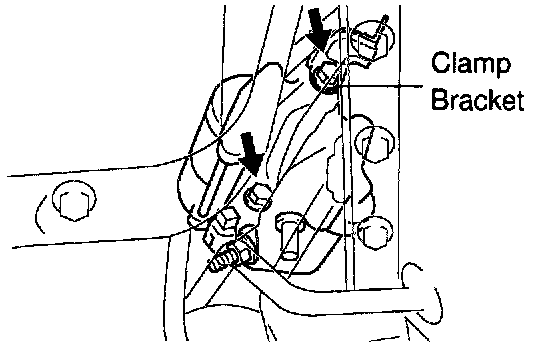

c. Remove the 2 bolts and starter.
Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

HINT: At time of the installation, place refer to the following item. When installing the upper bolt, tighten it together with the clamp bracket.

INSTALLATION
Installation is in the reverse order of removal.
