Alternator Bearing: Service and Repair

1. REPLACE FRONT BEARING

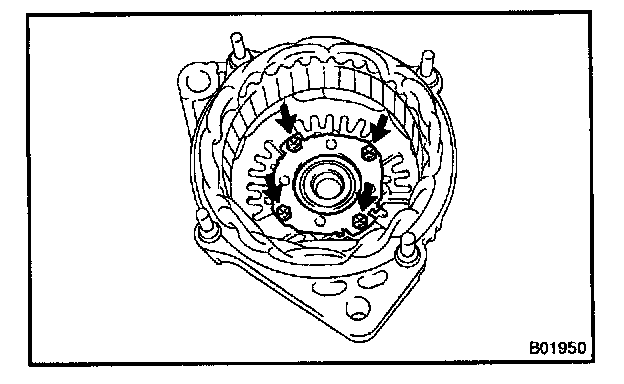

a. Remove the 4 screws, bearing retainer and bearing.




b. Using a socket wrench and press, press out the bearing.




c. Using SST and a press, press in a new bearing.
SST 09950-60010 (09951-00500)
d. Install the bearing retainer with the 4 screws.
Torque: 3.0 N.m (31 kgf.cm 27 in..lbf)

2. REPLACE REAR BEARING




a. Using SST, remove the bearing cover (outside) and bearing.
SST 09820-00021

NOTE: Be careful not to damage the fan.




b. Remove the bearing cover (inside).
c. Place the bearing cover (inside) on the rotor




d. Using SST and a press press in a new bearing.
SST 09820-00030




e. Using SST, push in the bearing cover (outside).
SST 09280-76010
