Speed Sensor, Front

REMOVAL

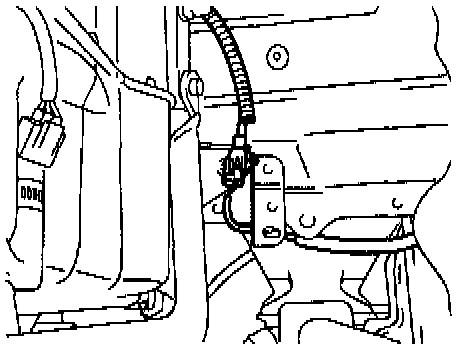

1. Disconnect speed sensor connector.





2. Remove speed sensor.

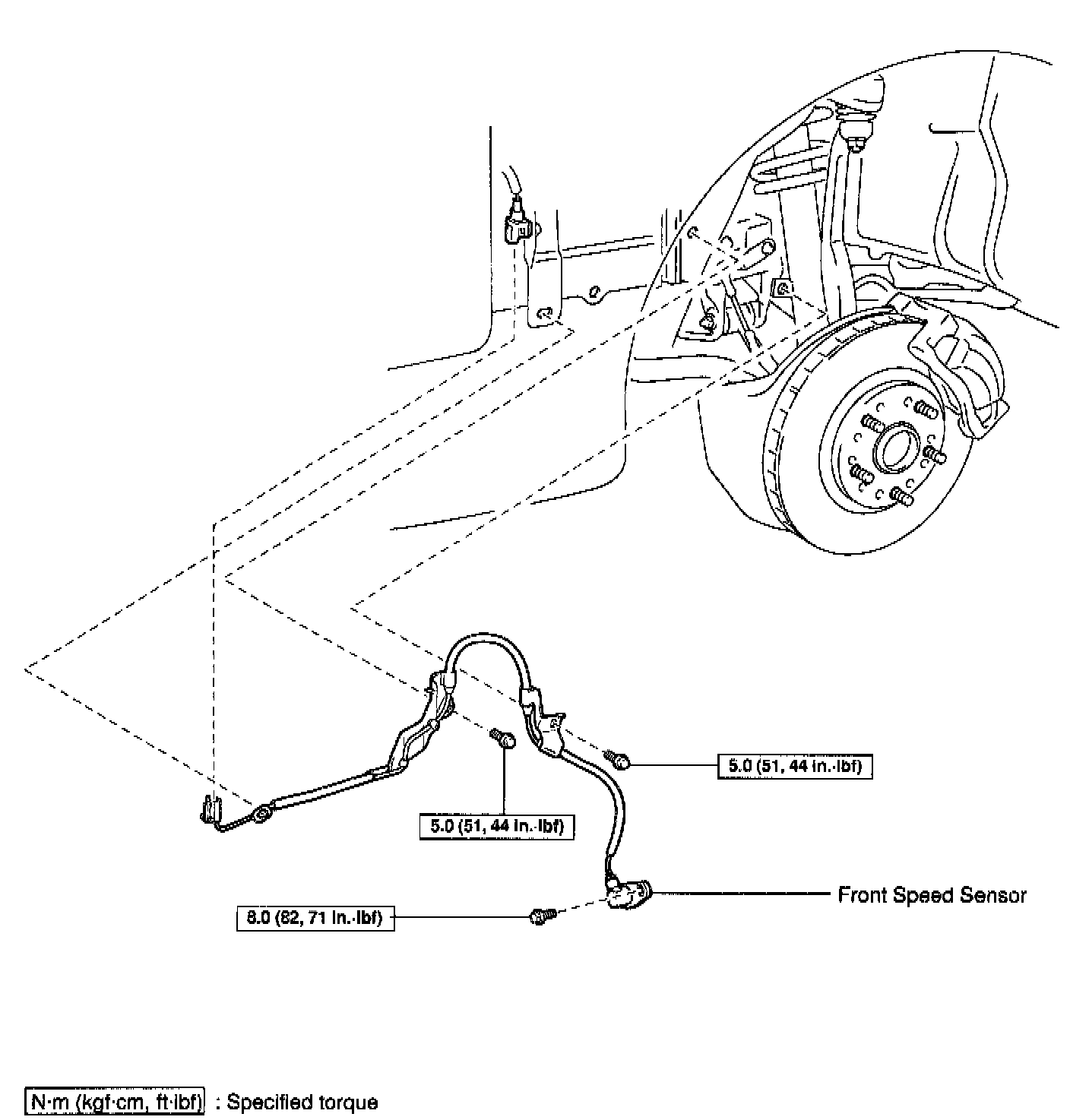

a. Remove the resin clip and 2 clamp bolts holding the sensor harness to the body.
Torque: 5.0 Nm (44 inch lbs.)

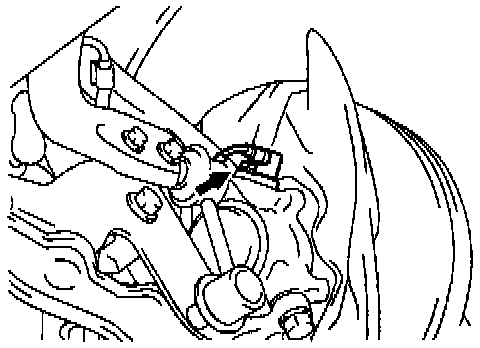

b. Remove the bolt and speed sensor from the steering knuckle.
Torque:8.0 Nm (71 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
