DISCONNECTION OF CONNECTORS FOR STEERING WHEEL PAD (with AIRBAG) AND FRONT PASSENGER AIRBAG ASSEMBLY

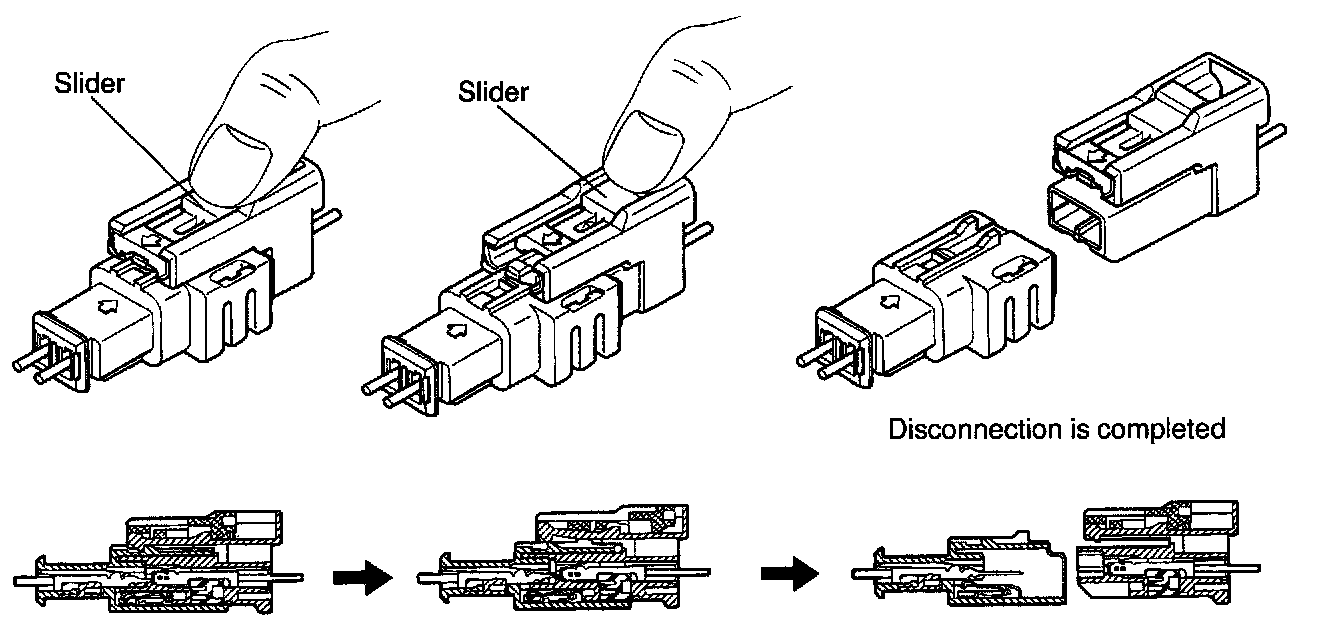

a. Place a finger on the slider
b. Slide the slider to release lock.
c. Disconnect the connector.

CONNECTION OF CONNECTORS FOR STEERING WHEEL PAD (with AIRBAG) AND FRONT PASSENGER AIRBAG ASSEMBLY

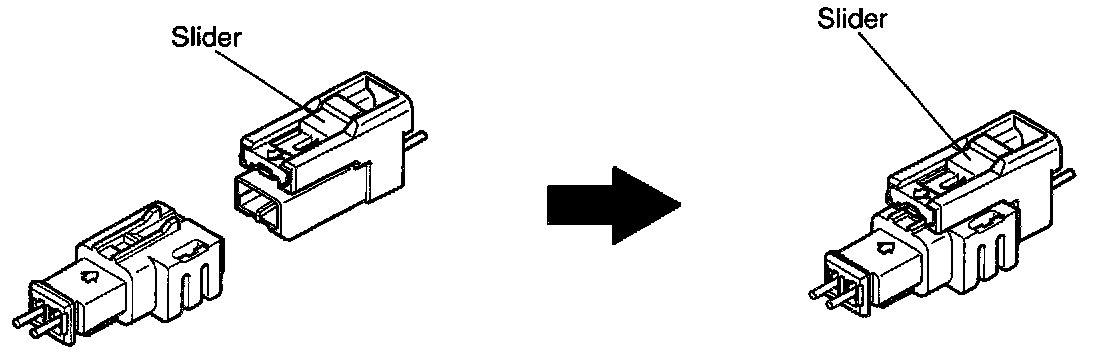

a. Align the male connector and the female connector in the same direction as shown in the illustration, fit in them without rubbing.
b. Make sure to insert until the connectors are locked. After fitting in, pull them lightly to check that they are locked. (When locked, make sure that the outer returns to its original position and sound at the time of fitting in can be heard.)

HINT:
^ As the slider slides, do not touch it.
^ Be careful not to deform the release board. If the release board is deformed, replace it with a new one.
