Mirror Switch Circuit


Mirror Switch Circuit

CIRCUIT DESCRIPTION
This circuit detects the conditions of the mirror selection switch and the mirror position switch.

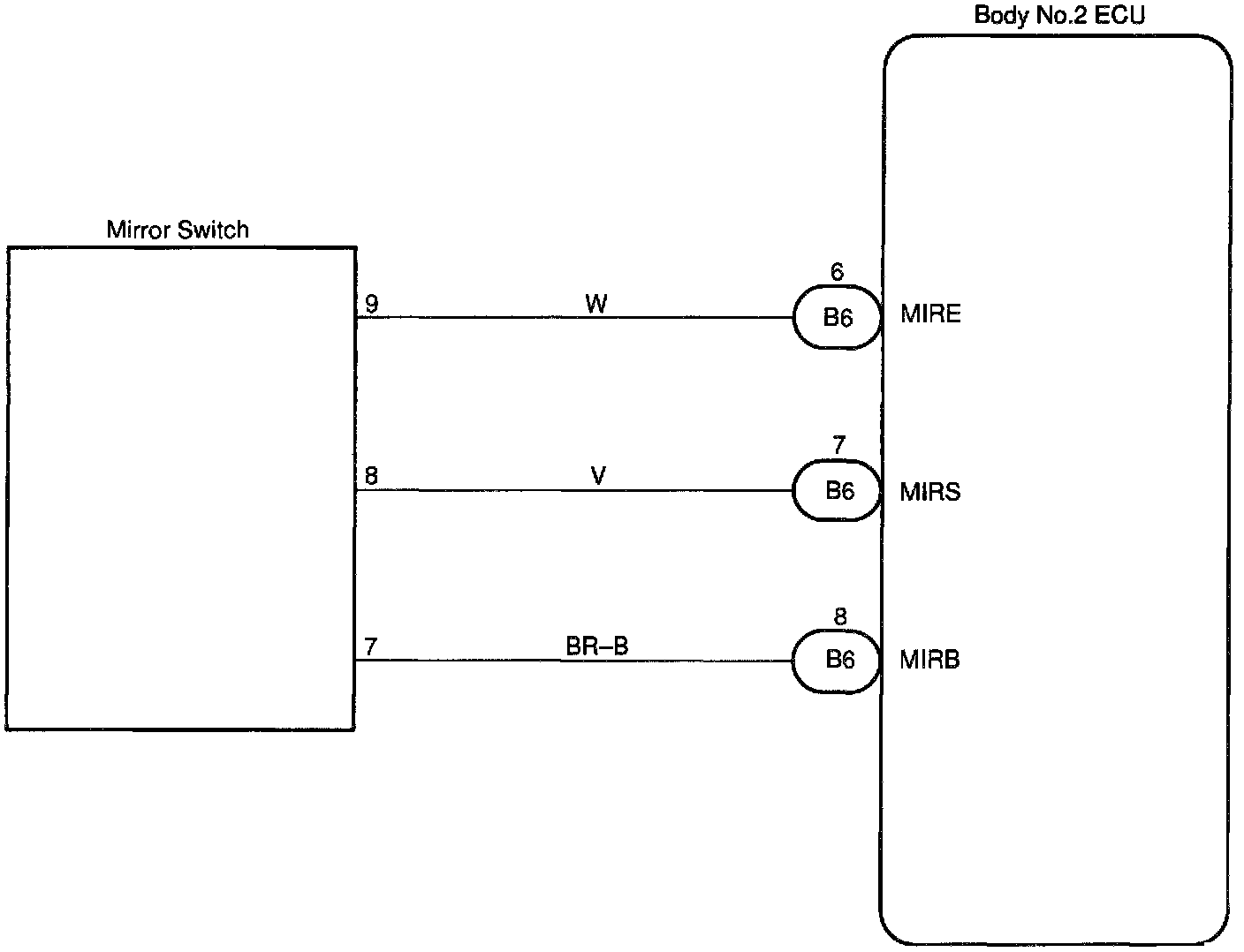

WIRING DIAGRAM

Step 1:




Step 2:




Step 3:

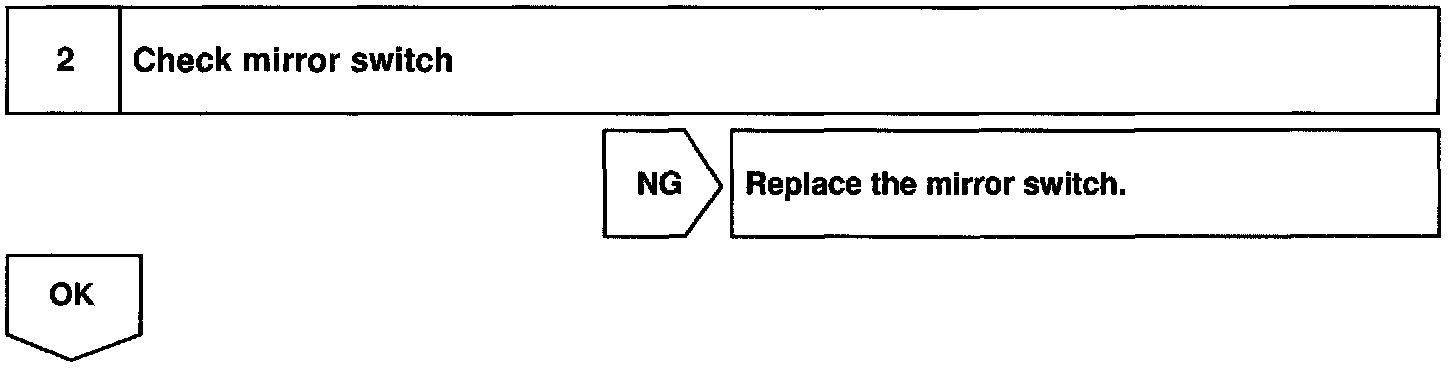

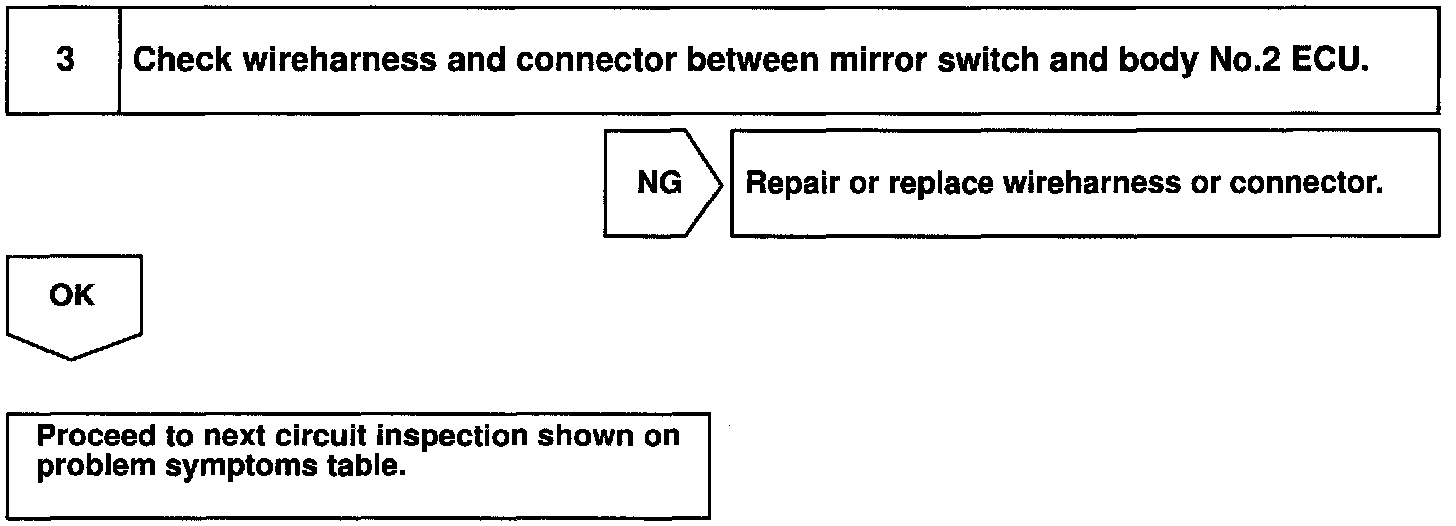

INSPECTION PROCEDURE

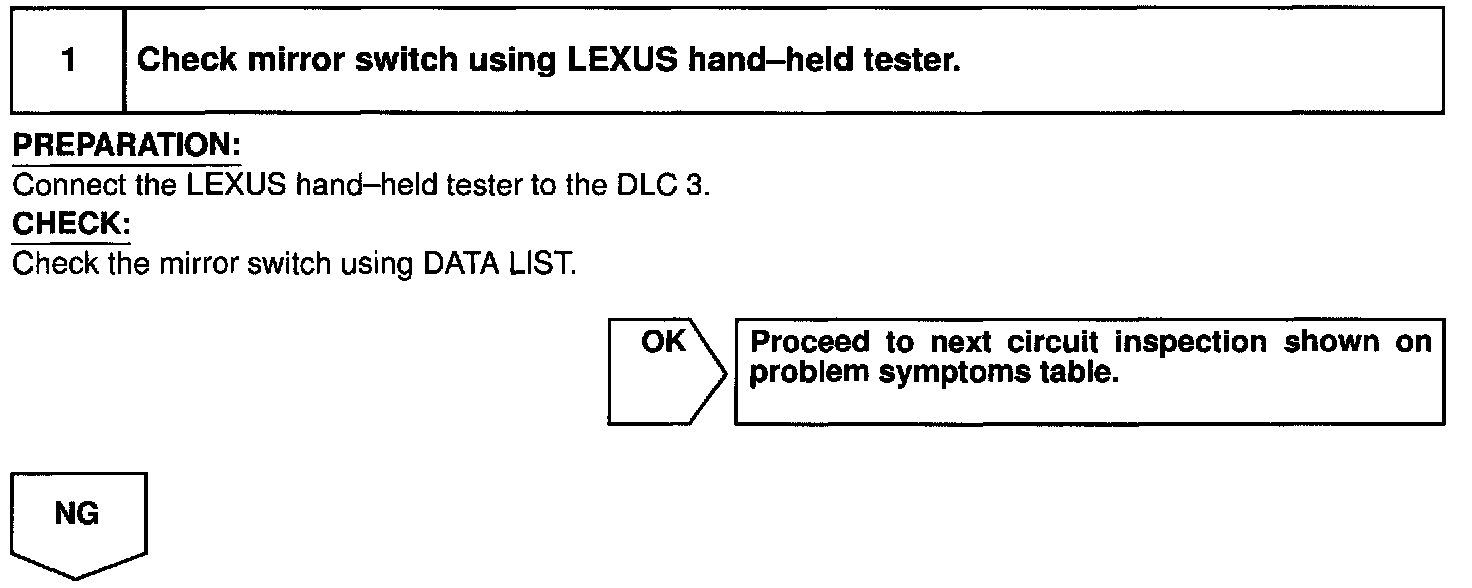

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
