Camshaft Position Sensor: Testing and Inspection

INSPECTION

INSPECT CAMSHAFT POSITION SENSOR
(a) Disconnect the camshaft position sensor connector.

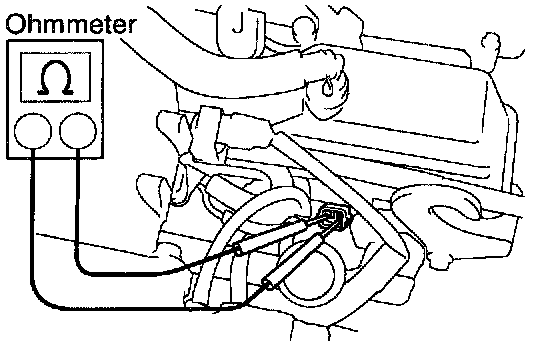

(b) Using an ohmmeter, measure the resistance between terminals.





Resistance:
If the resistance is not as specified, replace the camshaft position sensor.

(c) Reconnect the camshaft position sensor connector.
