Ignition Coil: Testing and Inspection

INSPECTION

INSPECT IGNITION COILS
(a) Remove the ignition coil assembly.

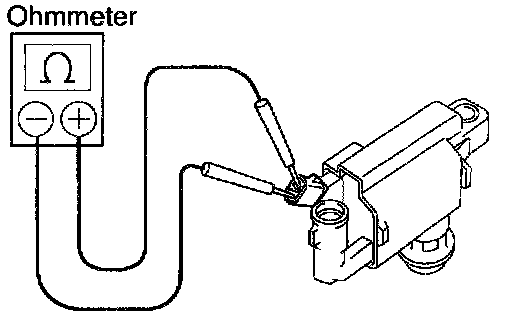

(b) Using an ohmmeter, measure the resistance between the positive (+) and negative (-) terminals.





Primary coil resistance:
If the resistance is not as specified, replace the ignition coil.

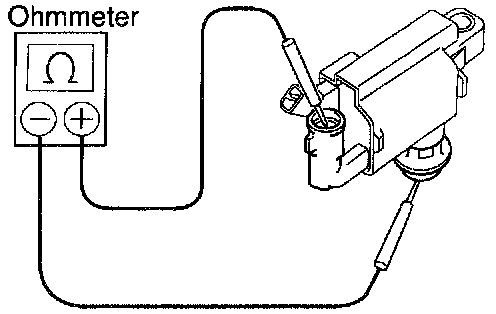

(c) Using an ohmmeter, measure the resistance between the positive (+) and high tension terminal.





Secondary coil resistance:
If the resistance is not as specified, replace the ignition coil.

(d) Reinstall the ignition coil assembly.
