Rear
REPLACEMENT1. Remove rear wheels.
2. Remove brake caliper and disc.

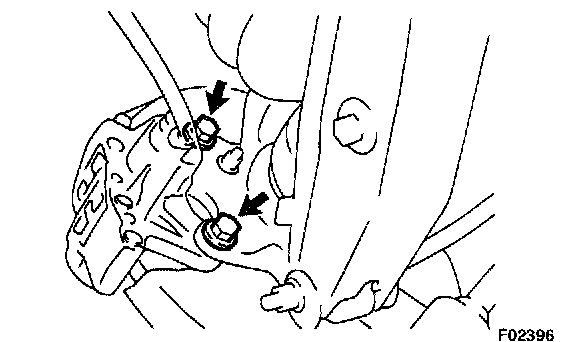

a. Remove the 2 bolts and remove the brake caliper from the axle carrier.
b. Support the brake caliper securely.
c. Remove the disc.
3. Remove hub bolt.

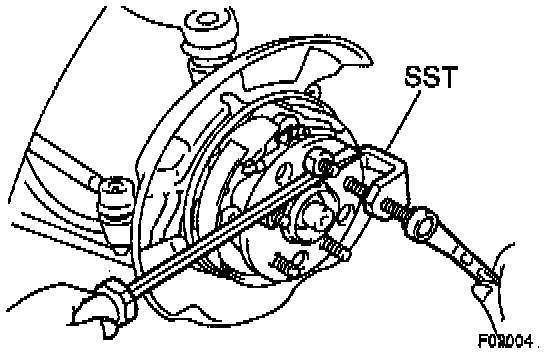

Using Special Service Tool (SST) 09628-10011 or equivalent, remove the hub bolt.
4. Install hub bolt.

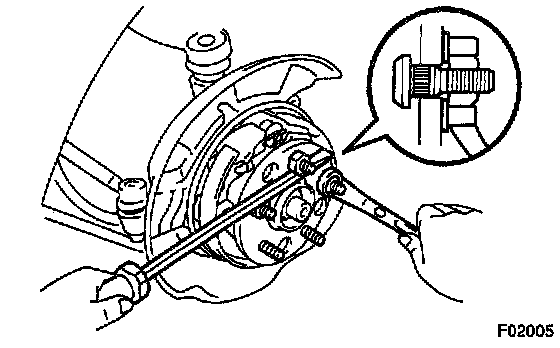

a. Install a washer and nut to the bolt, as shown in the illustration.
b. Turn the wheel nut to pull the hub bolt until the underside of the hub bolt head touches the axle hub.
5. Install disc and brake caliper.
a. Install the disc.
b. Install the brake caliper and 2 bolts to the axle caliper.
Torque: 104 Nm (77 ft. lbs.)
6. Install rear wheel.
Torque: 103 Nm (76 ft. lbs.)
