Headlight Beam Level Control System

1. INSPECT HEADLIGHT BEAM LEVEL CONTROL ACTUATOR RESISTANCE
a. Check that continuity exists between terminals 2 and 5.

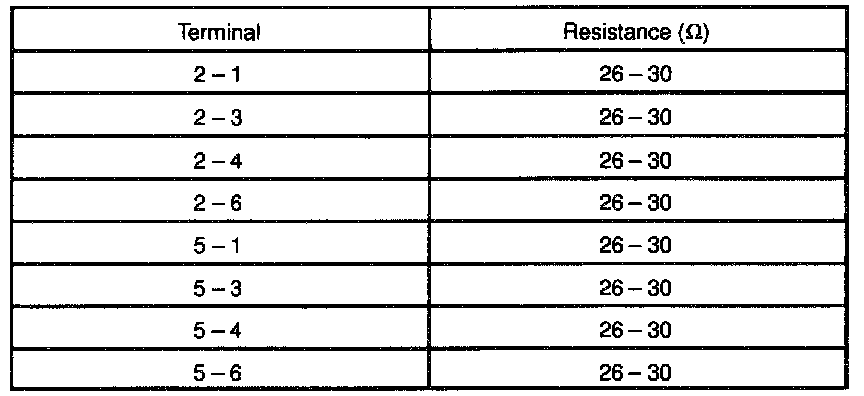

b. Check that resistance exists between terminals, as shown in the chart.
If resistance value is not as specified, replace the actuator.







2. INSPECT HEADLIGHT BEAM LEVEL CONTROL ECU CIRCUIT
Connector disconnected:

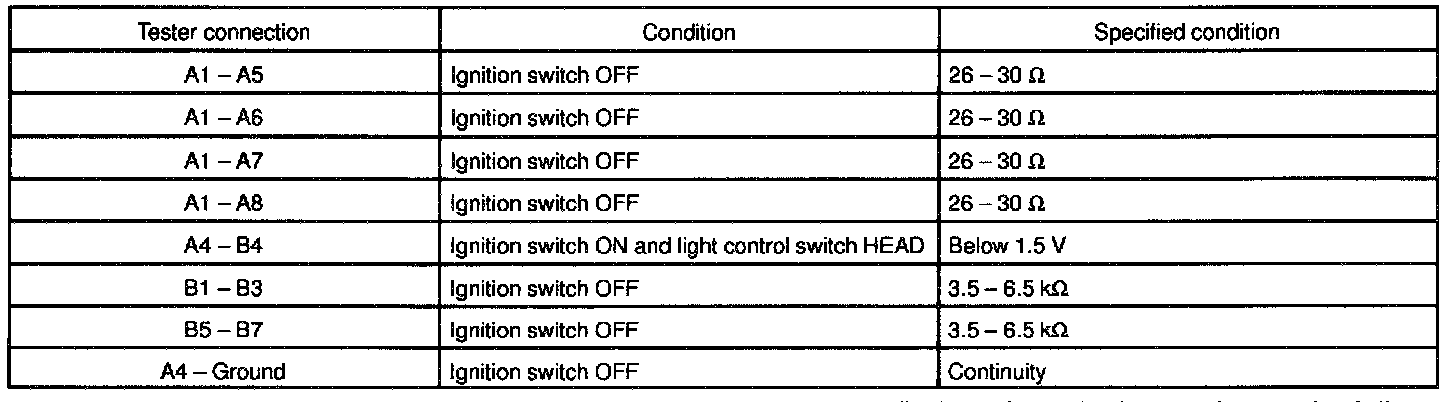

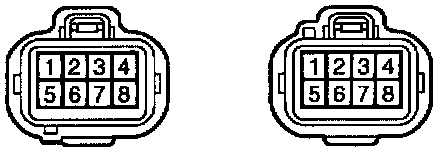

Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown.
It circuit is not as specified, perform the following inspections.







3. INSPECT HEADLIGHT BEAM LEVEL CONTROL ECU CIRCUIT
Connector connected:
Connect the connector from the ECU and inspect the connector, as shown in the table.
If the circuit is not as specified, replace the ECU.




Reference INSPECTION USING OSCILLOSCOPE

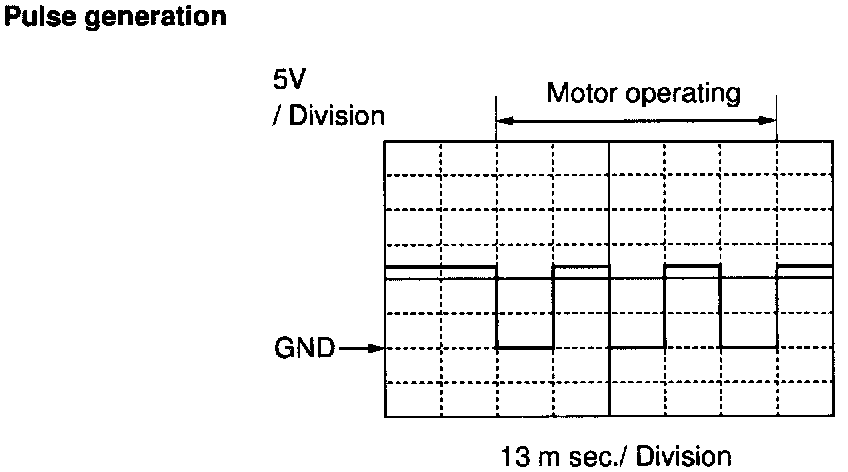

HINT: The correct waveform is as shown in the illustration.
