Speed Sensor Circuit


Speed Sensor Circuit

INSPECTION PROCEDURE

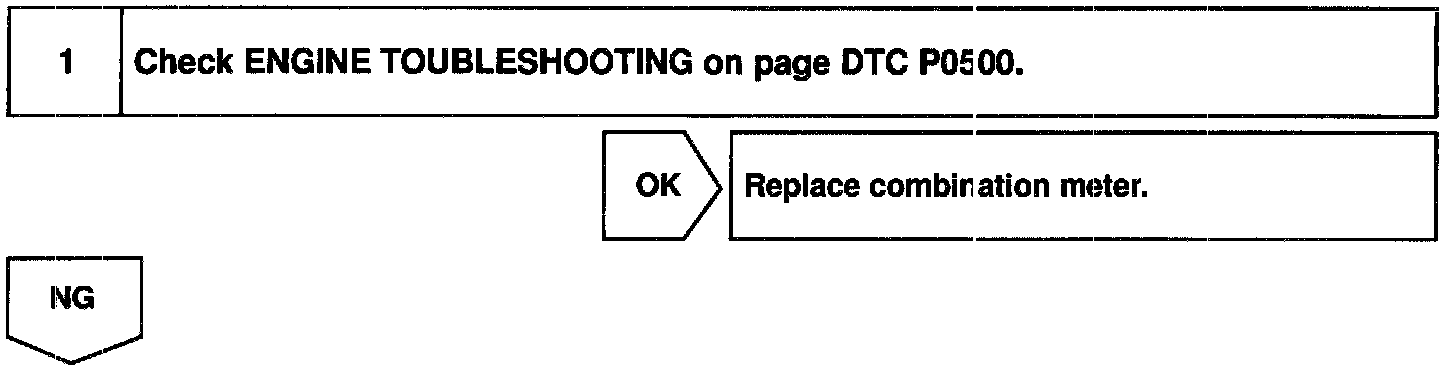

Step 1:




Step 2:





When using LEXUS hand-held tester:

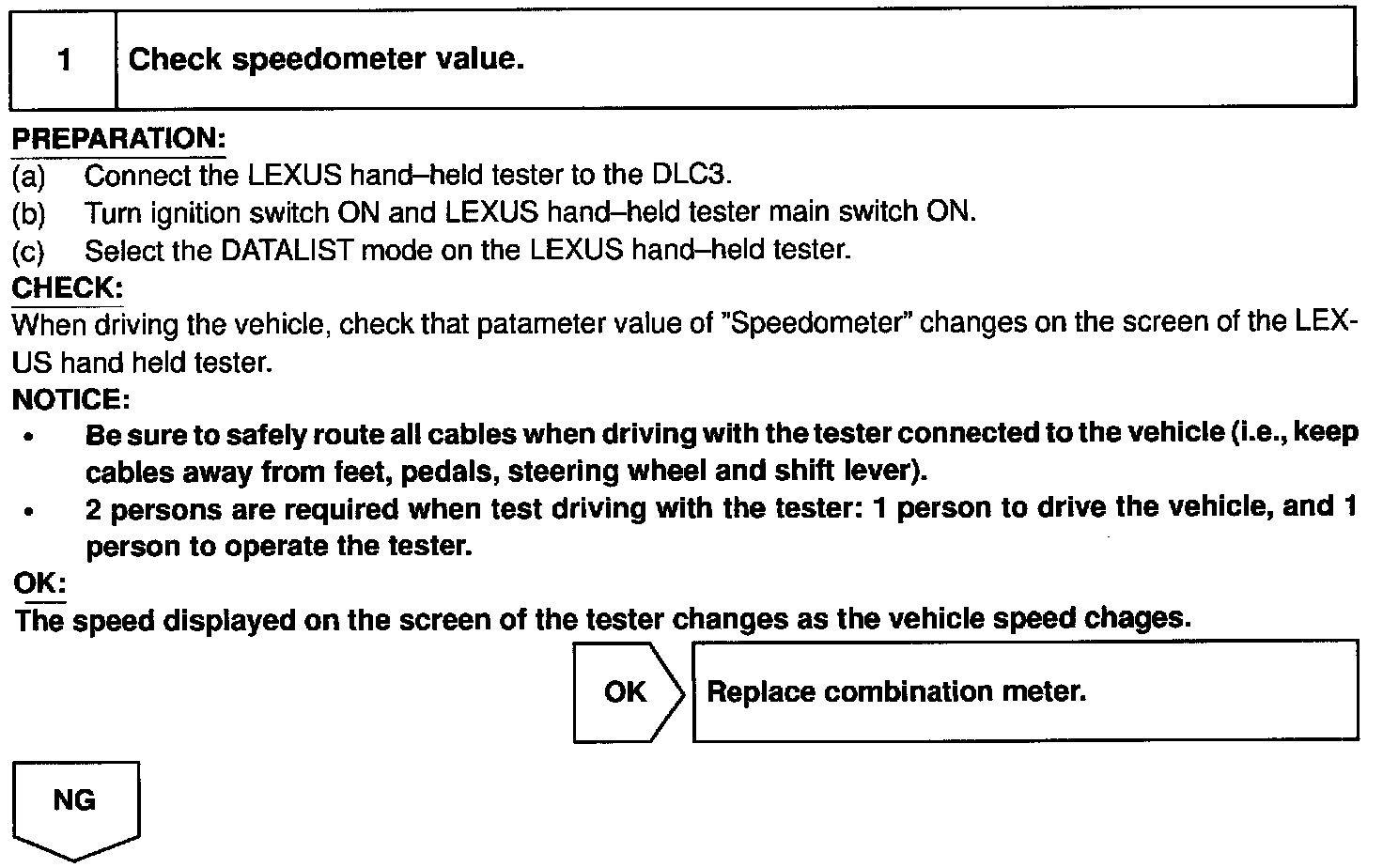

Step 1:

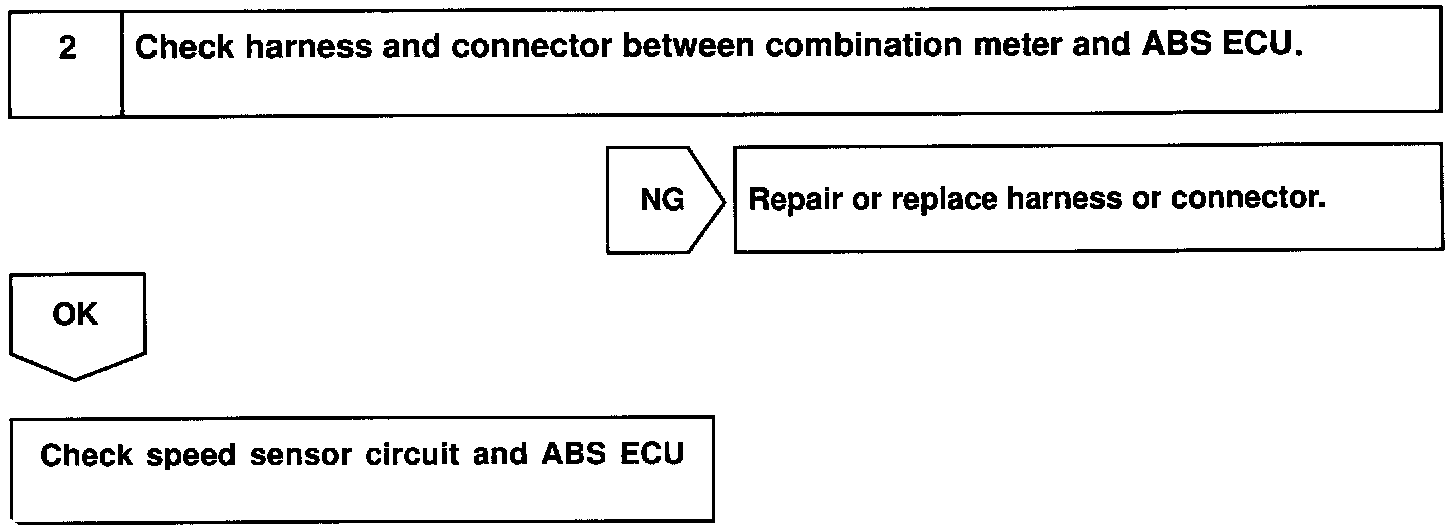

Step 2:





When not using LEXUS hand-held tester:
