Door Lock Reminder Light: Testing and Inspection




INSPECT OPEN DOOR WARNING LIGHT

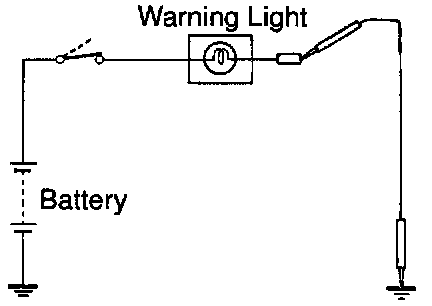

Disconnect the connector from the door courtesy switch and ground terminal 1 on the wire harness side, and check that the warning light lights up.
If the warning light does not light up, inspect the bulb or wire harness.

INSPECT DOOR COURTESY SWITCH CONTINUITY AND CIRCUIT
