Condenser Fan: Testing and Inspection

1. INSPECT CONDENSER FAN OPERATION

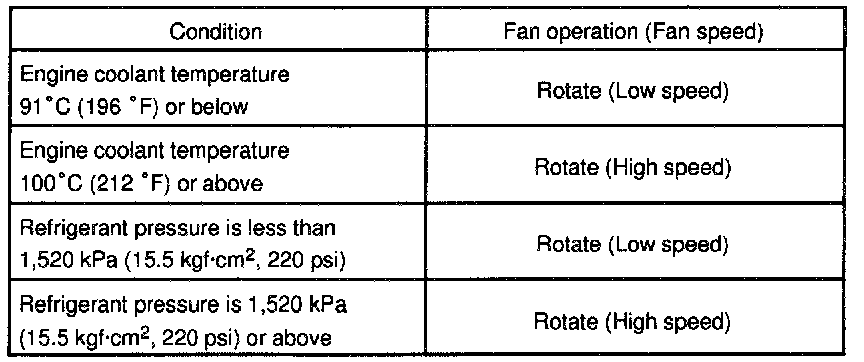

Inspect the fan operation, as shown in the chart.




Test conditions:
^ Ignition switch ON
^ Blower speed control switch position "HI"
^ Temperature control dial at "MAX. COOL"
^ Install manifold gauge set"
^ A/C switch ON
If operation is not as specified, proceed to the next inspection.

2. INSPECT CONDENSER FAN MOTOR OPERATION
a. Disconnect the fan connector.

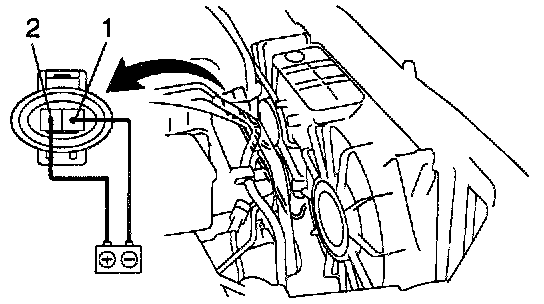

b. Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 1 then check that motor operations smoothly.
^ If operation is not as specified, replace the fan motor.
^ If operation is as specified, check the pressure switch, cooling fan relays and engine coolant temp. switch.
