Removal and Installation

Radiator, Cooling Fans Assb, Reservoir Hose:

REMOVAL

1. Remove engine under cover.
2. Drain engine coolant.
3. Remove air cleaner inlet.
4. Remove air cleaner and map meter assembly.
5. Remove radiator and electric cooling fan assembly.
a. Disconnect these parts:
- Upper radiator hose from radiator
- Lower radiator hose from radiator
- ECM outlet duct from ECM box
- Wire for electric cooling fan from clamp on electric cooling fan
- 2 electric cooling fan connectors
- ECT switch connector for electric cooling fan
- 2 oil cooler hoses for A/T from radiator

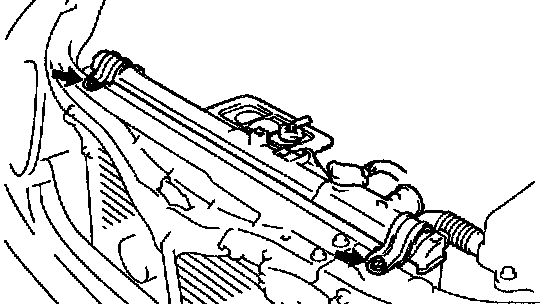

b. Remove the 2 nuts and 2 upper radiator supports.
c. Lift out the radiator and cooling fan assembly.
d. Remove the 2 lower radiator supports.
6. Remove electric cooling fan from radiator.
a. Disconnect the radiator reservoir hose from the radiator.
b. Remove the 6 bolts and electric cooling fan.

INSTALLATION
1. Install electric cooling fan to radiator.
a. Install the electric cooling fan with the 6 bolts.

Torque: 5.0 Nm (44 inch lbs.)

b. Connect the radiator reservoir hose to the radiator.





2. Install radiator and electric cooling fan assembly
a. Install the 2 lower radiator supports to the radiator.
b. Attach the 2 lower radiator supports on the radiator to the body bracket.
c. Install the radiator and electric cooling fan assembly with the 2 upper radiator supports and 2 nuts.

Torque: 13.5 Nm (10 ft. lbs.)

d. Connect these parts:
- Upper radiator hose to radiator
- Lower radiator hose to radiator
- ECM outlet duct to ECM box
- Wire for electric cooling fan to clamp on electric cooling fan
- 2 electric cooling fan connectors
- ECT switch connector for electric cooling fan oil cooler hoses for A/T to radiator
3. Install air cleaner and map meter assembly.
4. Install air cleaner inlet.
5. Fill with engine coolant.
6. Start engine and check for engine coolant and A/T fluid leaks.
7. Install engine under cover.
