Radiator Cooling Fan Motor: Service and Repair

REMOVAL

1. Drain engine coolant.
2. Remove air cleaner inlet.
3. Remove air cleaner and map meter assembly.
4. Remove electric cooling fan.
a. Disconnect these parts:
- Upper radiator hose from radiator
- ECM outlet duct from ECM box
- Wire for electric cooling fan from clamp on electric cooling fan
- 2 electric cooling fan connectors
- Radiator reservoir hose from radiator

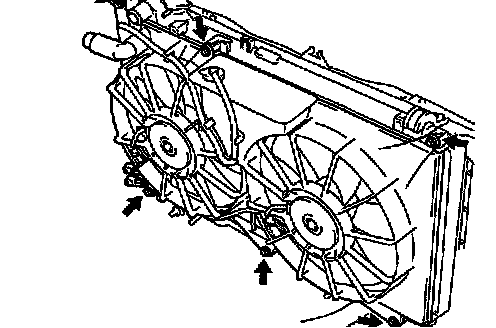

b. Remove the 6 bolts and electric cooling fan.

DISASSEMBLY

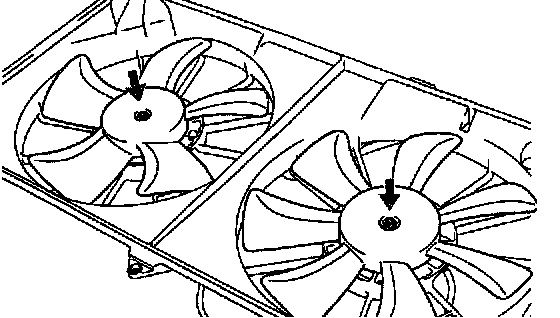

1. Remove fans.
Remove the nut and fan. Remove the 2 fans.





2. Remove fan motors.
a. Disconnect the wires and connector holders from the fan shroud.

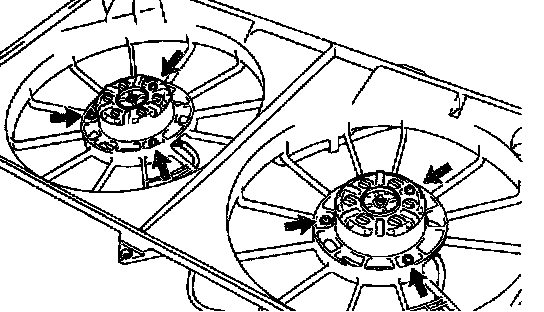

b. Remove the 3 screws and fan motor. Remove the 2 fan motors.

REASSEMBLY






1. Install fan motors.
a. Install the fan motor with the 3 screws. Install the 2 fan motors.

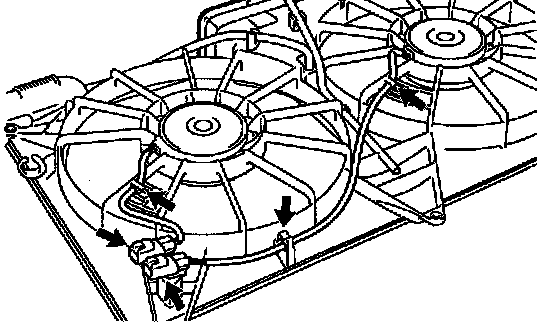

b. Install the wires and connector holders to the fan shroud as shown in the illustration.





2. Install fans.
Install the fan with the nut. Install the 2 fans.

INSTALLATION






1. Install electric cooling fan.
a. Install the electric cooling fan with the 6 bolts.

Torque: 5.0 Nm (44 inch lbs.)

b. Connect these parts:
- Upper radiator hose to radiator
- ECM outlet duct to ECM box
- Wire for electric cooling fan to clamp on electric cooling fan
- 2 electric cooling fan connectors
- Radiator reservoir hose to radiator
2. Install air cleaner and MAF meter assembly.
3. Install air cleaner inlet.
4. Fill with engine coolant.
5. Start engine and check for coolant leaks.
