Removal and Installation

REMOVAL





1. Disconnect flexible hose.

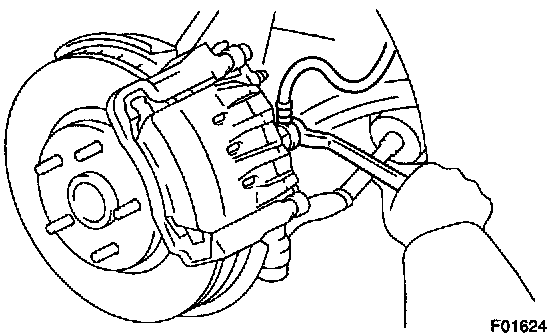

Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper. Use a container to catch brake fluid as it drains out.
Torque: 30 Nm (22 ft. lbs.)

HINT: Install the flexible hose lock securely in the lock hole in the caliper.

2. Remove caliper.
a. Hold the sliding pin and loosen the 2 installation bolts.
Torque: 34 Nm (25 ft. lbs.)
b. Remove the 2 installation bolts.
c. Remove the caliper from the torque plate.
3. Remove these parts:
a. 2 anti-squeal springs.
b. 2 brake pads with anti-squeal shims.
c. 4 pad support plates.

INSTALLATION
Installation is in the reverse order of removal.
1. After installation, fill brake reservoir with brake fluid and bleed brake system.
2. Check for leaks.
