Without Scan Tool

CLEARING DTC's WITHOUT SCAN TOOL

Clear the DTC.

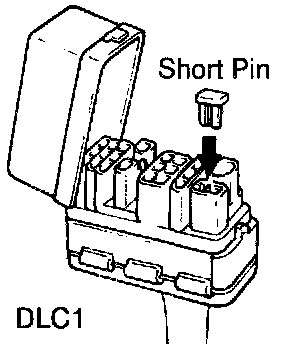

(1) Using SST, connect terminals TC and E1 of DLC1 and remove the short pin from DLC1.
SST 09843-18020
(2) Turn the ignition switch ON.

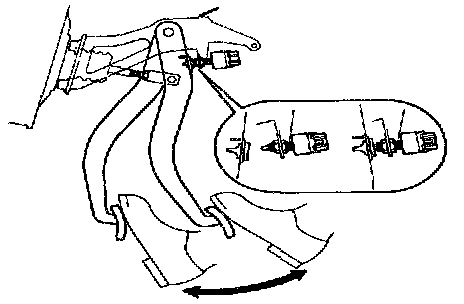

(3) Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
(4) Check that the warning light shows the normal code.
(5) Remove the SST from the terminals of DLC1. SST 09843-18020





(6) Connect the short pin to DLC1 -

HINT: Disconcerting the battery cable during repairs will not erase the DTC in the ECU.
