Power Mirror Switch: Testing and Inspection

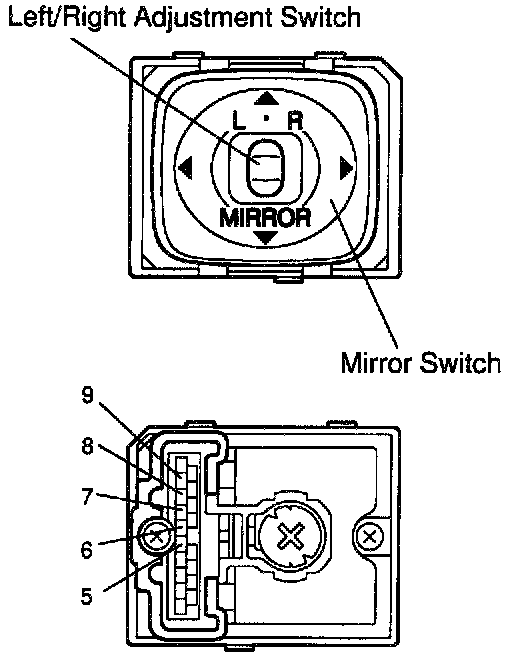

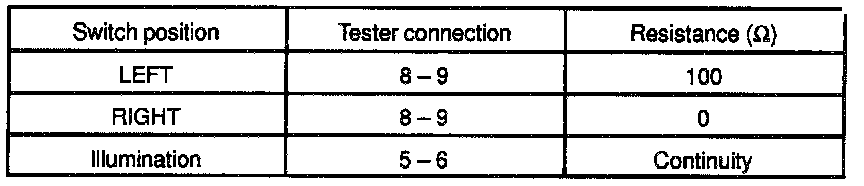

INSPECT MIRROR SWITCH CONTINUITY

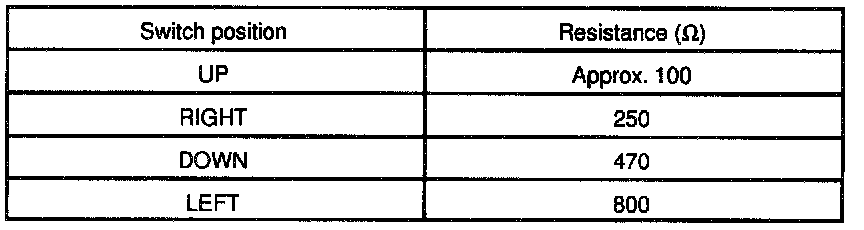

Measure resistance between terminals 7 and 9.
If continuity is not as specified, replace the switch.

INSPECT MIRROR SWITCH CIRCUIT

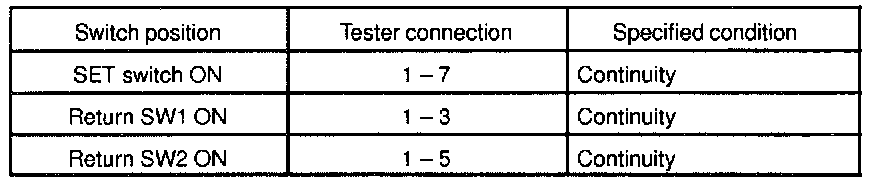

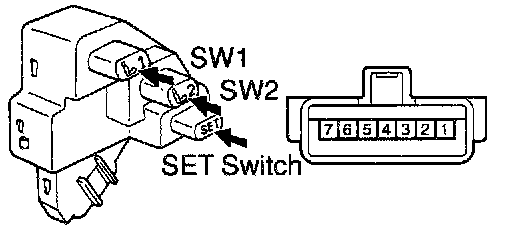

INSPECT DRIVING POSITION MEMORY AND RETURN SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

INSPECT DRIVING POSITION MEMORY AND RETURN SWITCH CIRCUIT
