Sliding Roof Gear Assembly With ECU Circuit
Sliding Roof Gear Assembly With ECU Circuit
Sliding Roof Gear Assembly With ECU Circuit

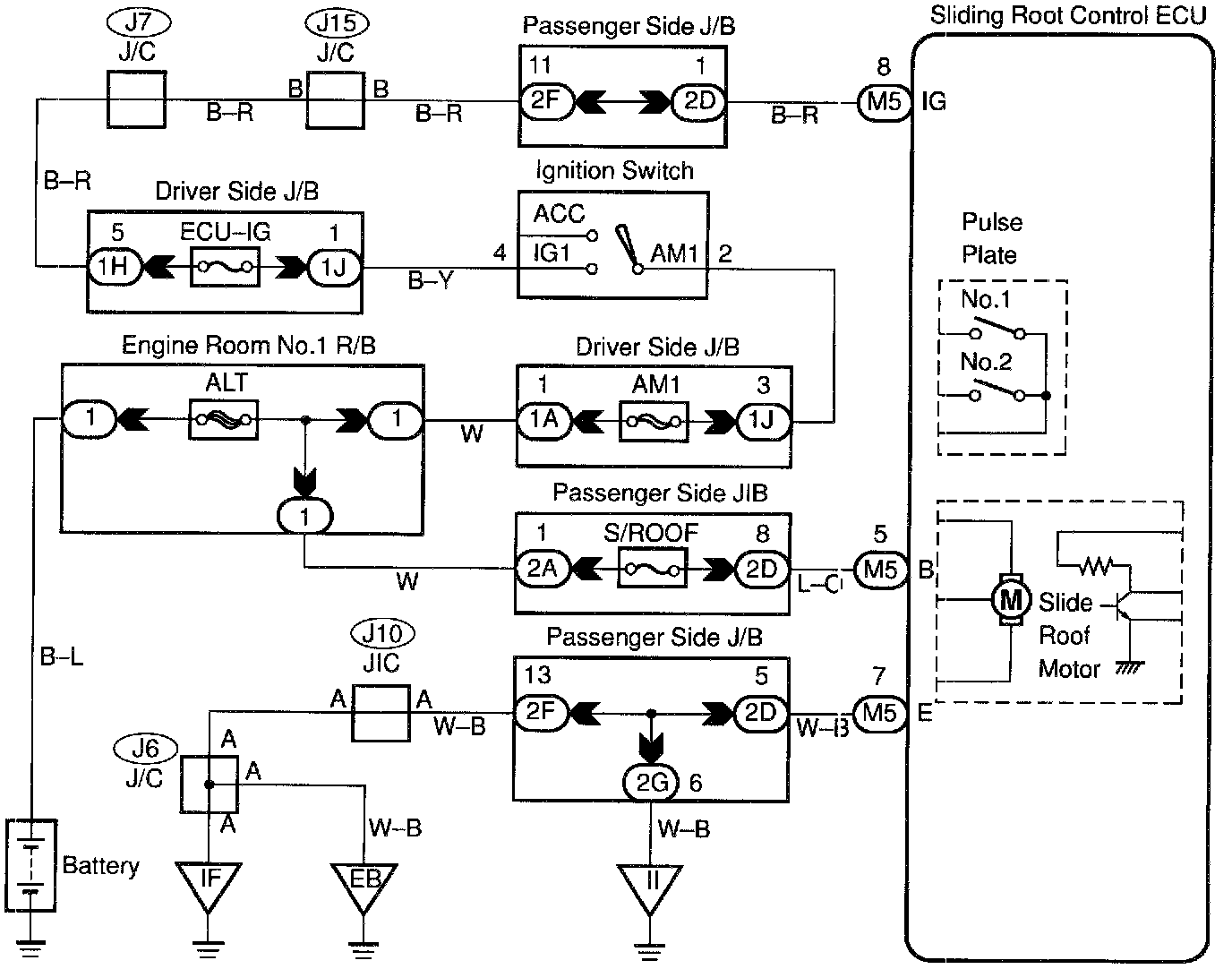

WIRING DIAGRAM

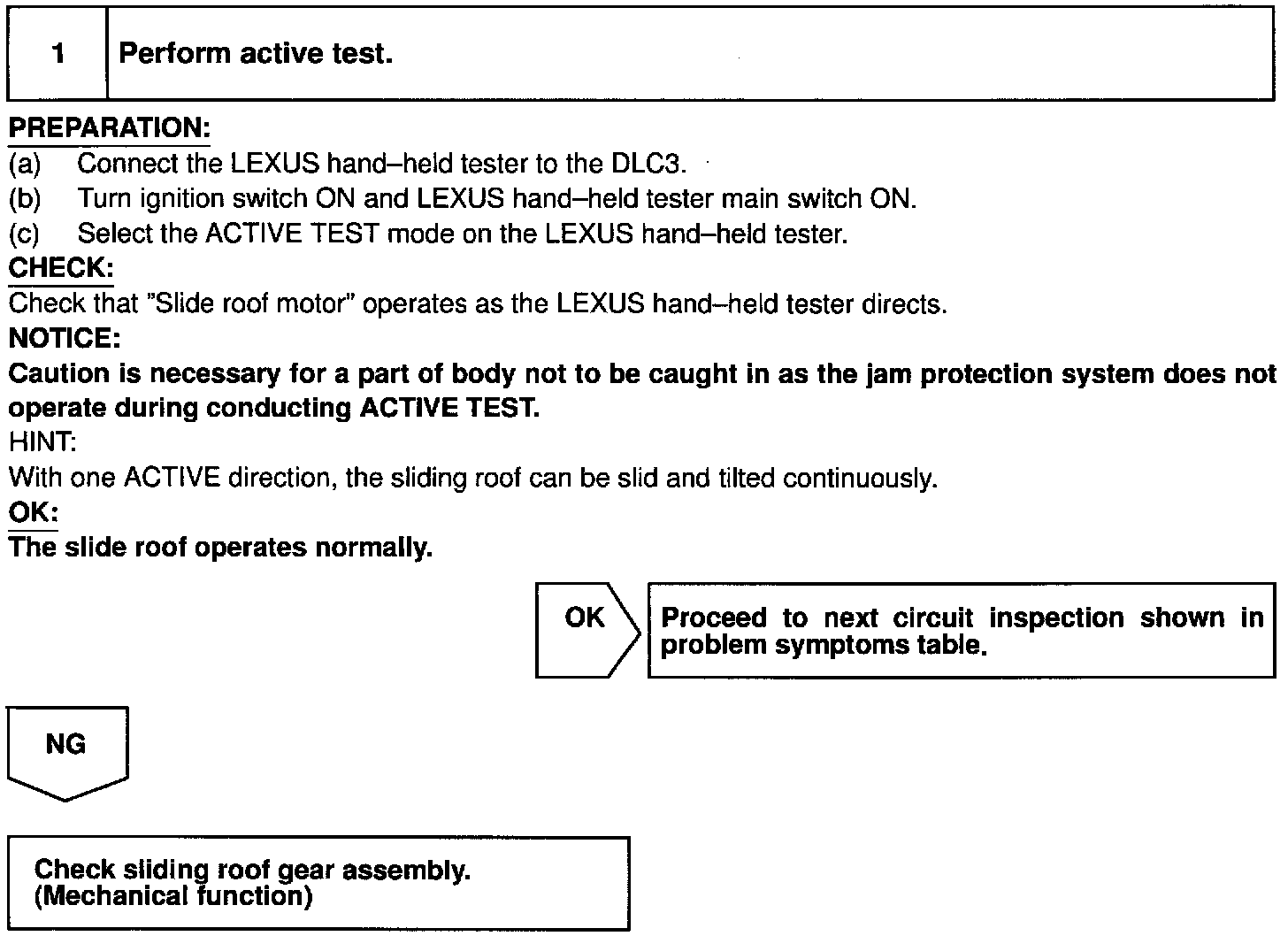

Step 1:
INSPECTION PROCEDURE
