Power Mirror Control System

This system uses the multiplex communication system, so check diagnosis system of the multiplex commu nication system before you proceed with troubleshooting.

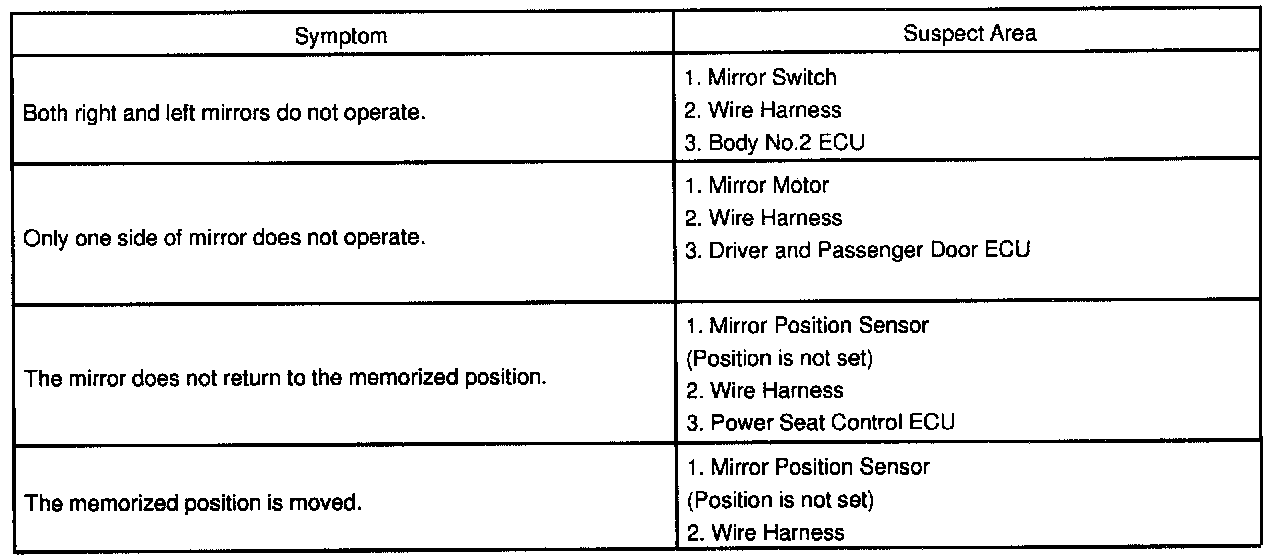

w/ Driving Position Memory System:

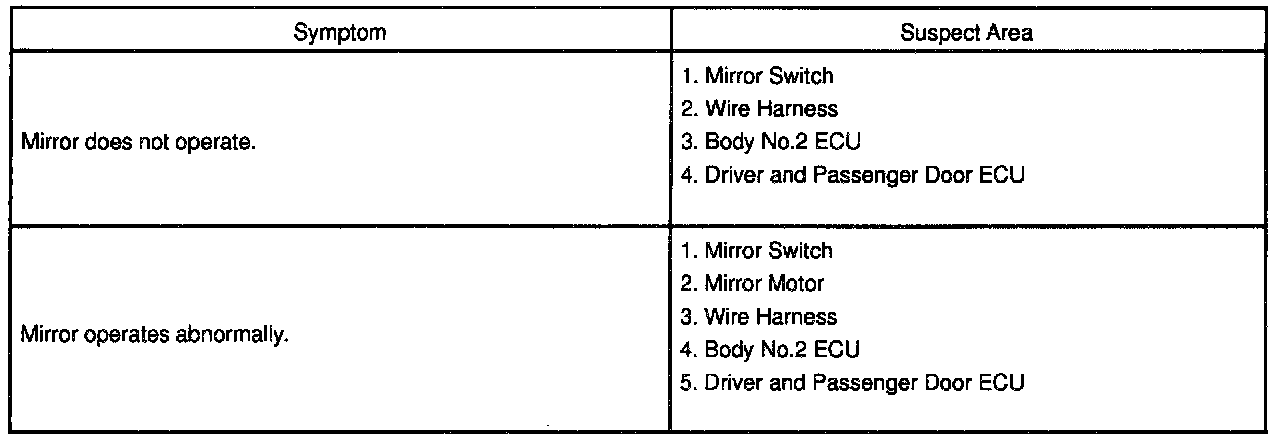

w/o Driving Position Memory System:
