Home >> Lexus >> 1998 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Rear Right Door Control System >> Door Lock Motor Circuit

Door Lock Motor Circuit

Door Lock Motor Circuit

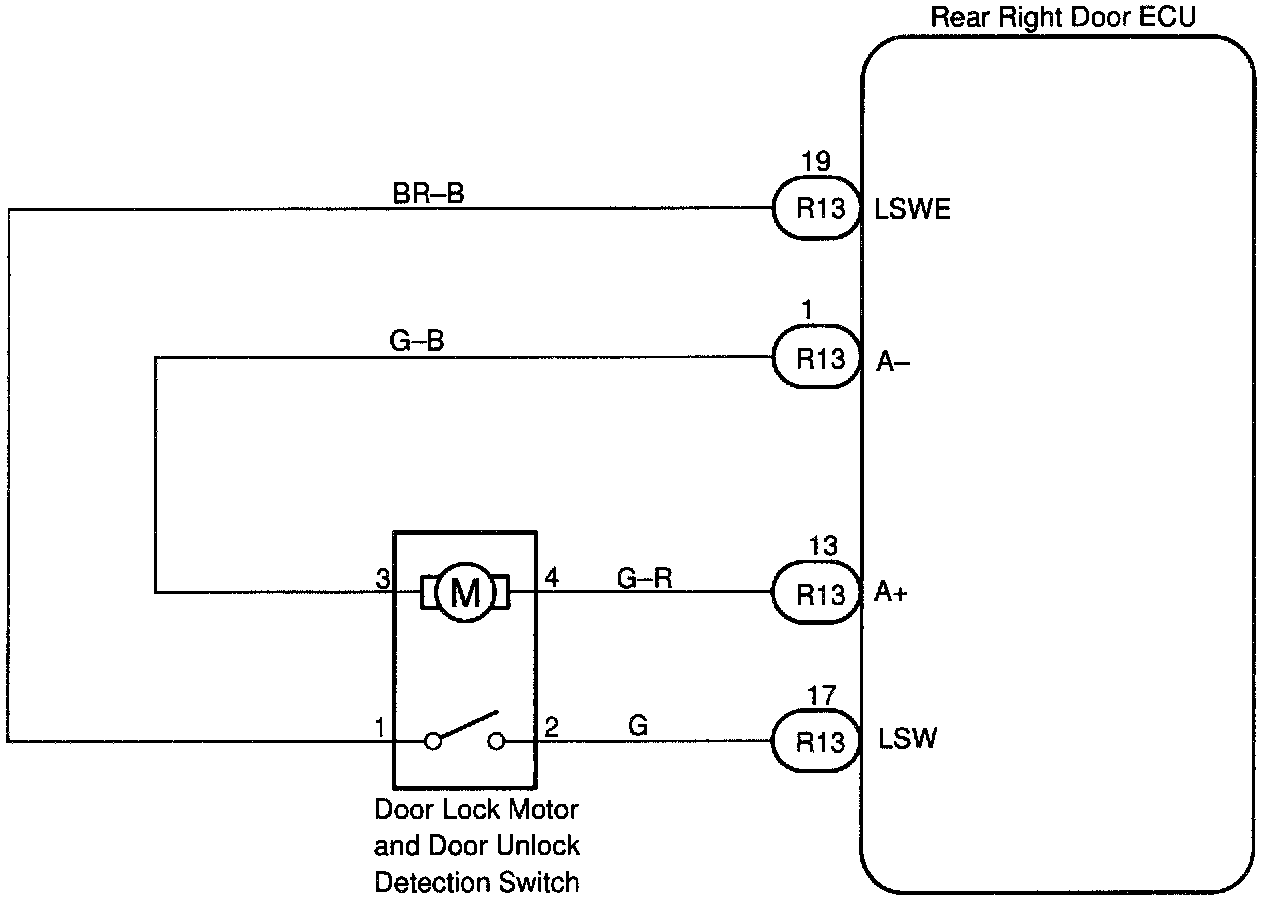

WIRING DIAGRAM

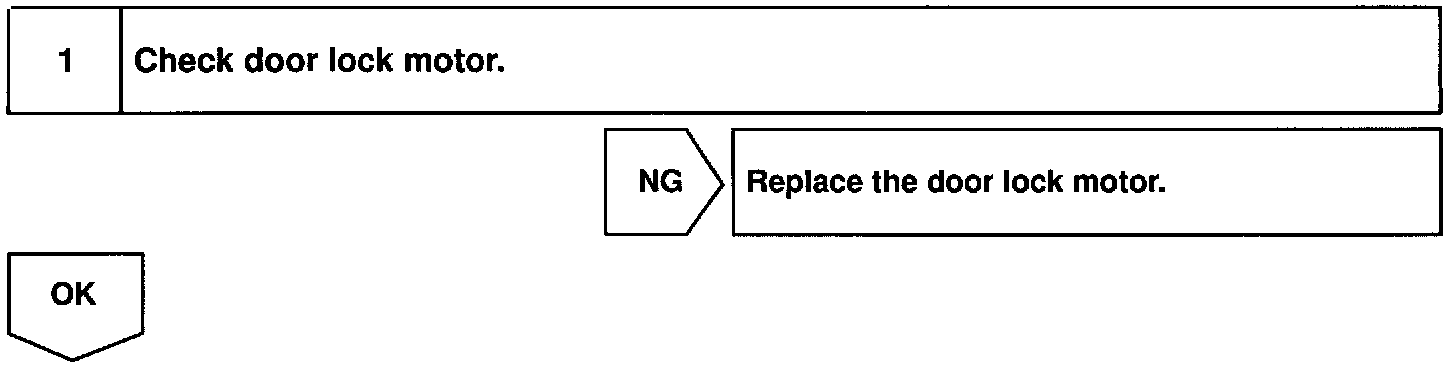

Step 1:

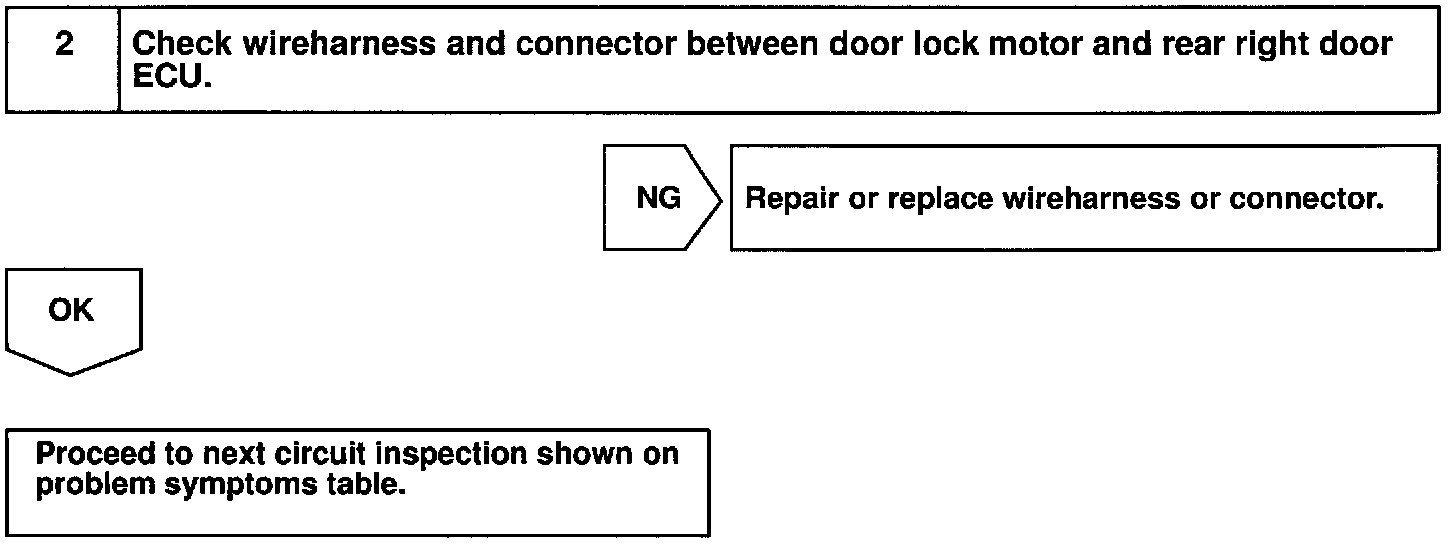

Step 2:

INSPECTION PROCEDURE
