Symptom Related Diagnostic Procedures

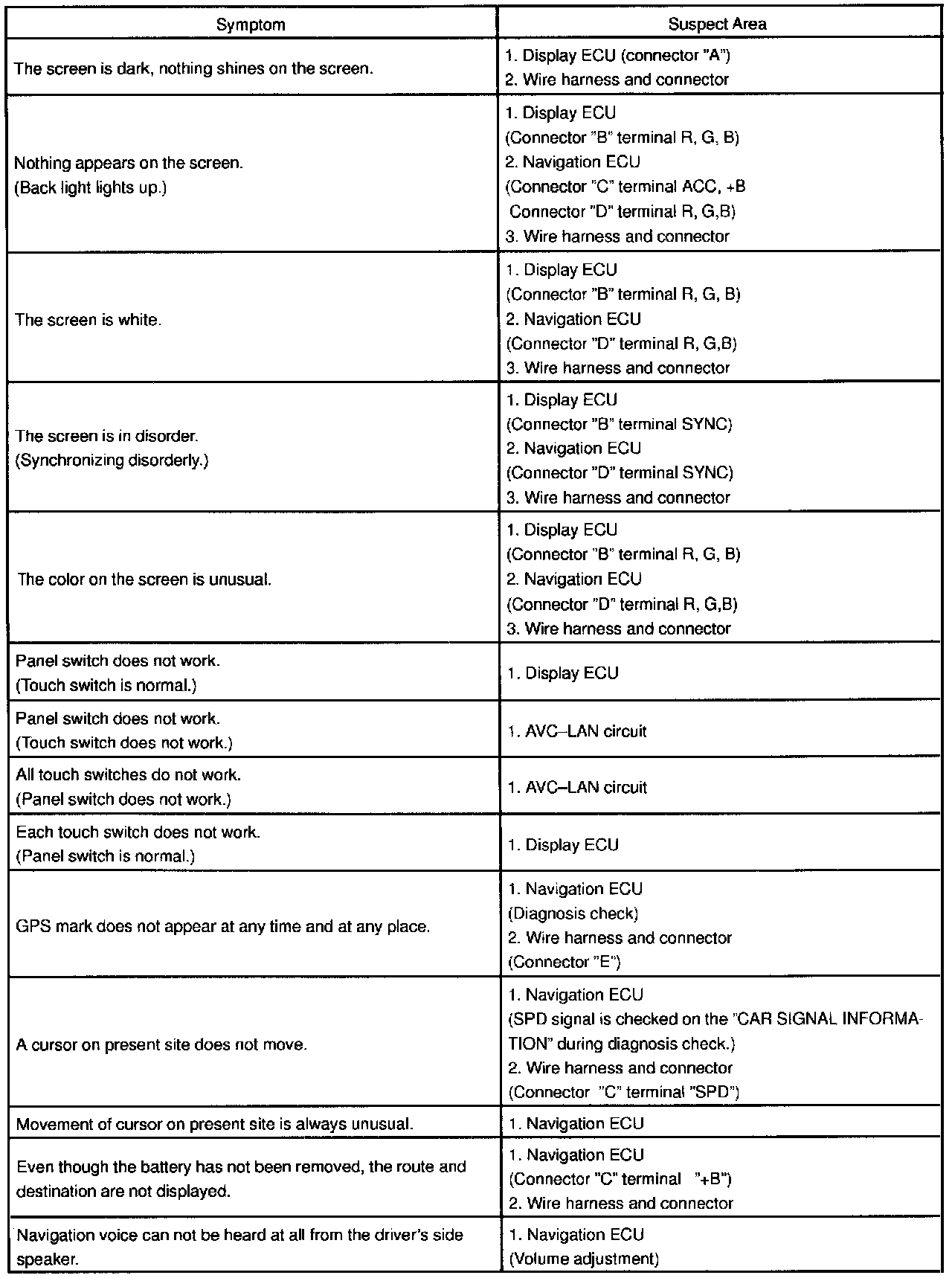

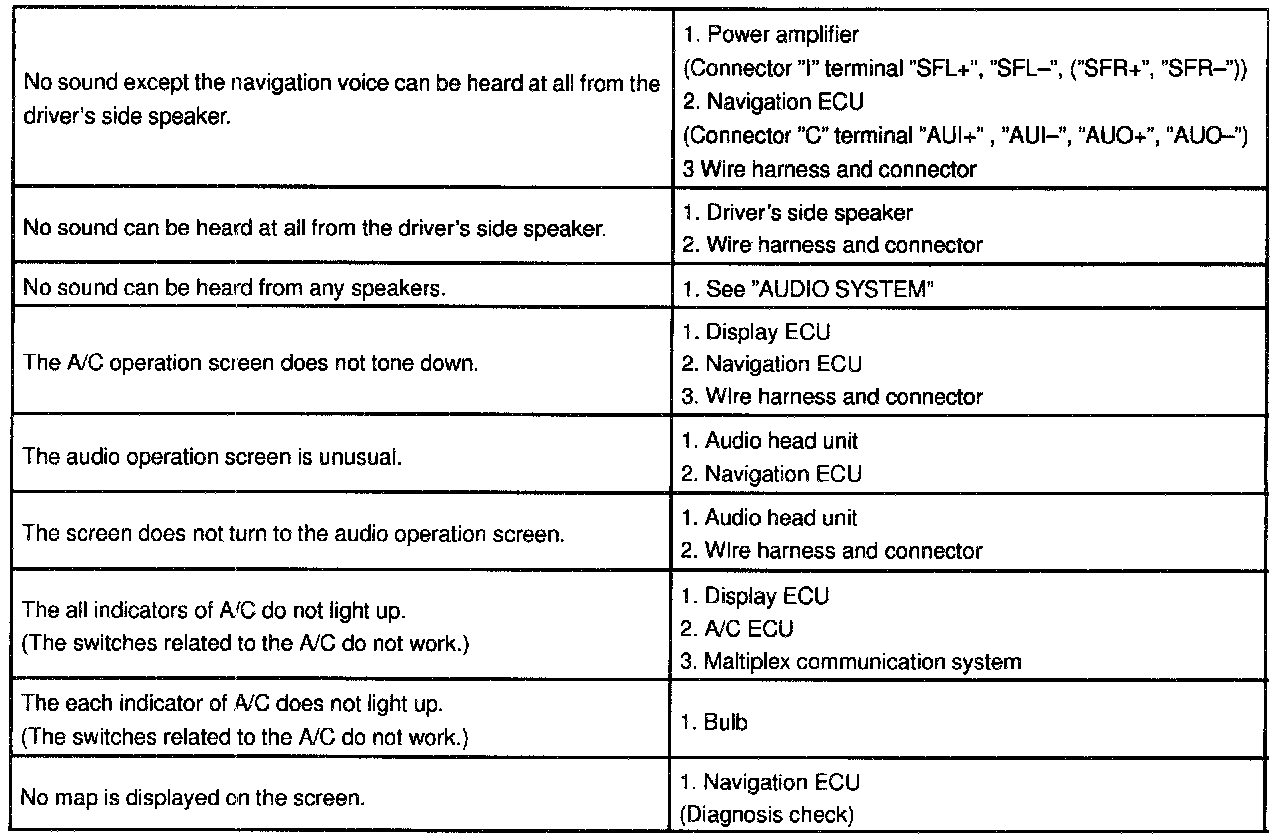

HINT: Inspect the input/ output voltage of the terminals which are described in the column of terminal in the table. Inspect other terminals which are not described referring to "ECU Pinout Values."
HINT: Inspect the input/ output voltage of the terminals which are described in the column of terminal in the table. Inspect other terminals which are not described referring to "ECU Pinout Values."
