Pinout Values and Diagnostic Parameters

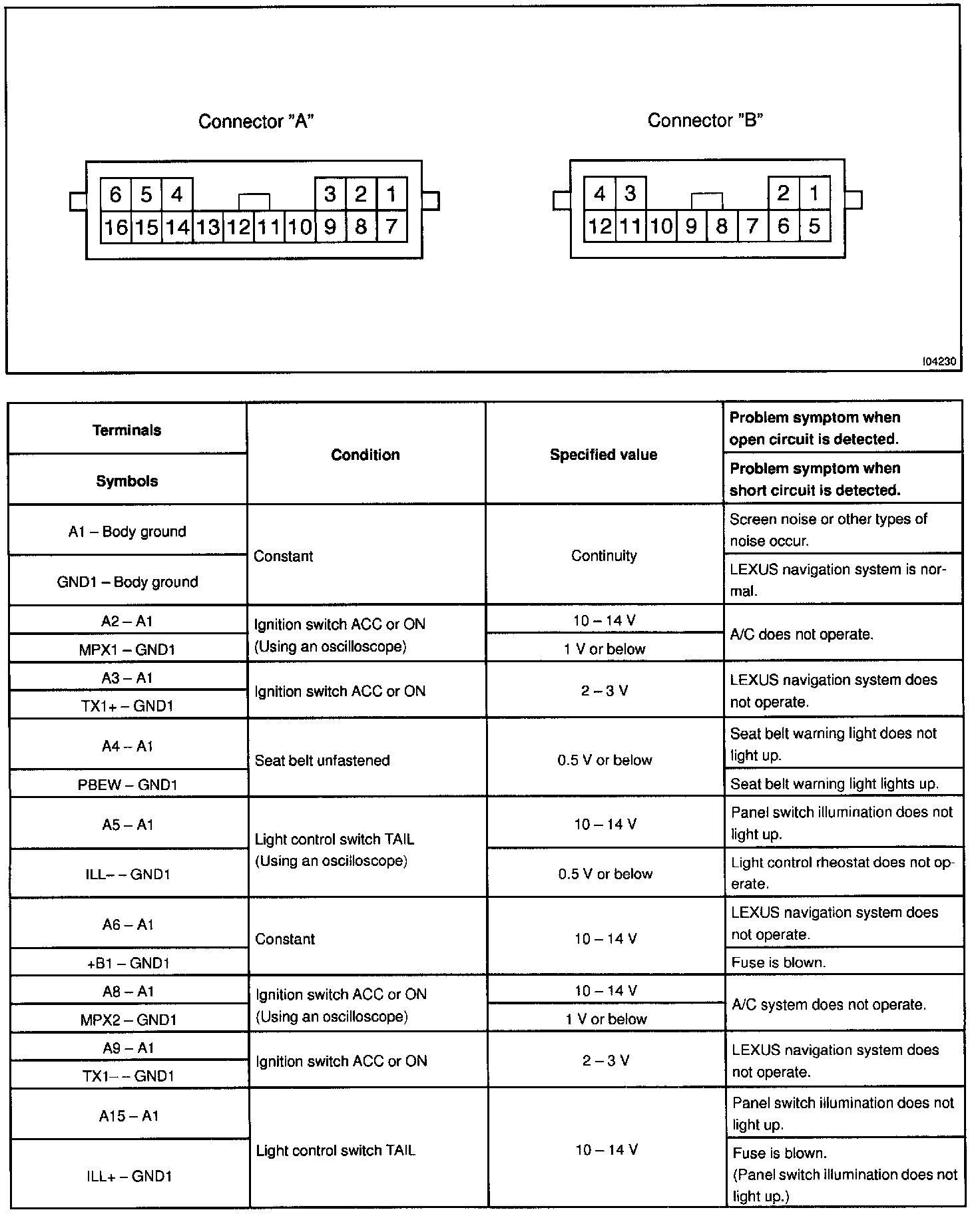

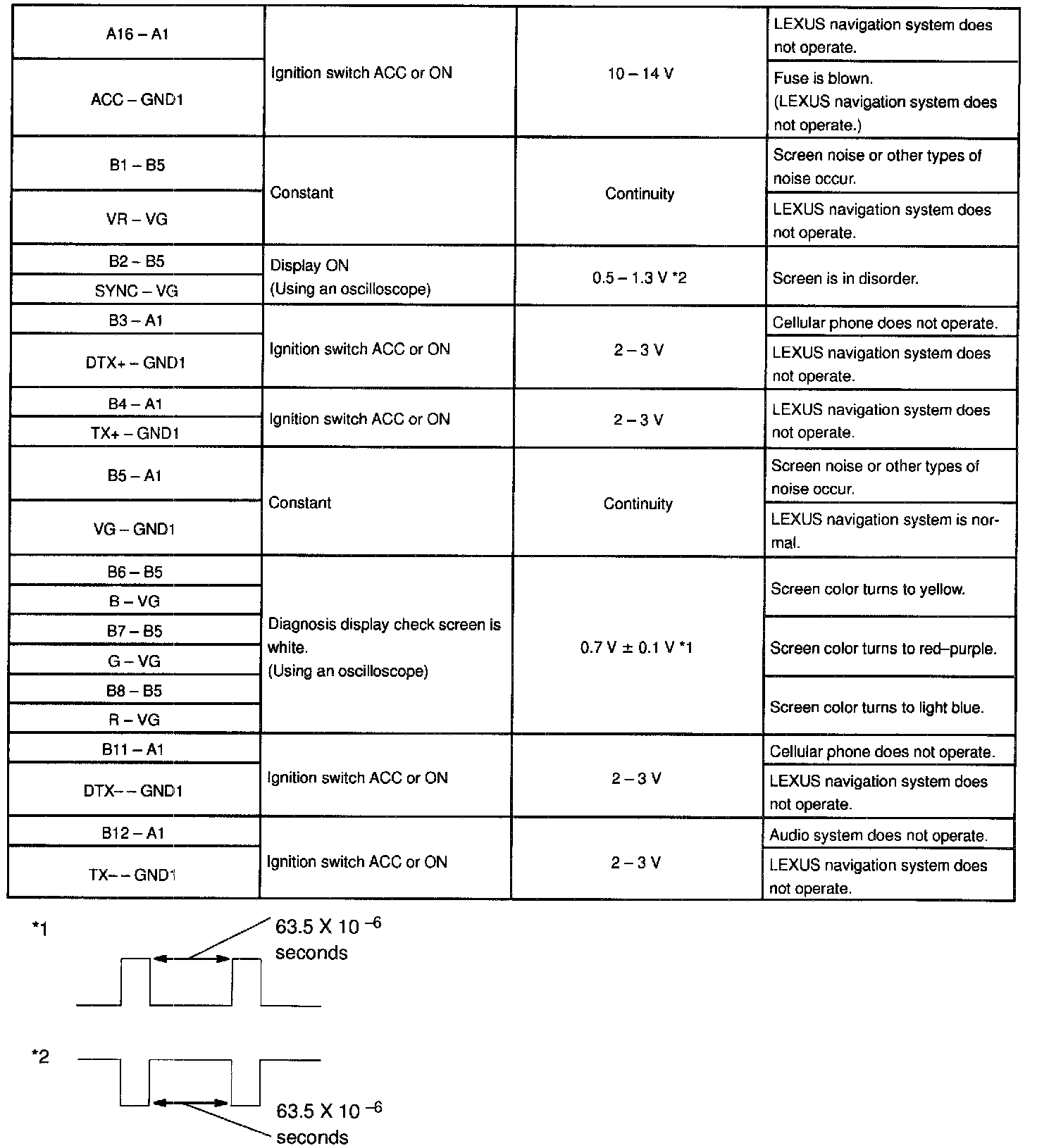

1. DISPLAY ECU

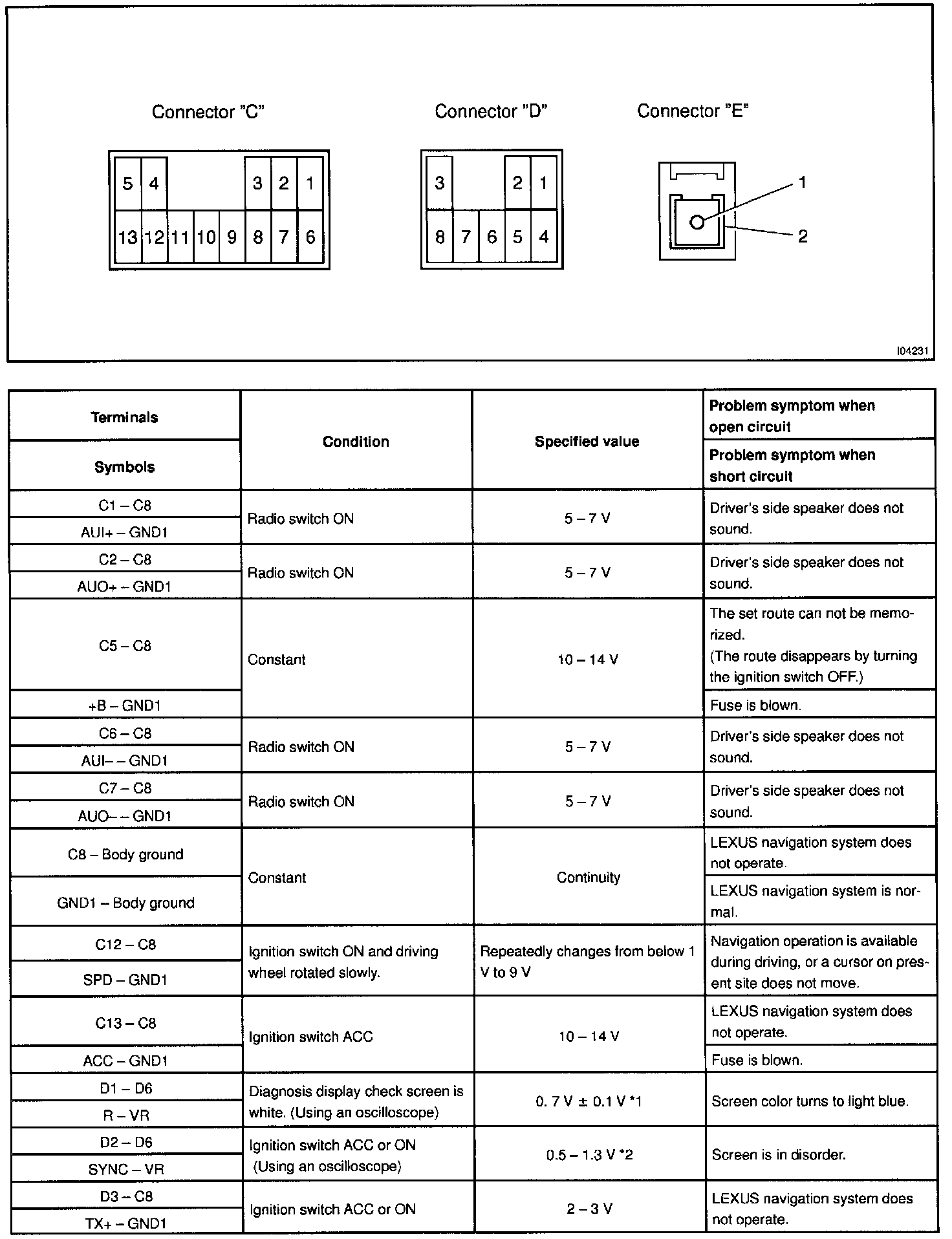

2. NAVIGATION ECU

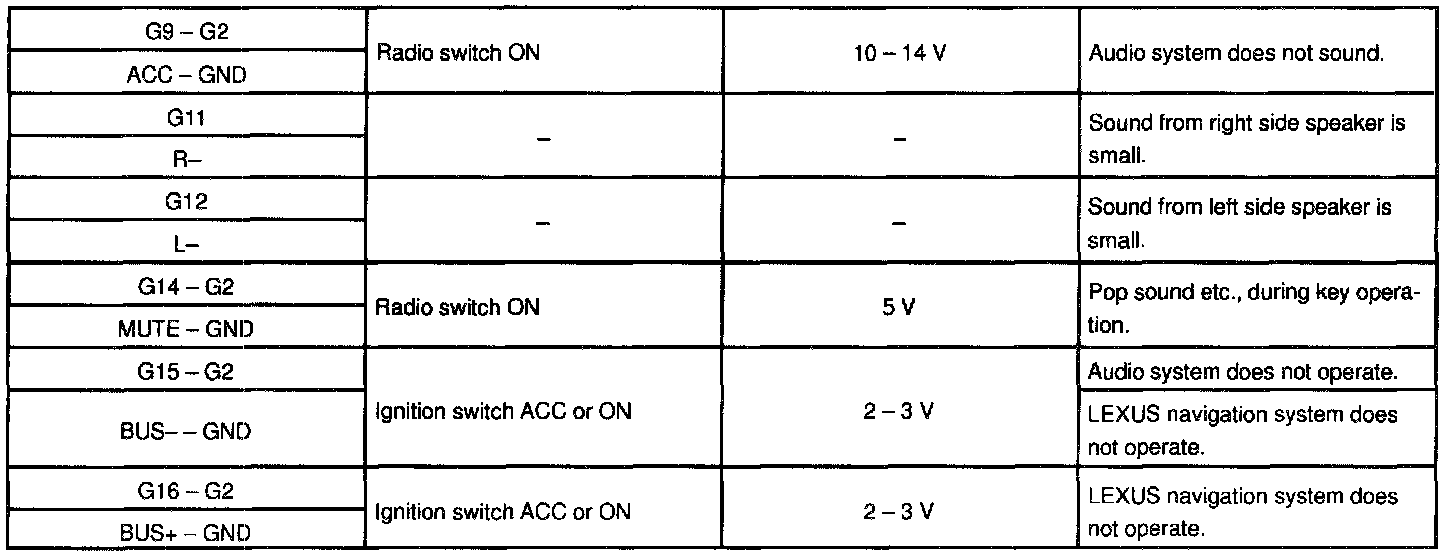

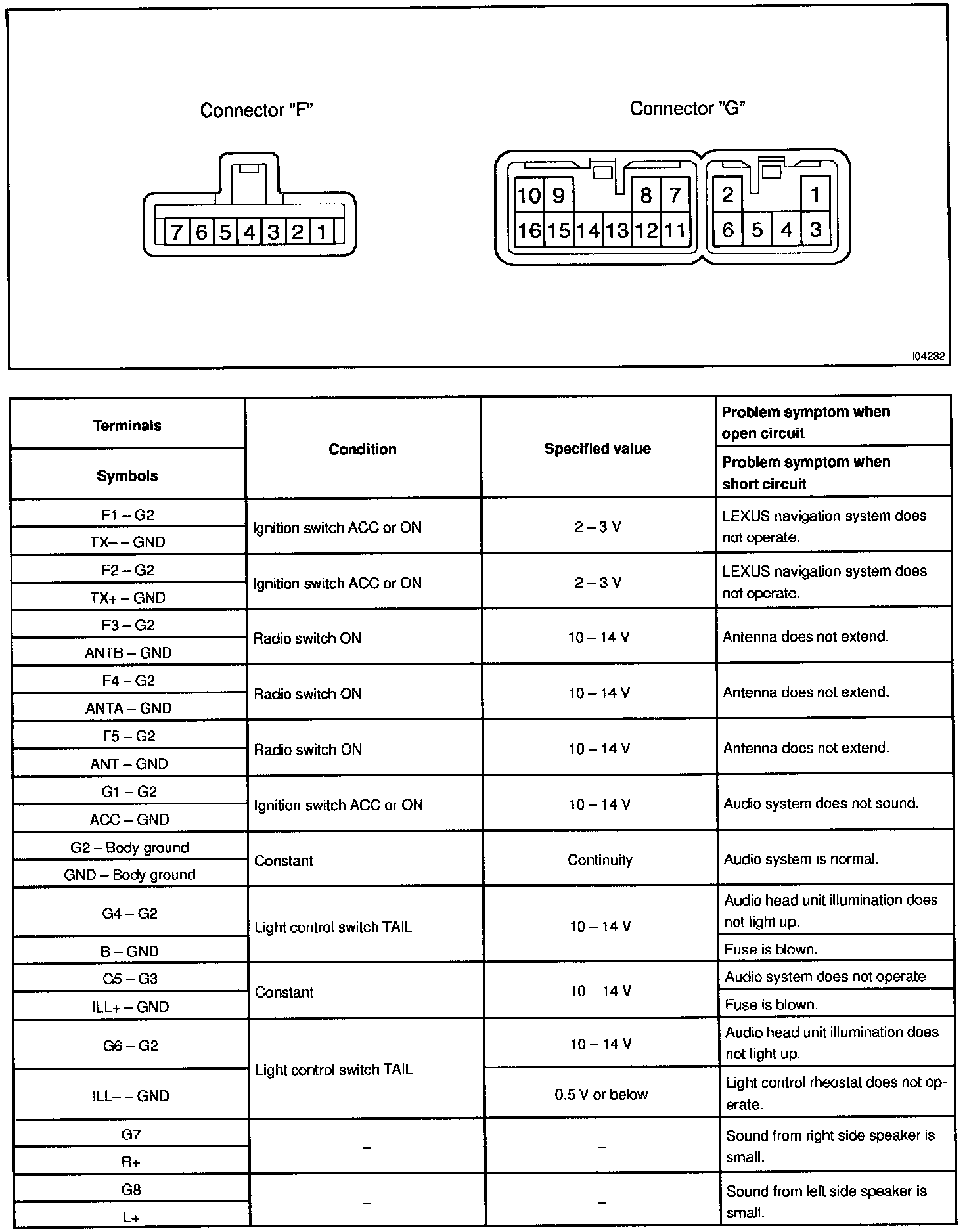

3. AUDIO HEAD UNIT

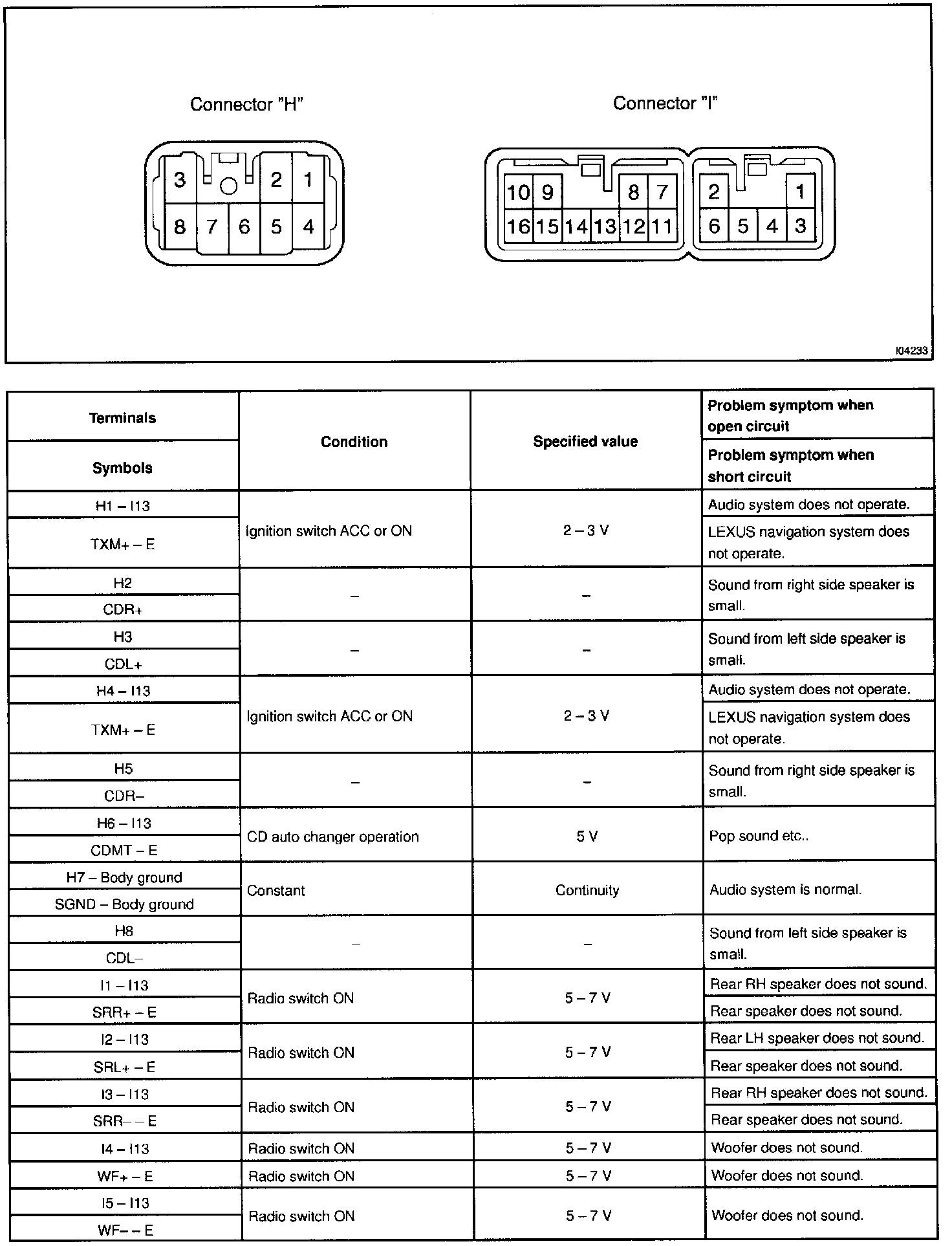

4. POWER AMPLIFIER - 1

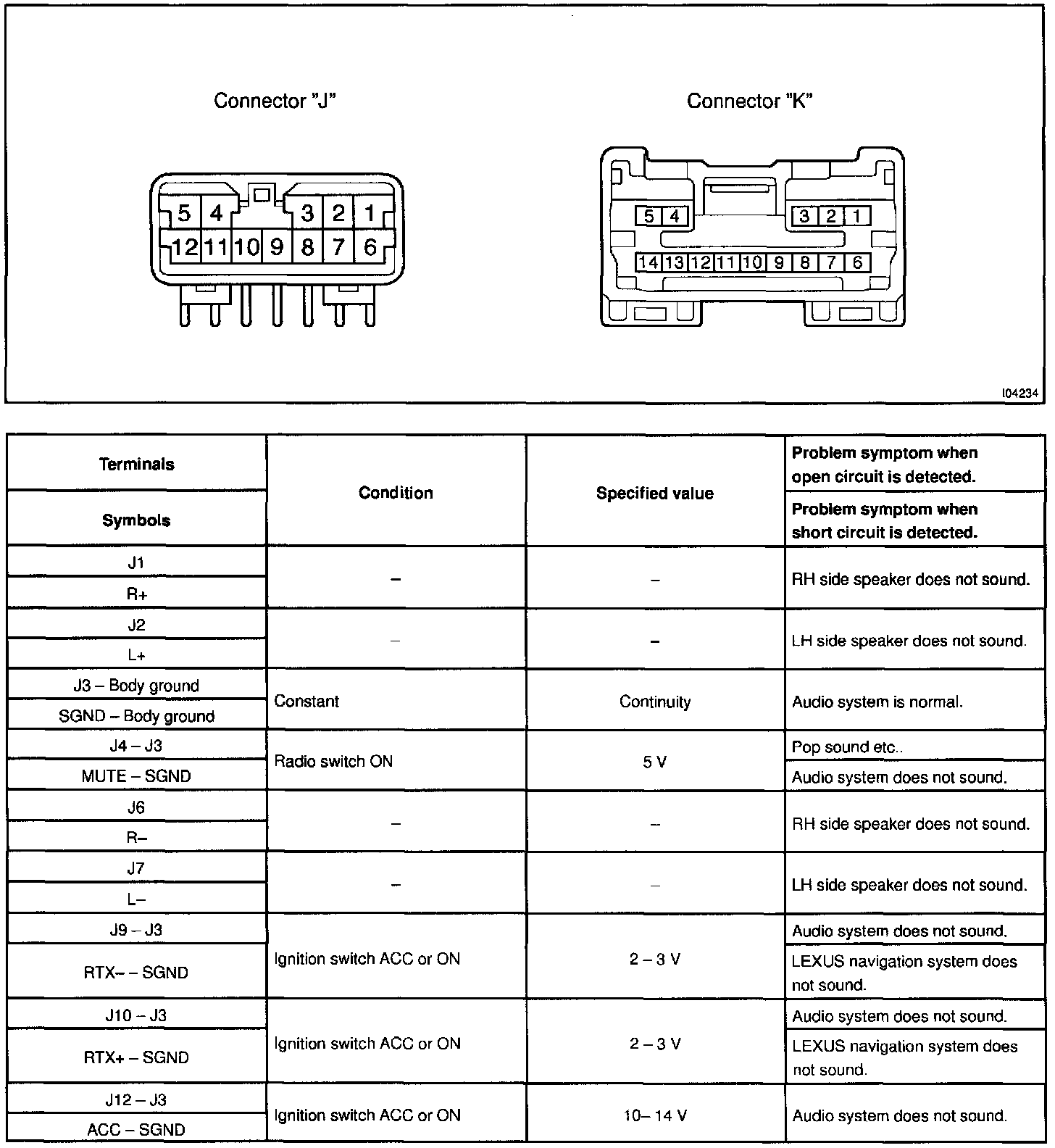

5. POWER AMPLIFIER - 2

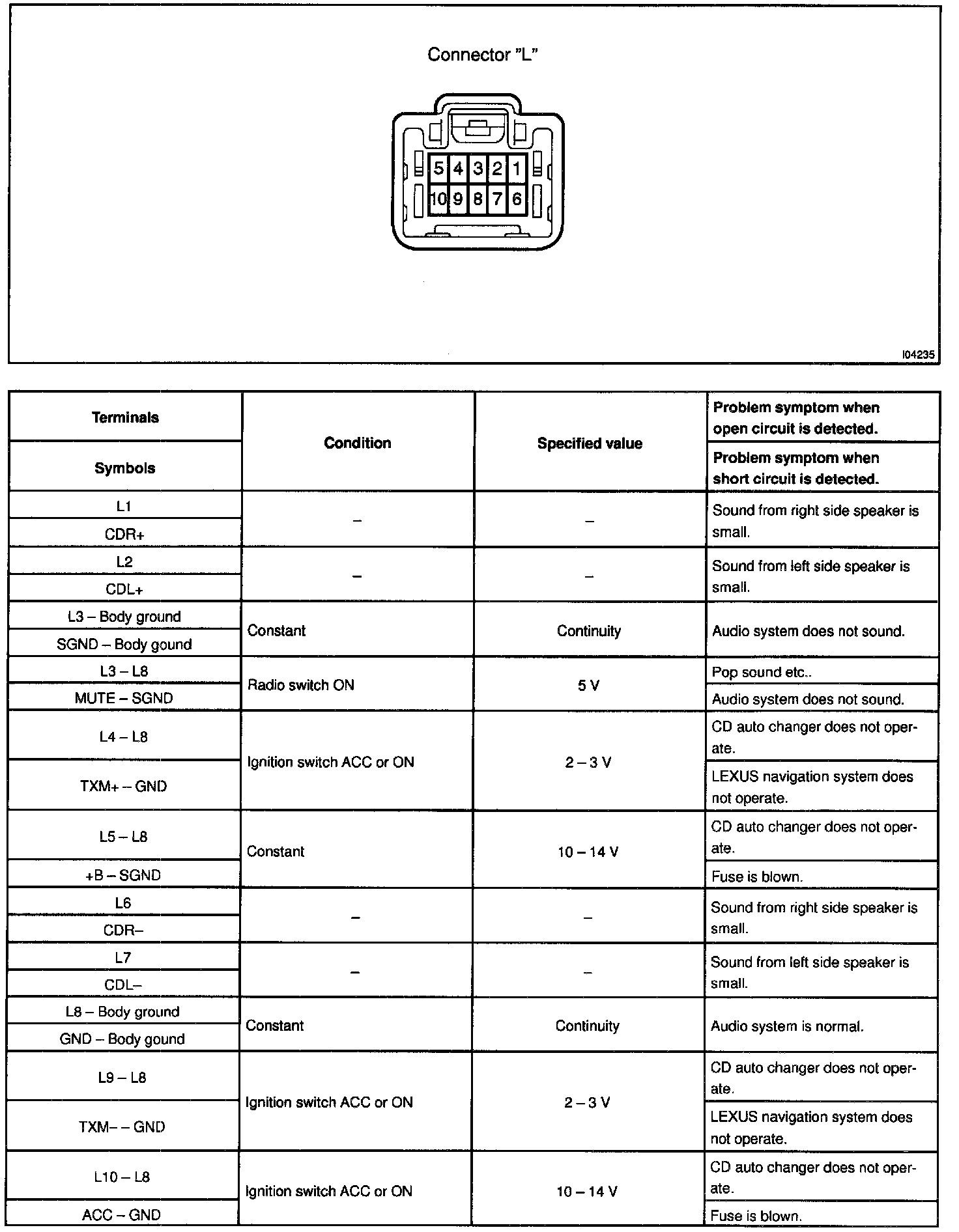

6. CD AUTO CHANGER
