DTC 62

DTC 62 A/C ECU Communication Stop

CIRCUIT DESCRIPTION
This DTC is output when communication stops between ECM and Body No.1 ECU.

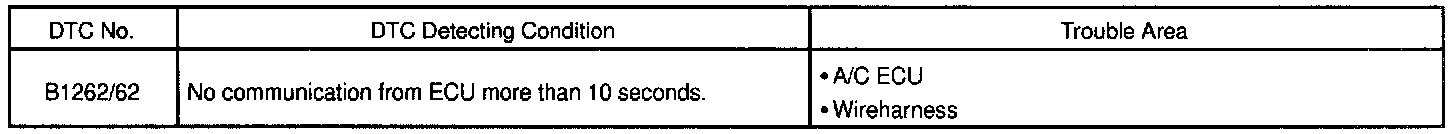

DETECTING CONDITION





WIRING DIAGRAM

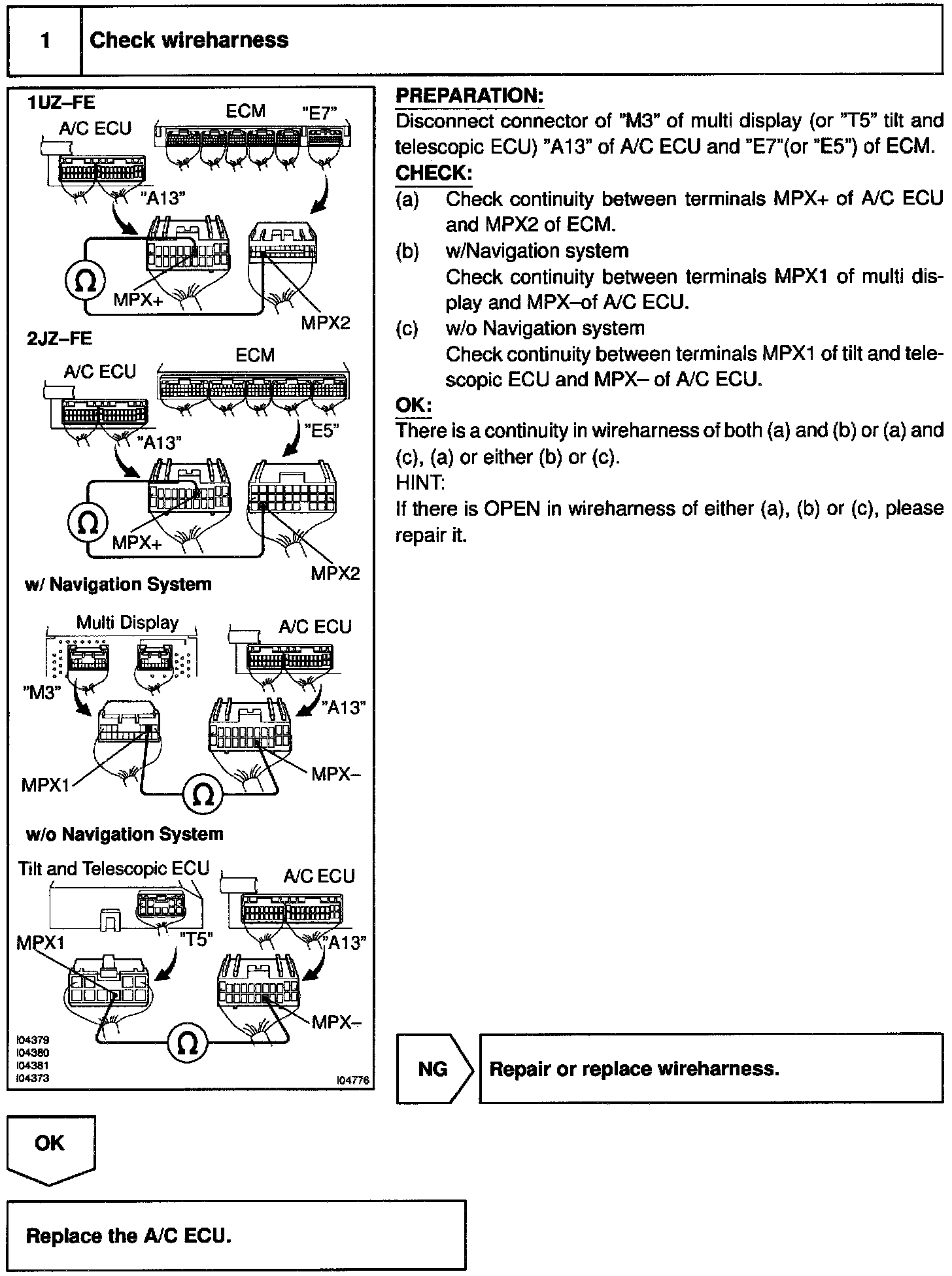

Step 1:

INSPECTION PROCEDURE
