DTC 55

DTC 55 Body No.2 P1 Switch Malfunction

CIRCUIT DESCRIPTION
This DTC is output when failure of P1 switch is detected.

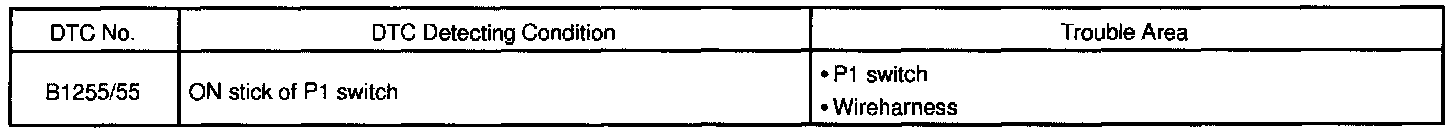

DETECTING CONDITION

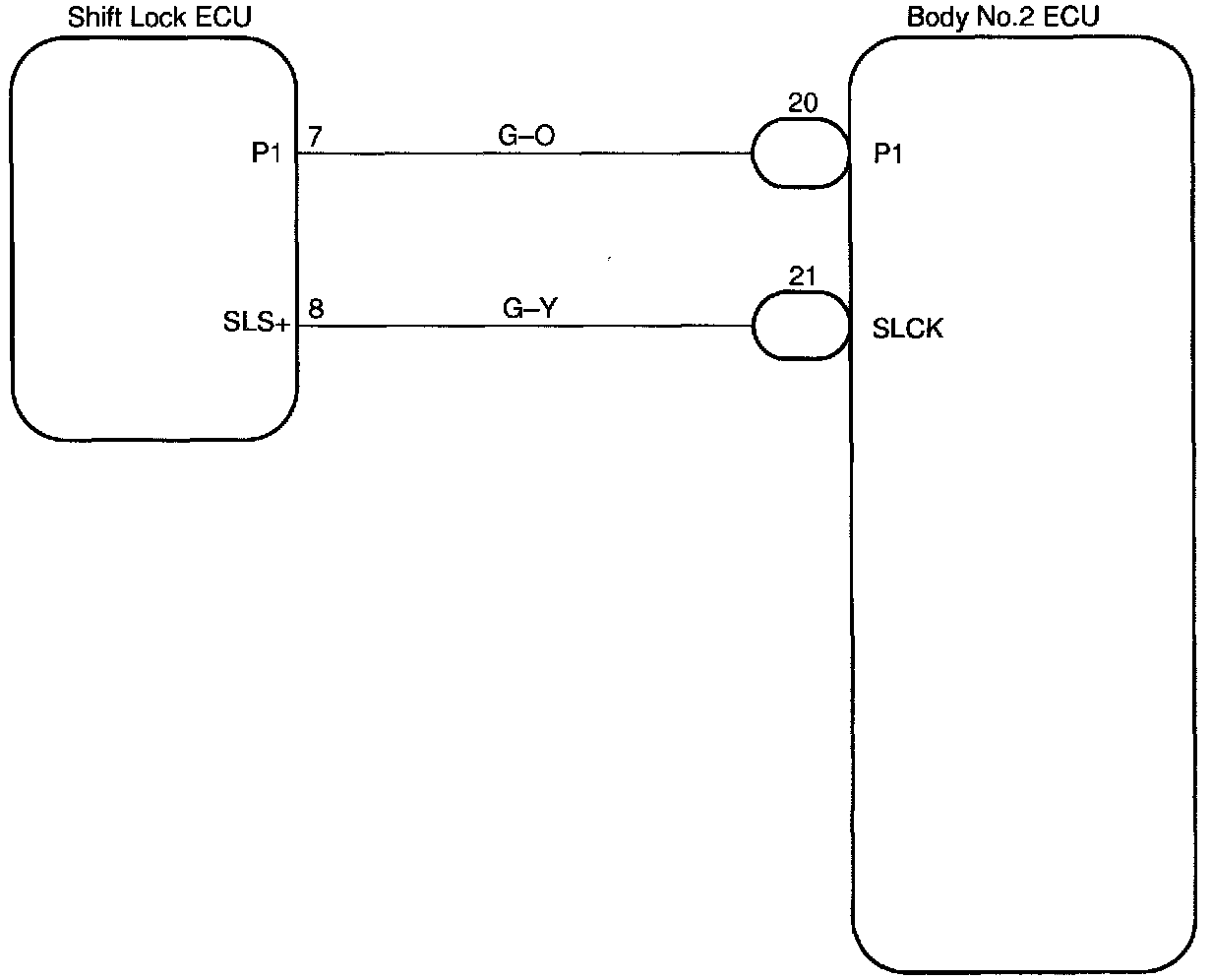

WIRING DIAGRAM

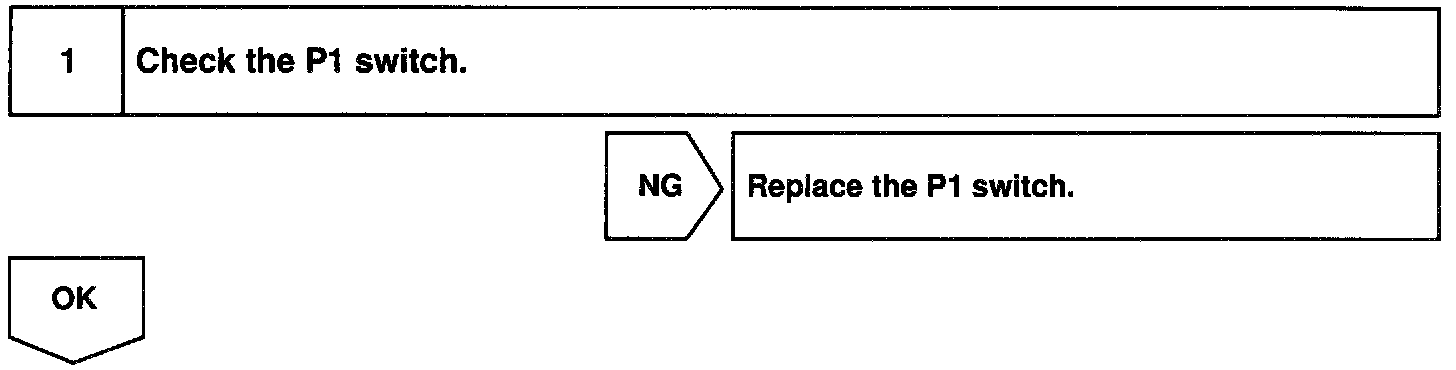

Step 1:

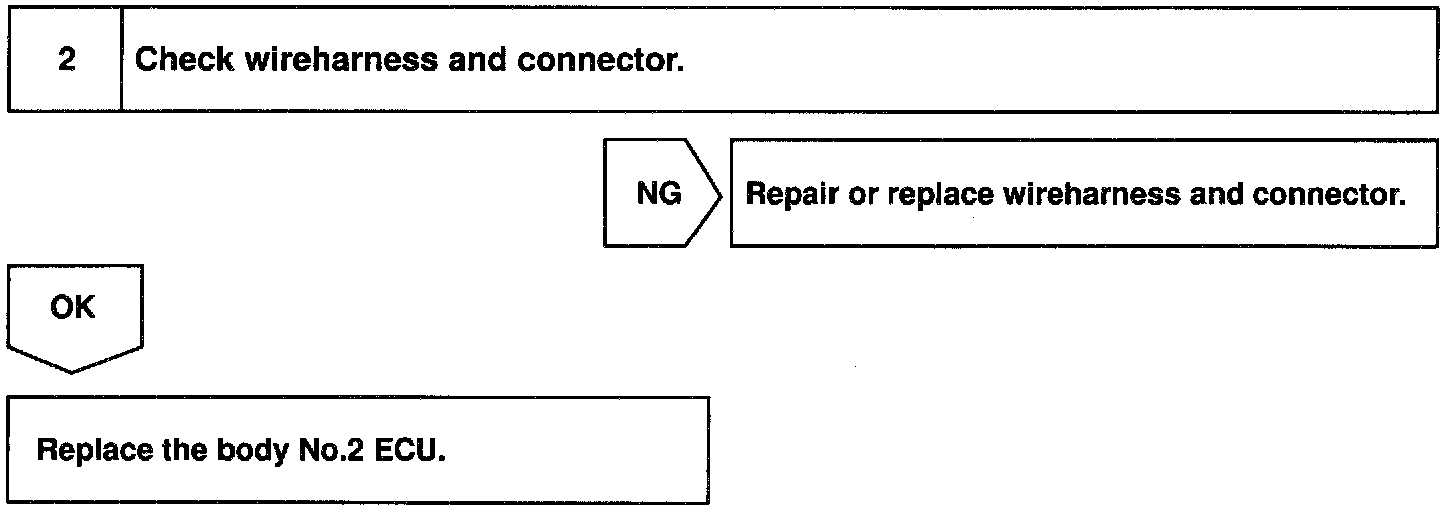

Step 2:

INSPECTION PROCEDURE
