DTC 34

DTC 34 Jam Protection Pulse Switch Circuit on Passenger Door

CIRCUIT DESCRIPTION
These DTCs are output when a malfunction of pulse switch within power window motor is detected.

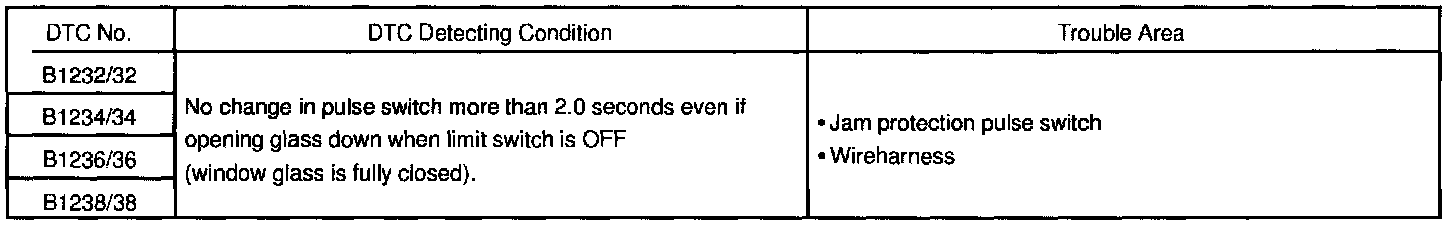

DETECTING CONDITION

HINT: Refer to Windows and Glass/Windows/Testing and Inspection Procedures for power window system inspection procedures.
