DTC 18

DTC 18 Body No. 2 ECU Communication Stop

CIRCUIT DESCRIPTION
This DTC is output when communication stops between Body No.2 ECU and Body No.1 ECU.

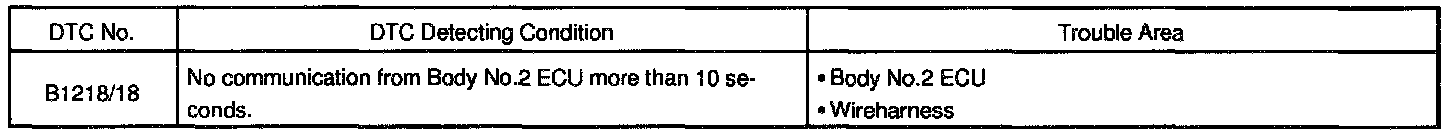

DETECTING CONDITION








WIRING DIAGRAM

Step 1:

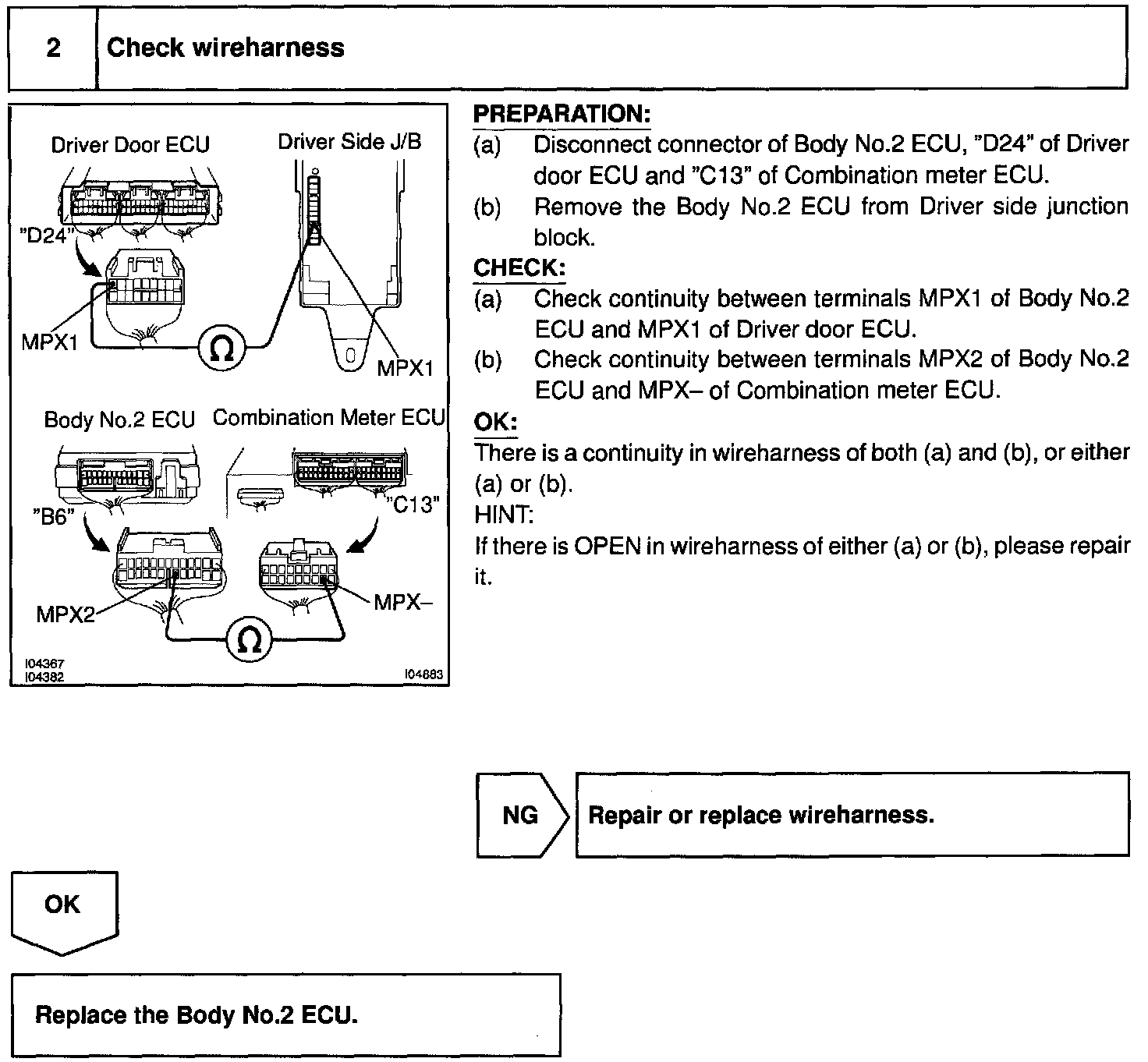

Step 2:

INSPECTION PROCEDURE
