DTC 17

DTC 17 Rear Left Door ECU Communication Stop

CIRCUIT DESCRIPTION
This DTC is output when communication stops between rear left door ECU and body No.1 ECU.

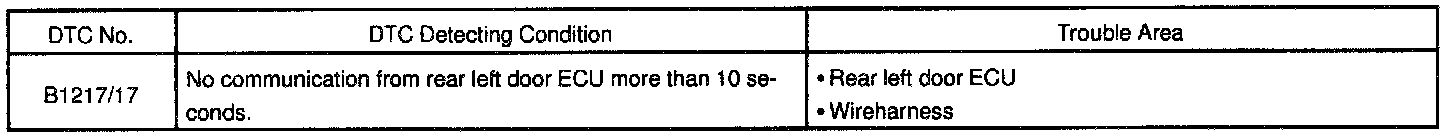

DETECTING CONDITION

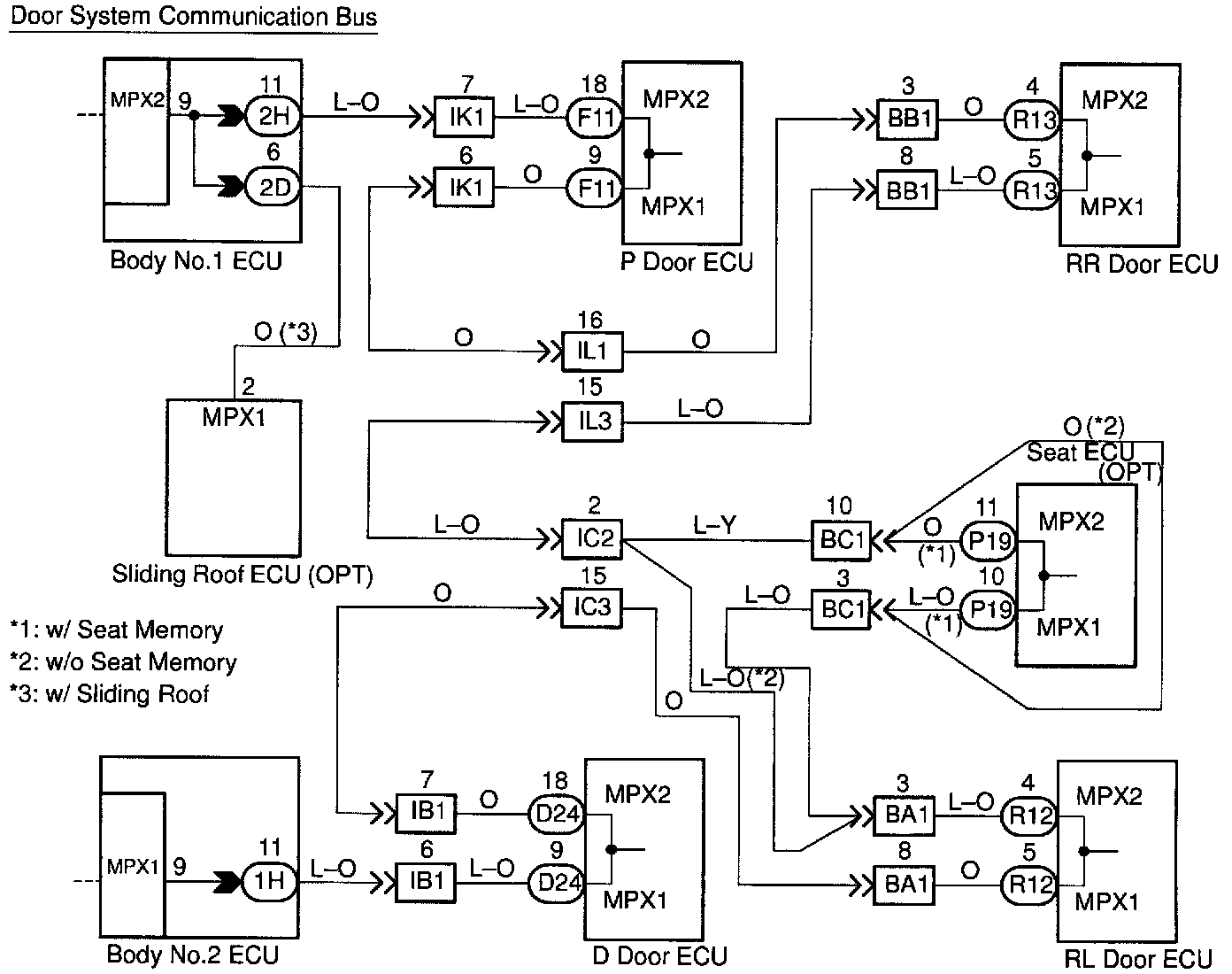

WIRING DIAGRAM

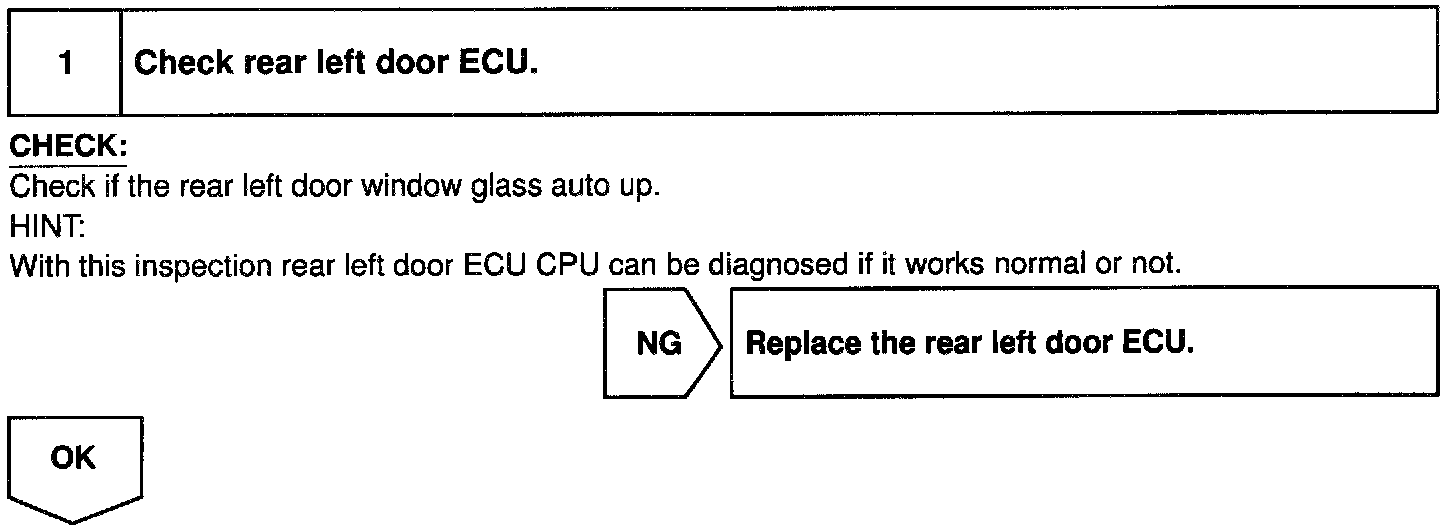

Step 1:

Step 2:

INSPECTION PROCEDURE
