DTC 12

DTC 12 Front Passenger Door ECU Communication Stop

CIRCUIT DESCRIPTION
This DTC is output when communication stops between front passenger door ECU and body No.1 ECU.

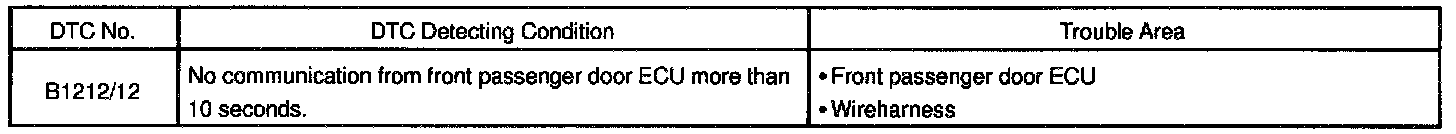

DETECTING CONDITION





WIRING DIAGRAM

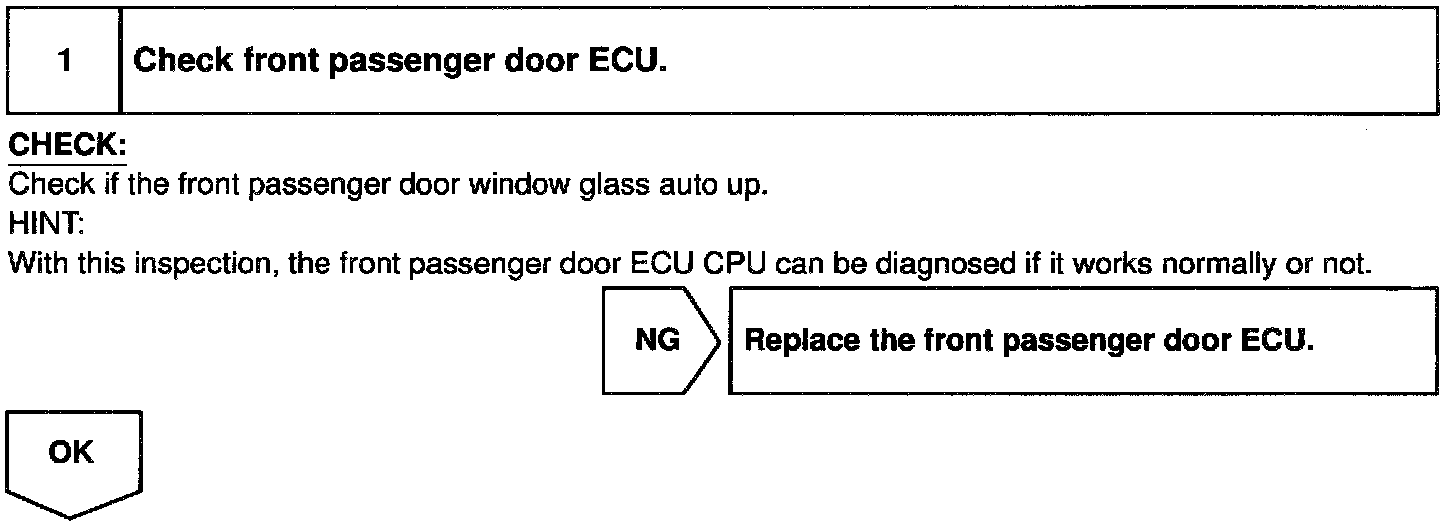

Step 1:

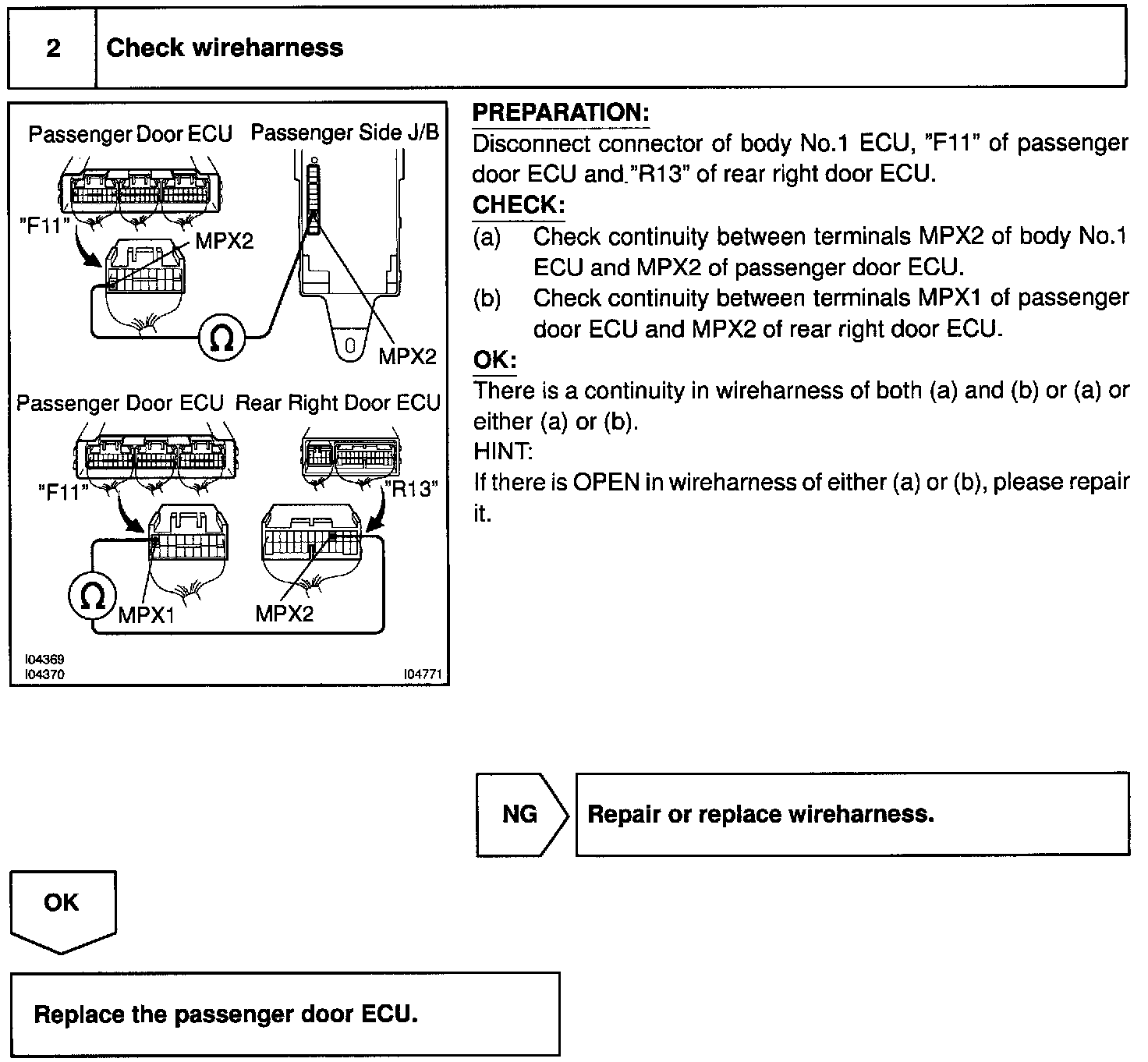

Step 2:

INSPECTION PROCEDURE
