DTC 54

DTC 54 Input Signal Circuit Abnormal

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

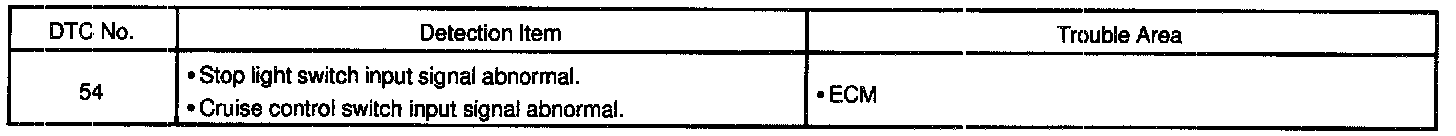

DETECTING CONDITION





WIRING DIAGRAM

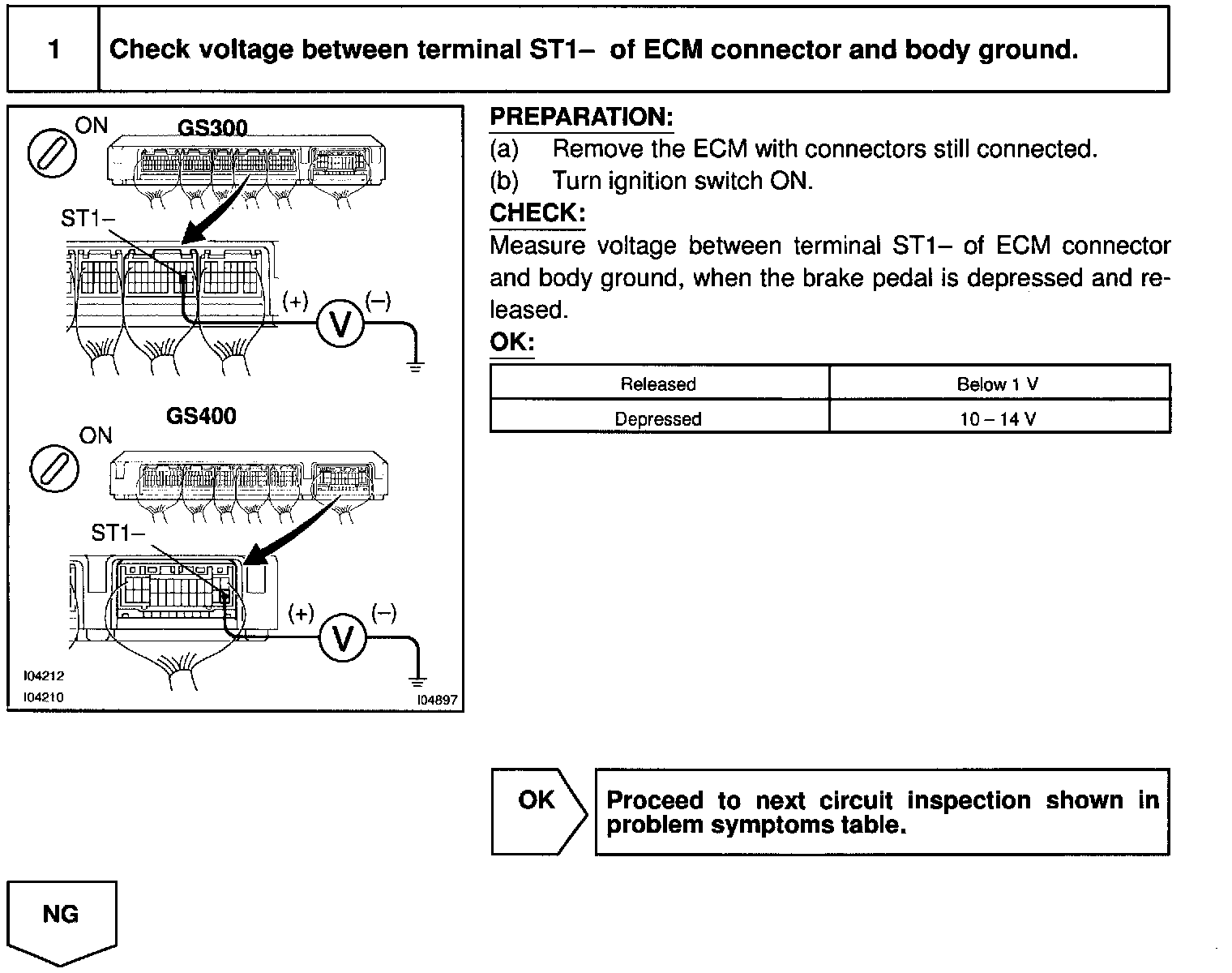

Step 1:

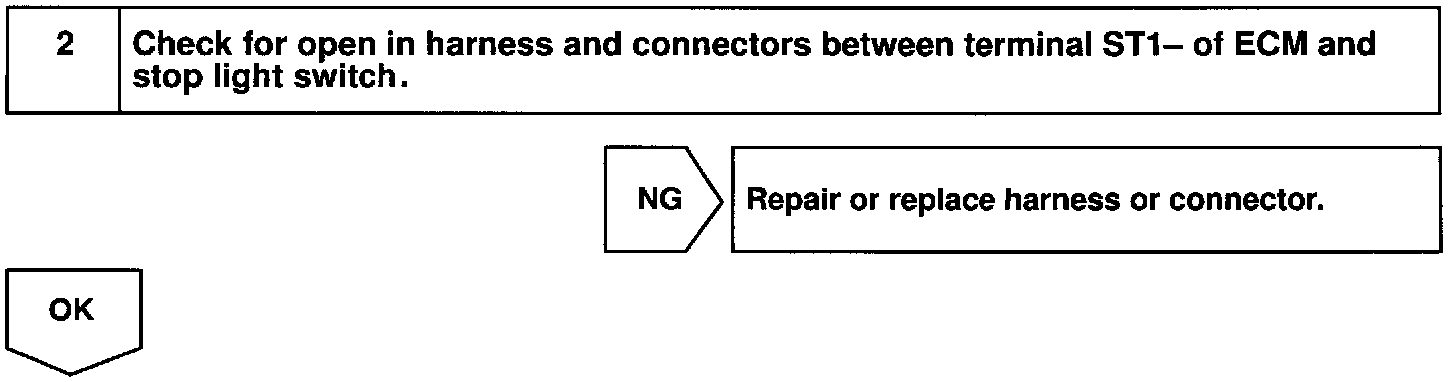

Step 2:

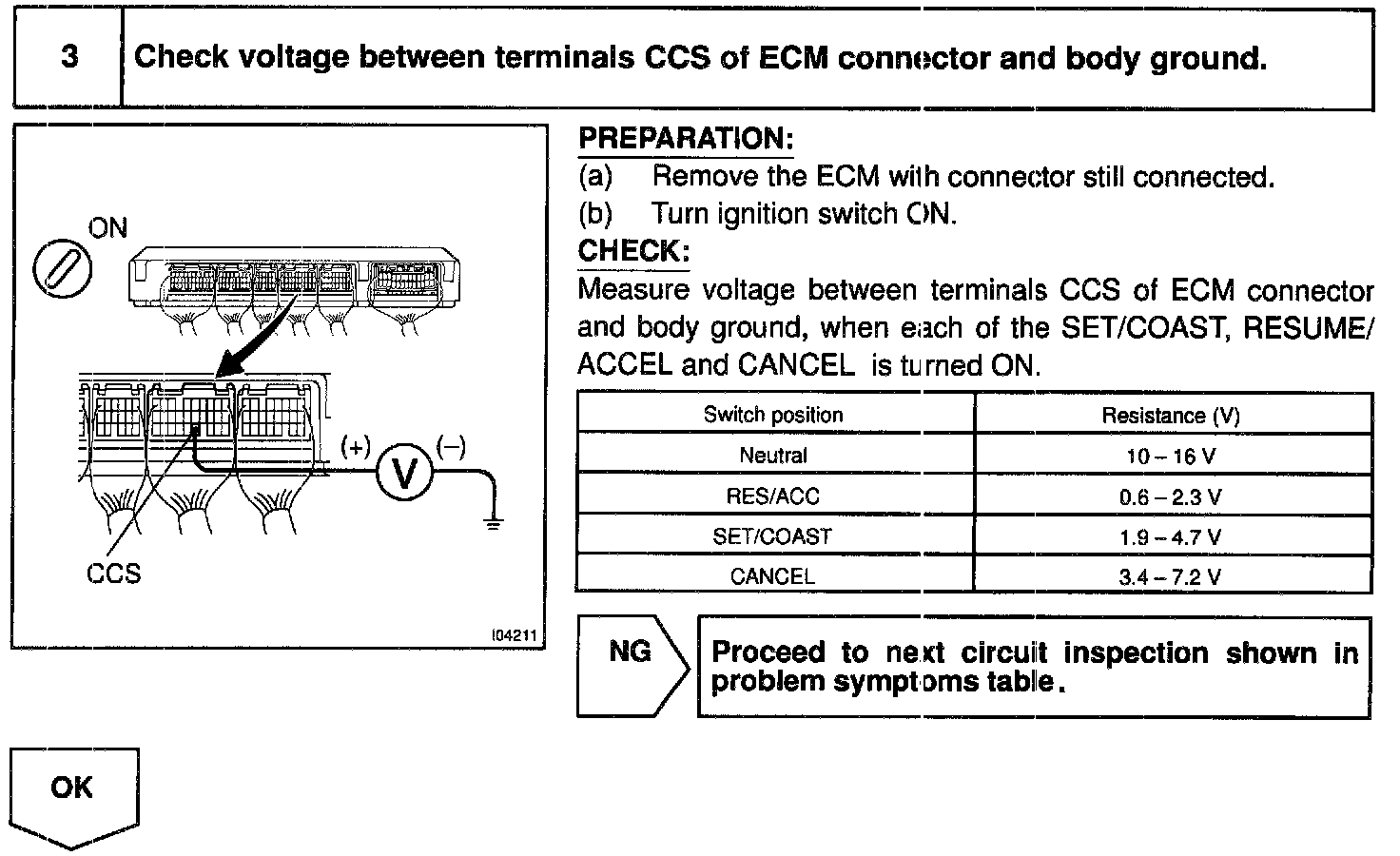

Step 3:

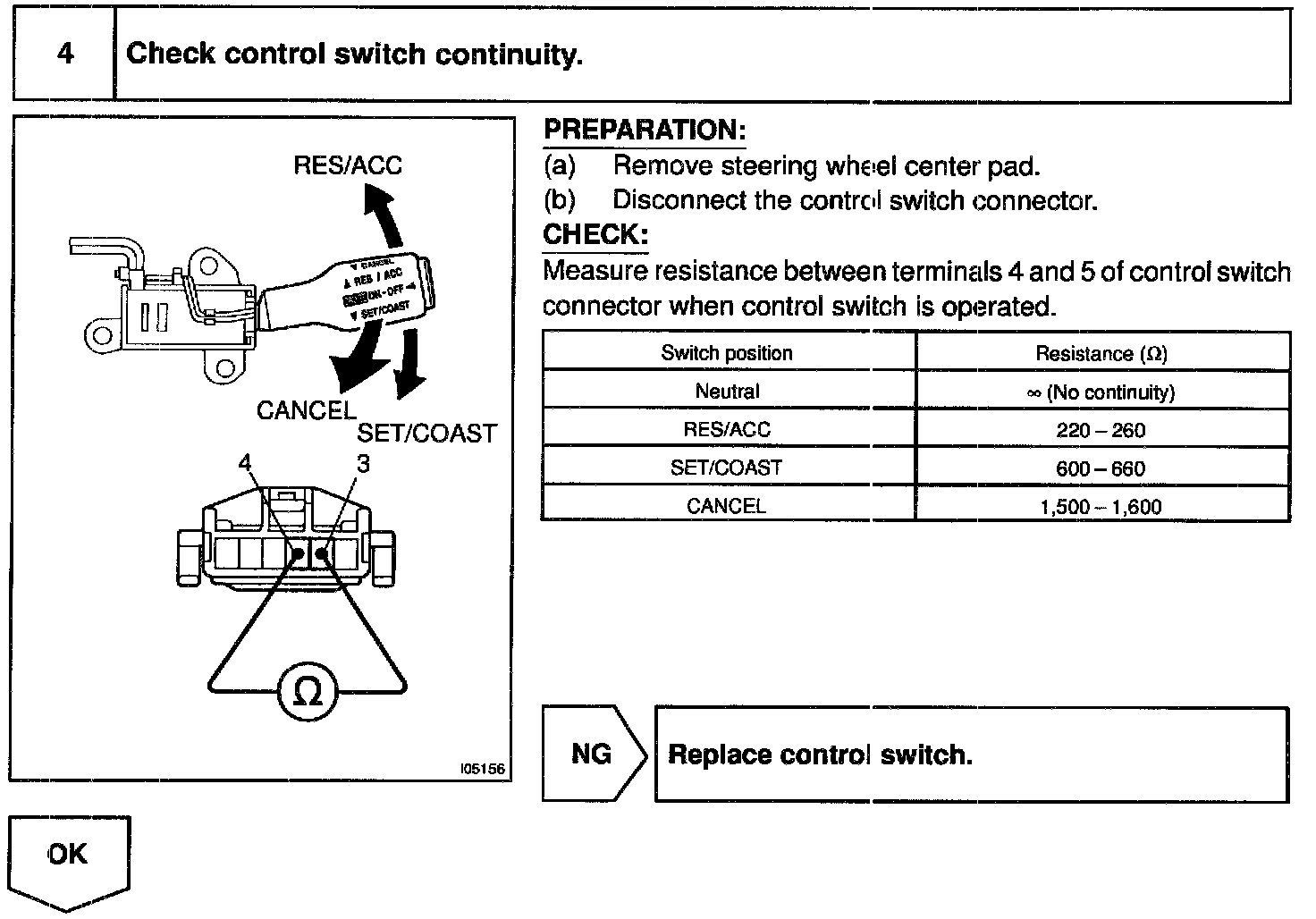

Step 4:

Step 5:

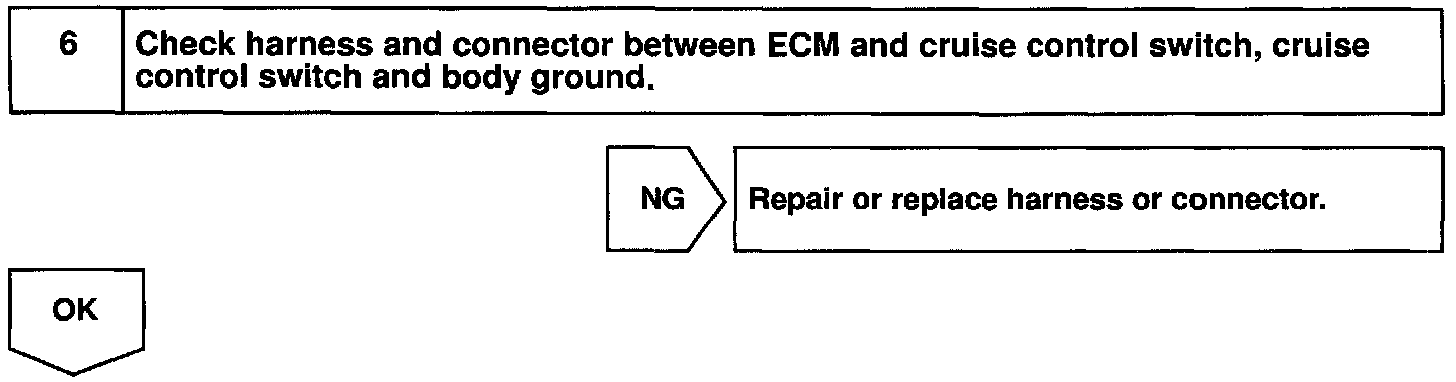

Step 6:

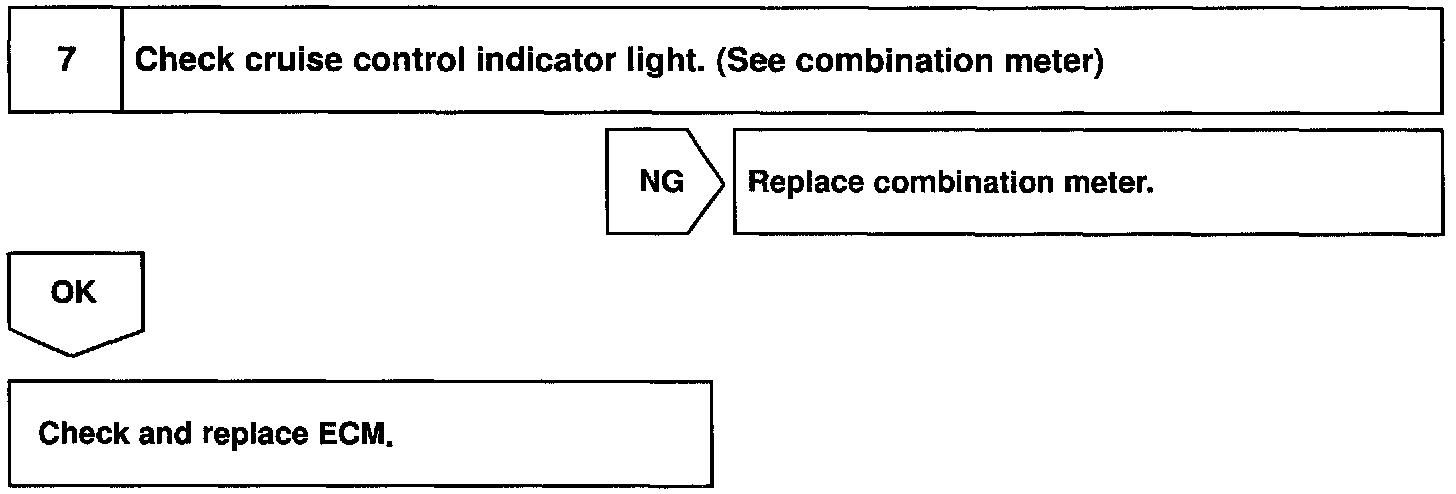

Step 7:

INSPECTION PROCEDURE
