DTC 11

DTC 11 Short In D and P Squib Circuit (to Ground)

CIRCUIT DESCRIPTION
The D and P squib circuits consist of the airbag sensor assembly spiral cable, steering wheel pad and front passenger airbag assembly.
It causes the SRS to deploy when the SRS deployment conditions are satisfied
DTC B0102/11 is recorded when ground short is detected in the D and P squib circuits.

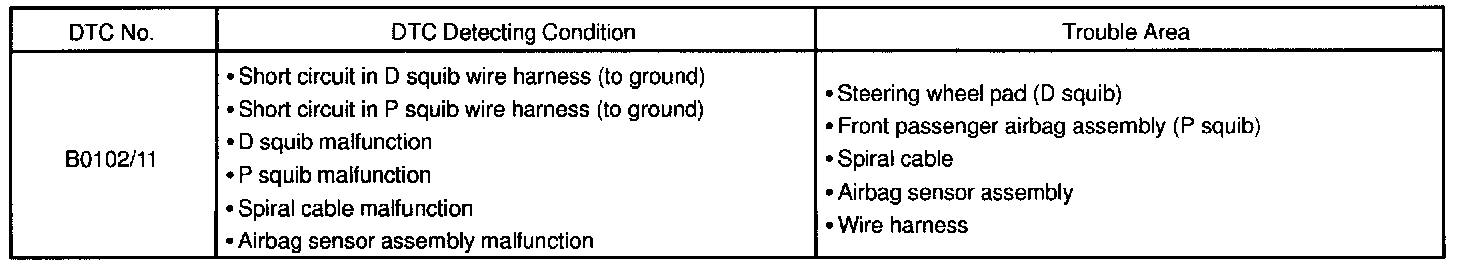

DETECTING CONDITION





WIRING DIAGRAM

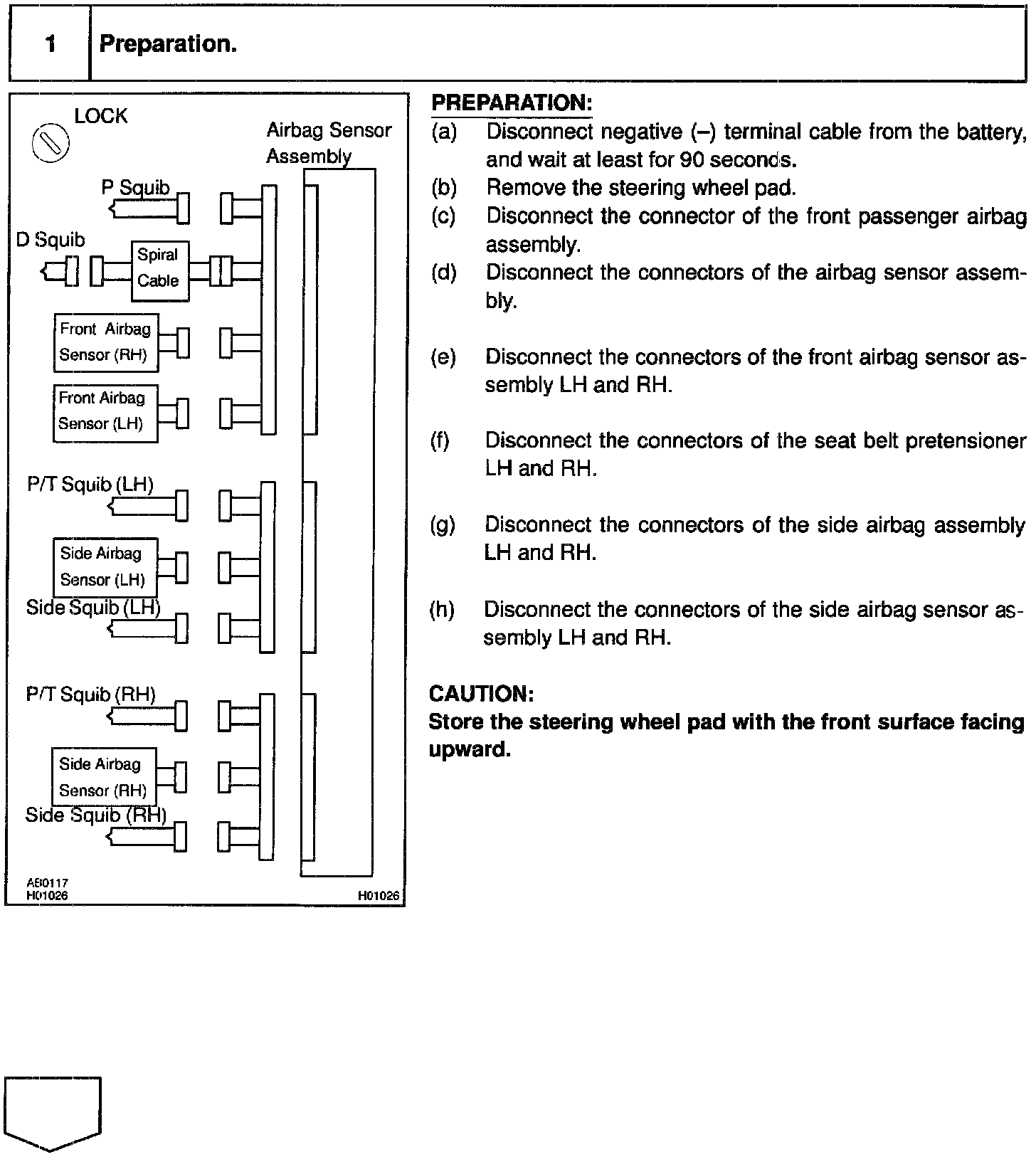

Step 1:

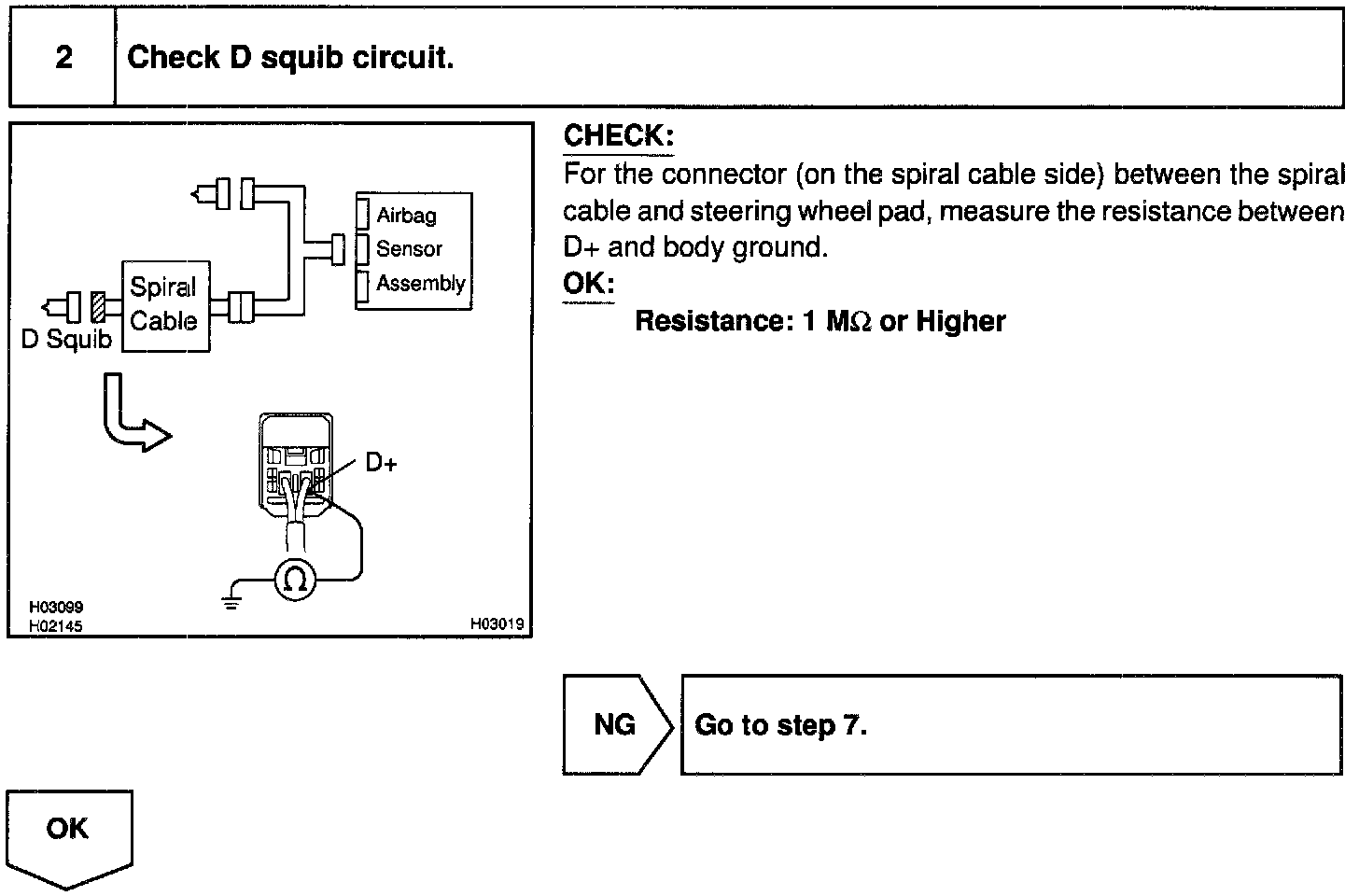

Step 2:

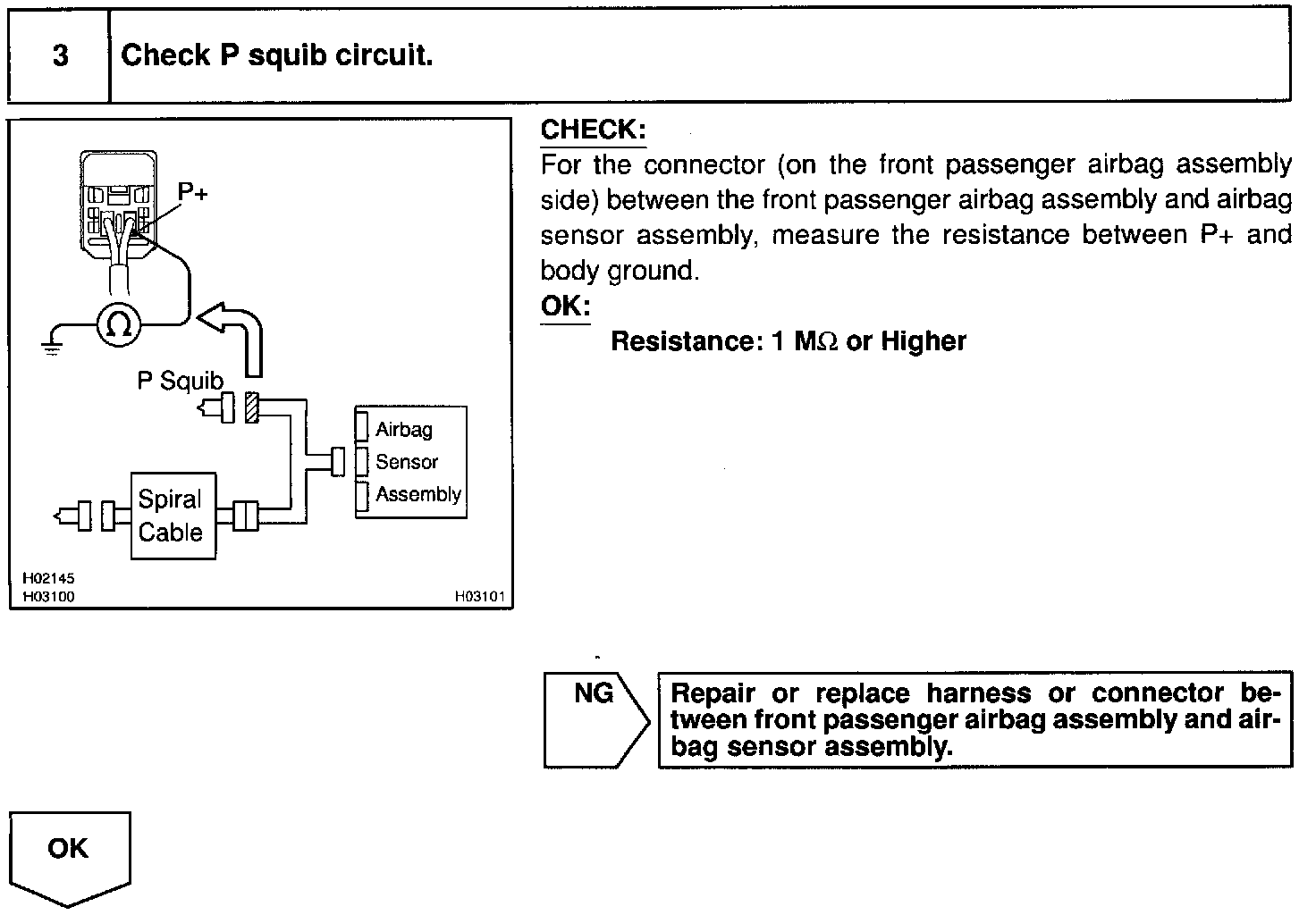

Step 3:

Step 4:

Step 5:

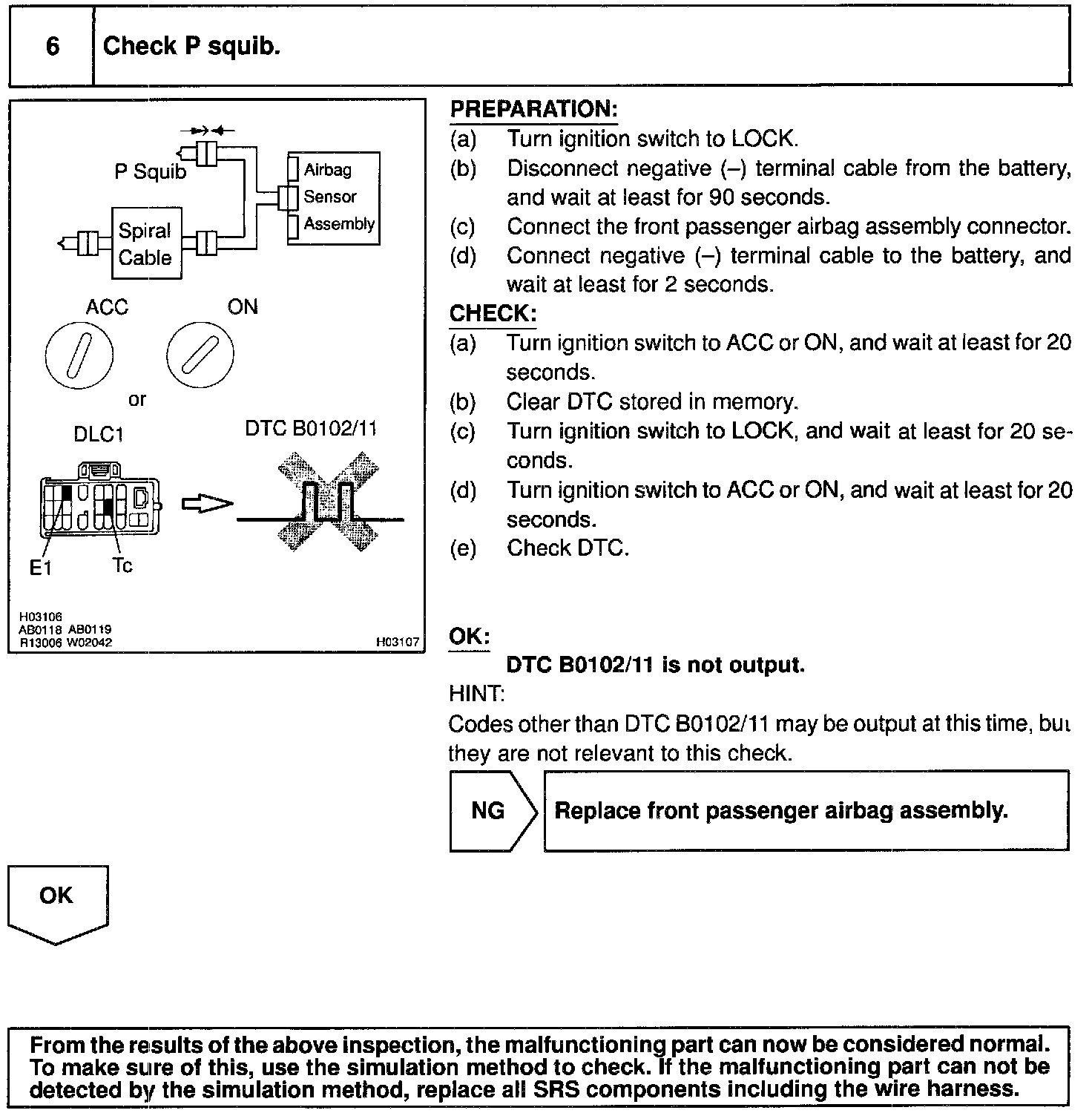

Step 6:

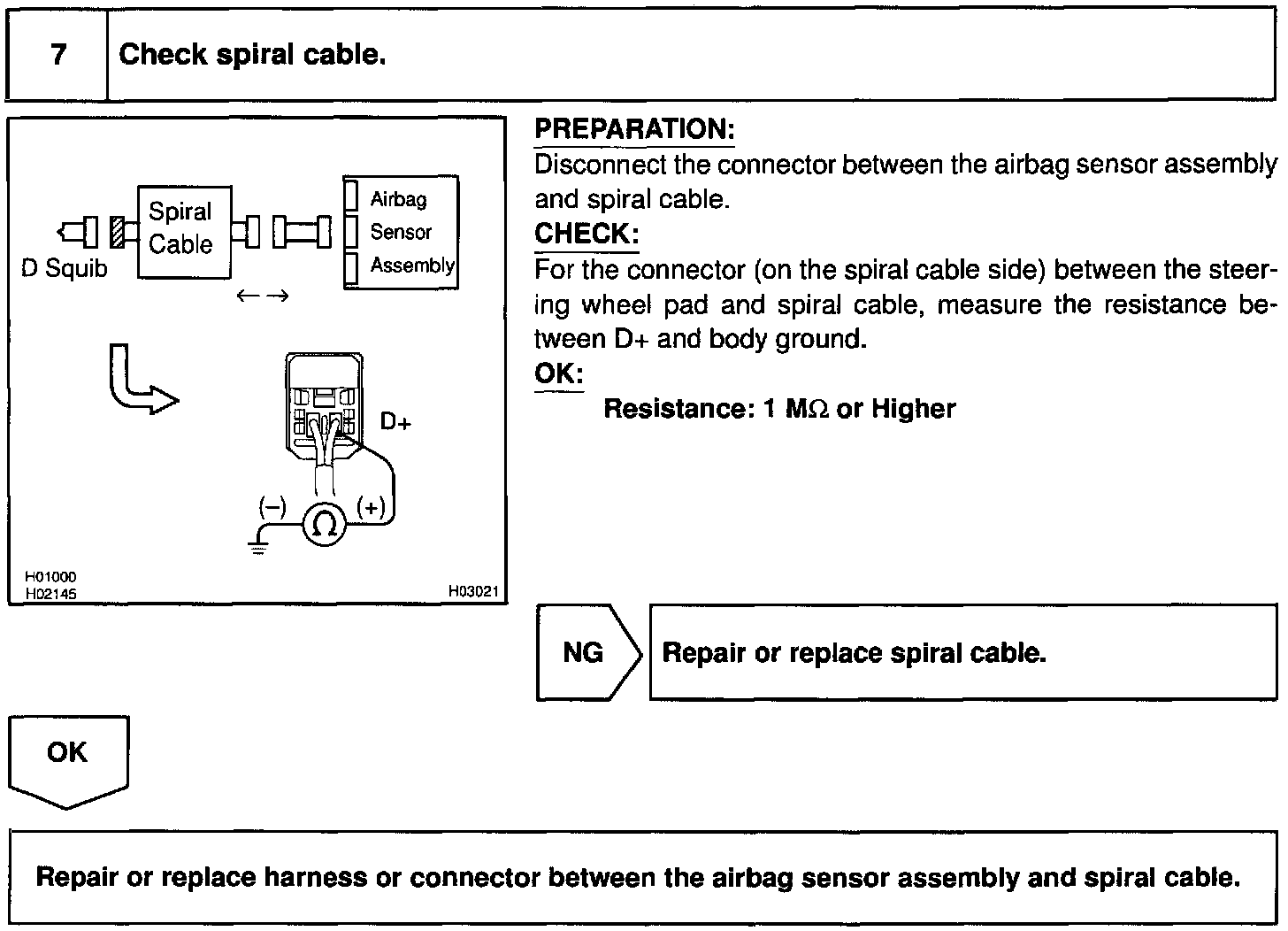

Step 7:

INSPECTION PROCEDURE
