ABS (Antilock Brake System)

Part 1 Of 2:

Part 2 Of 2:

NOTICE: hen removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18020, connect the terminals TC and E1 and remove the short pin.
- If any abnormality is not found when inspecting parts, inspect the ECU.

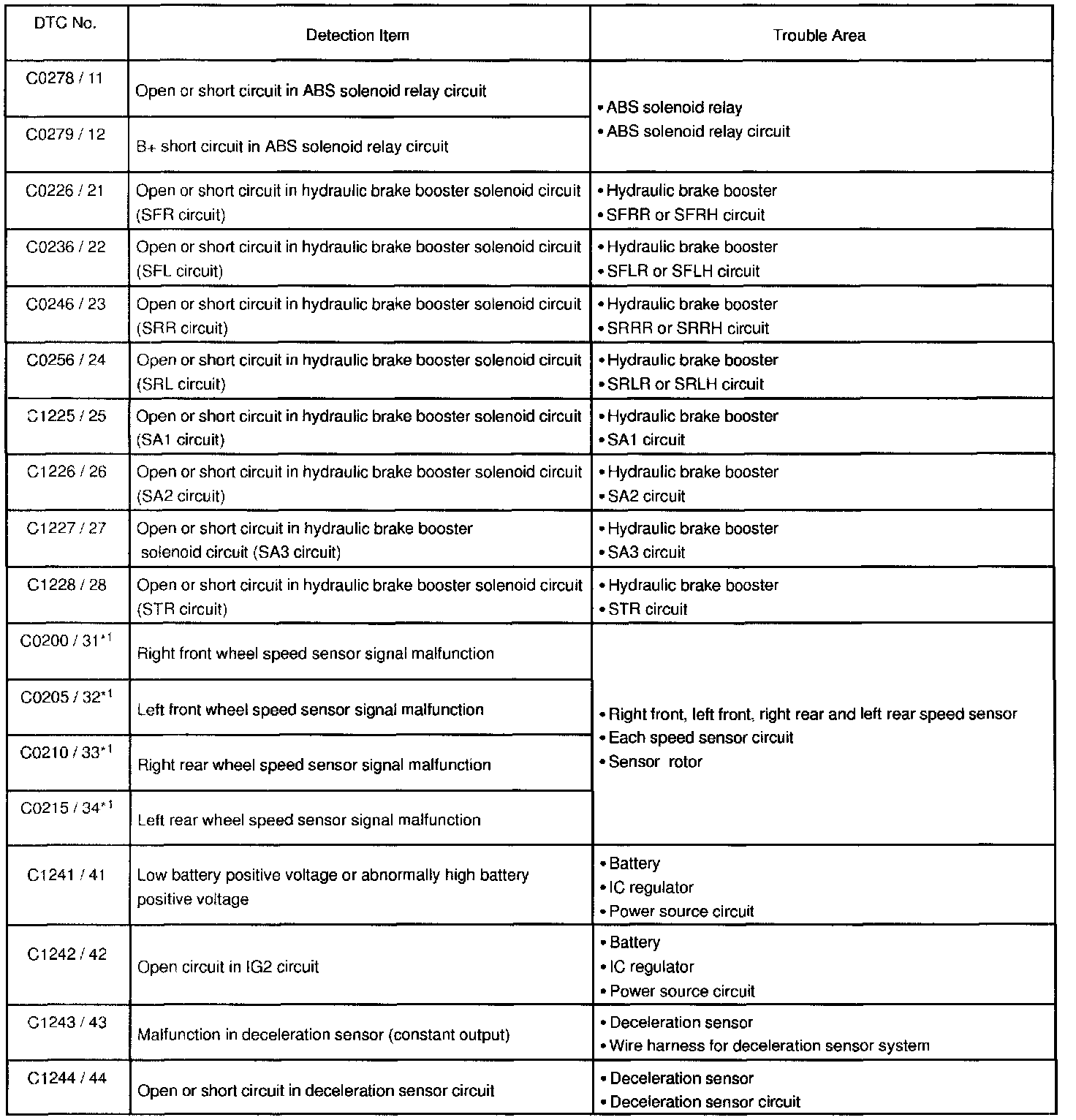

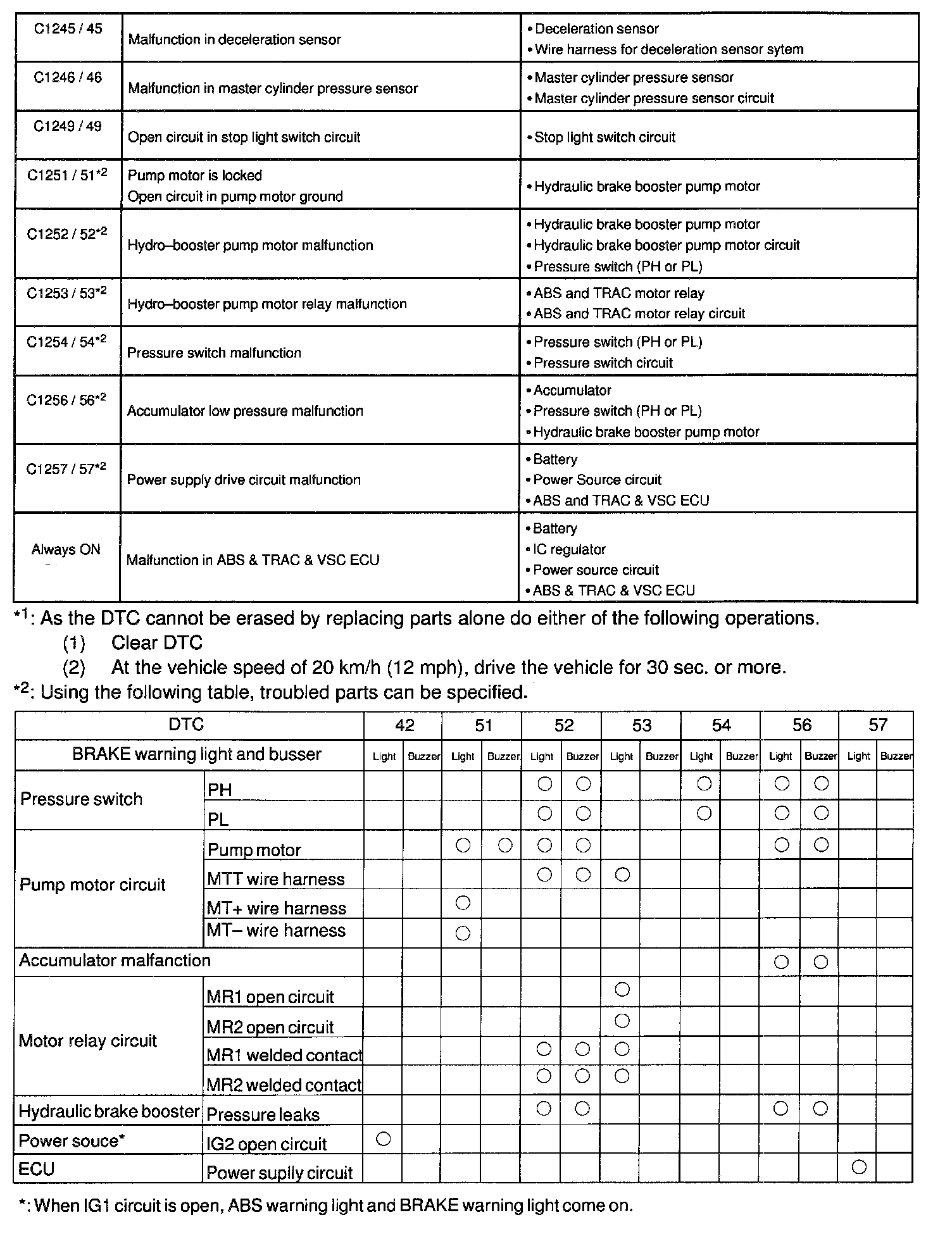

- If a malfunction code is displayed during the DTC check, check the circuit listed that code.
