Home >> Lexus >> 1998 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1256 >> ABS W/Traction Control (TRAC)

ABS W/Traction Control (TRAC)


DTC C1256 Accumulator Malfunction

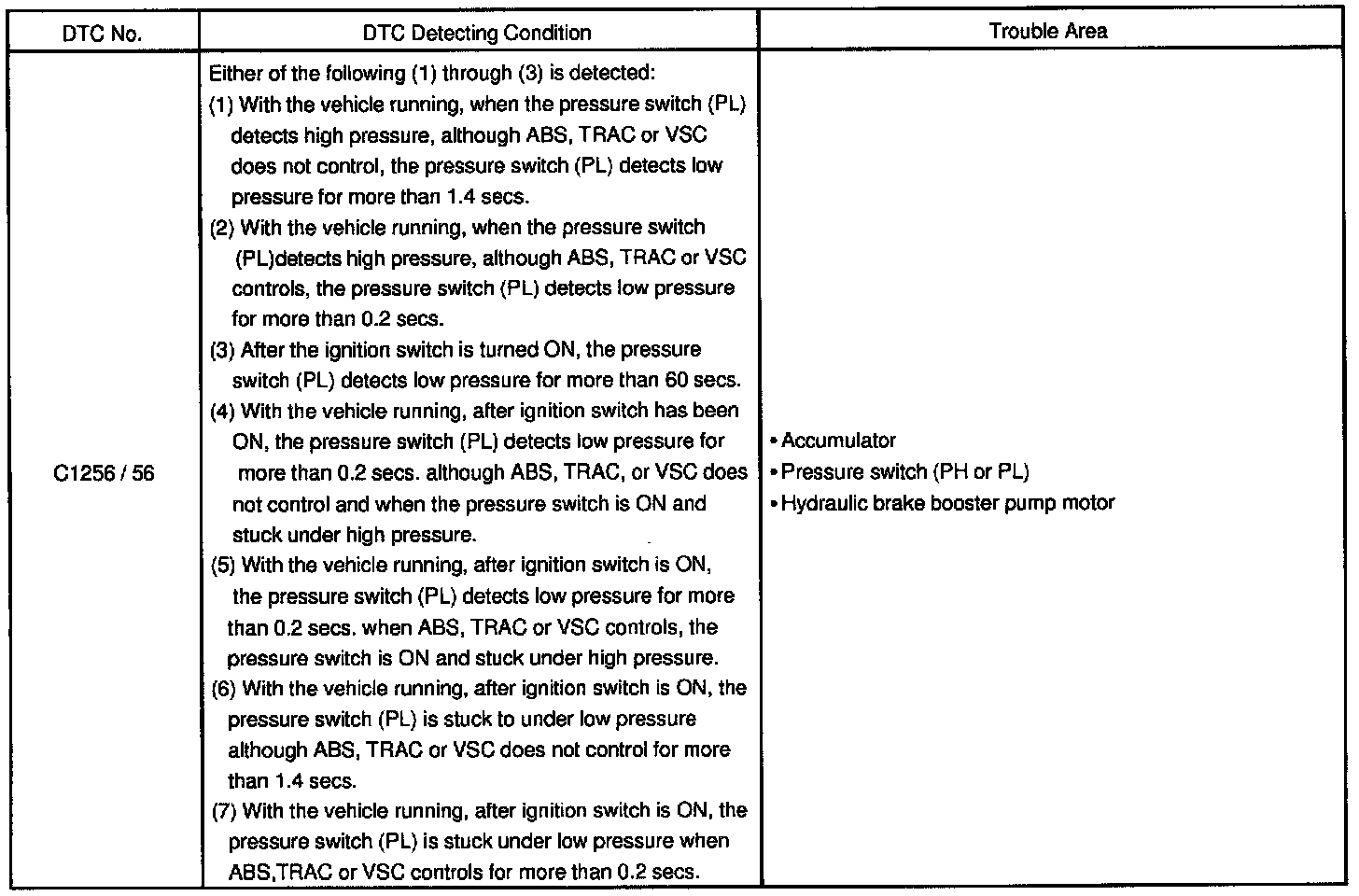

DETECTING CONDITION

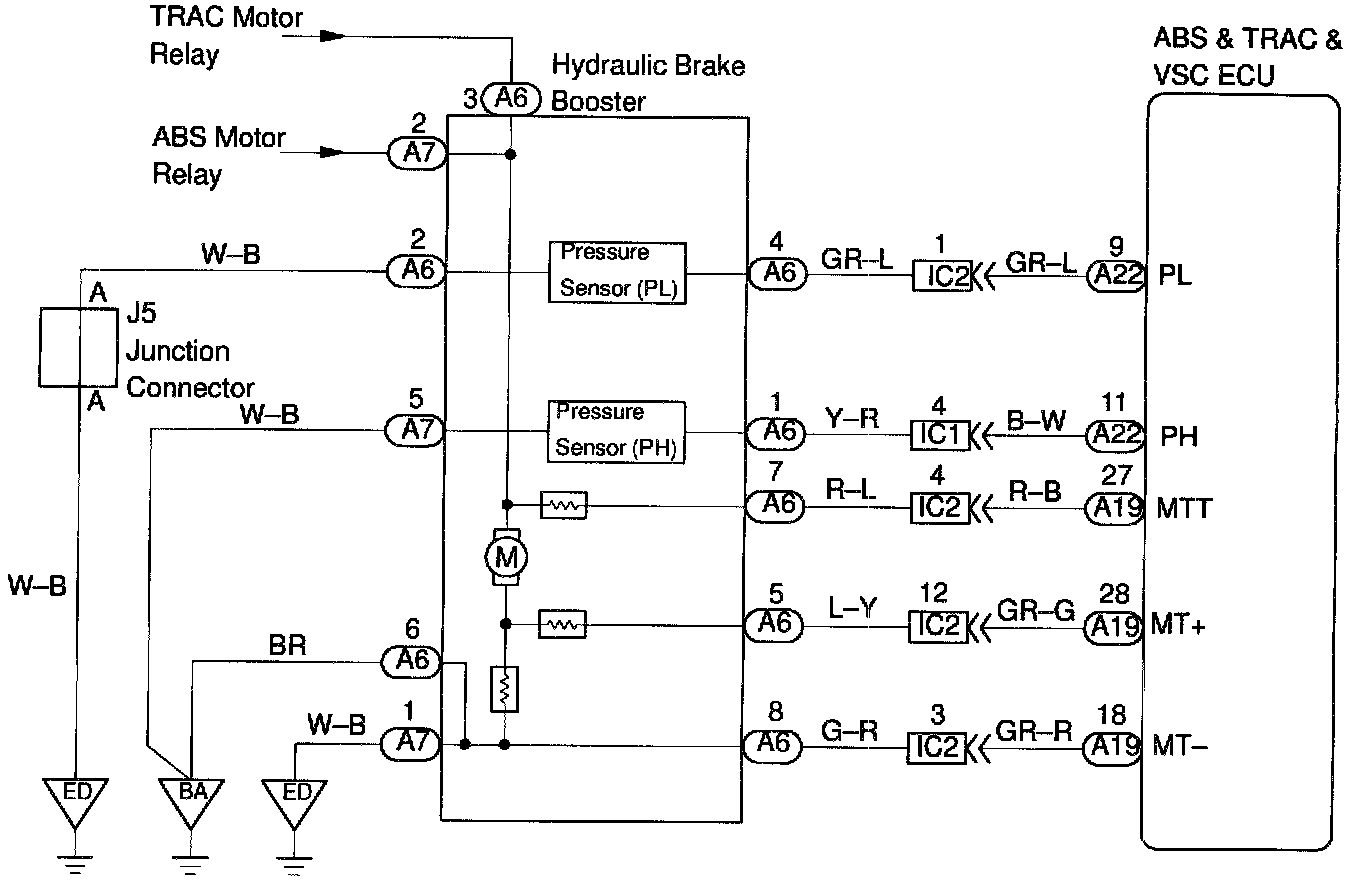

WIRING DIAGRAM

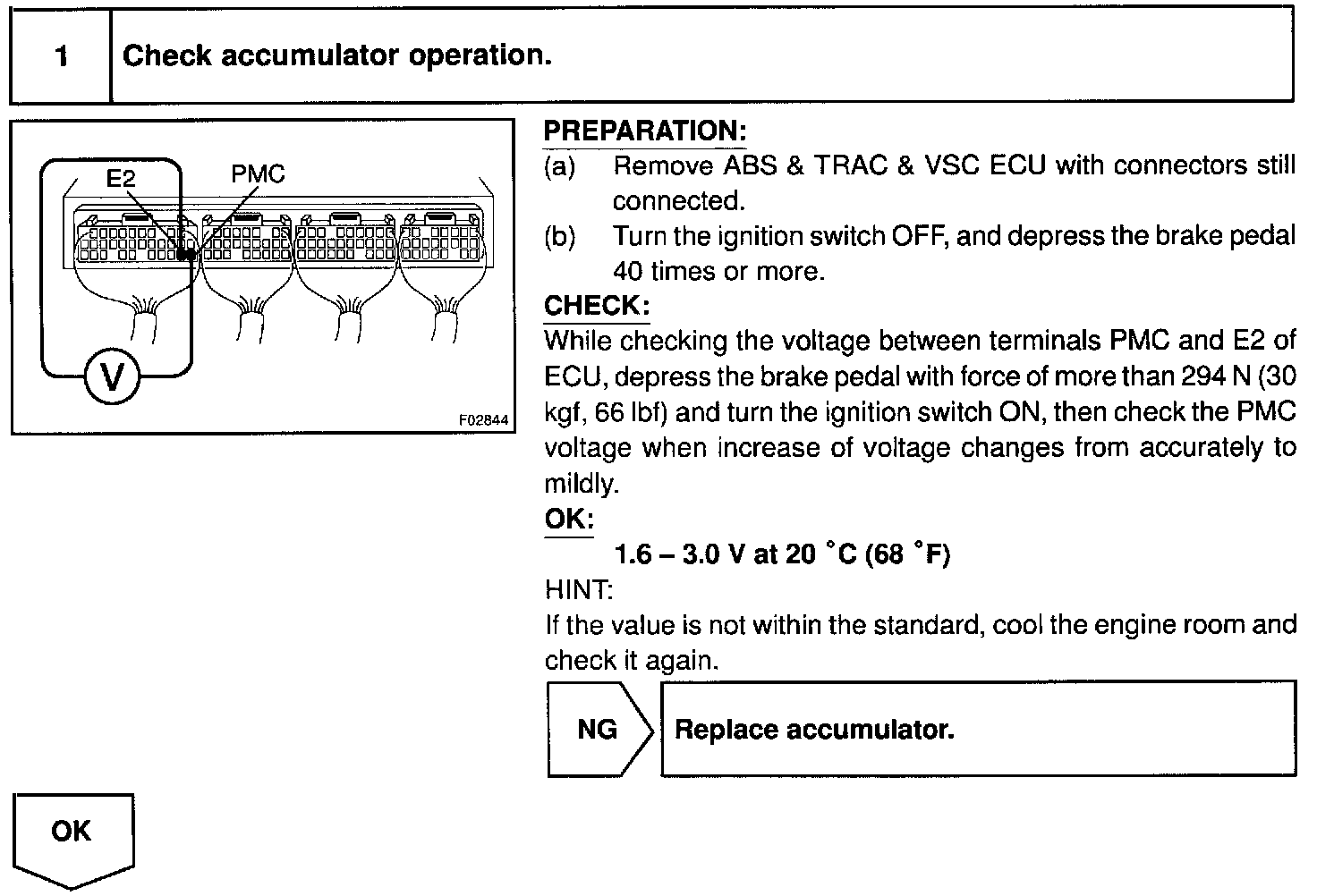

Step 1:

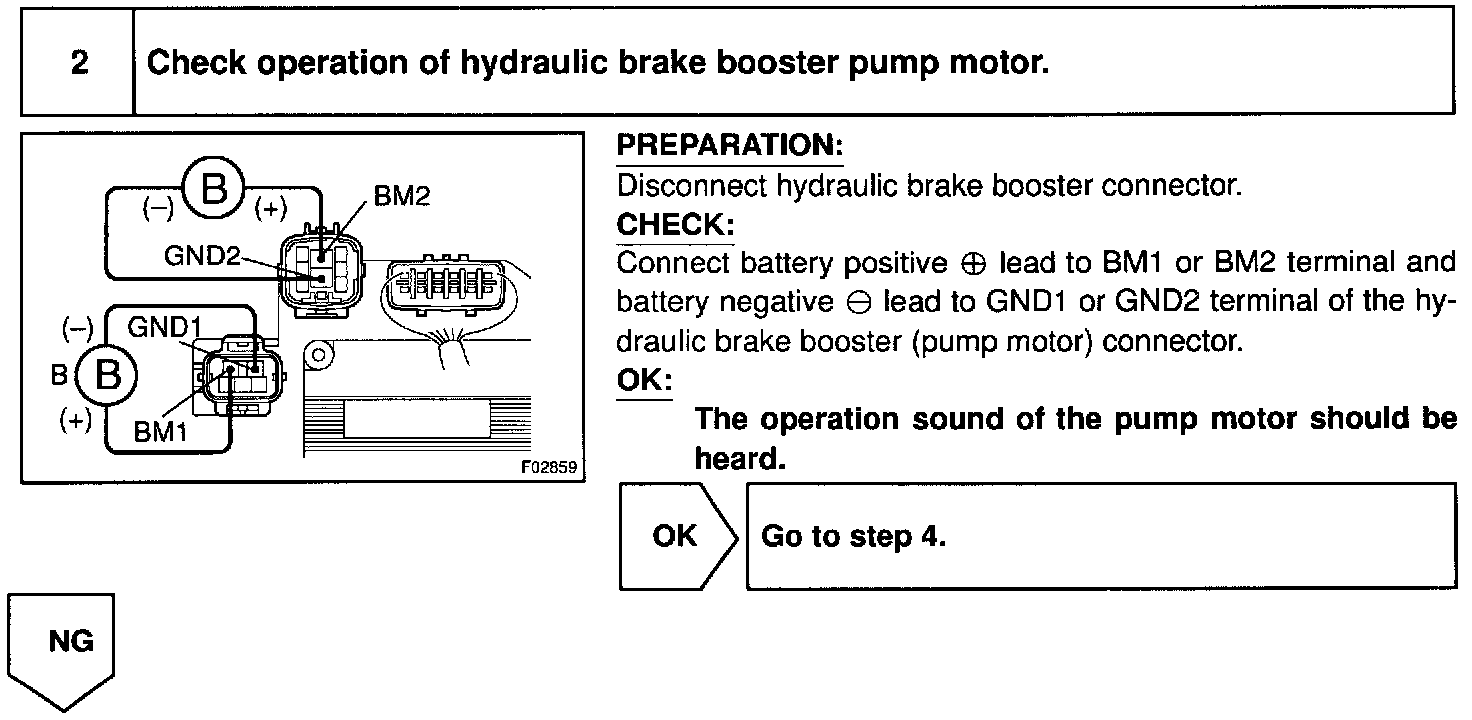

Step 2:

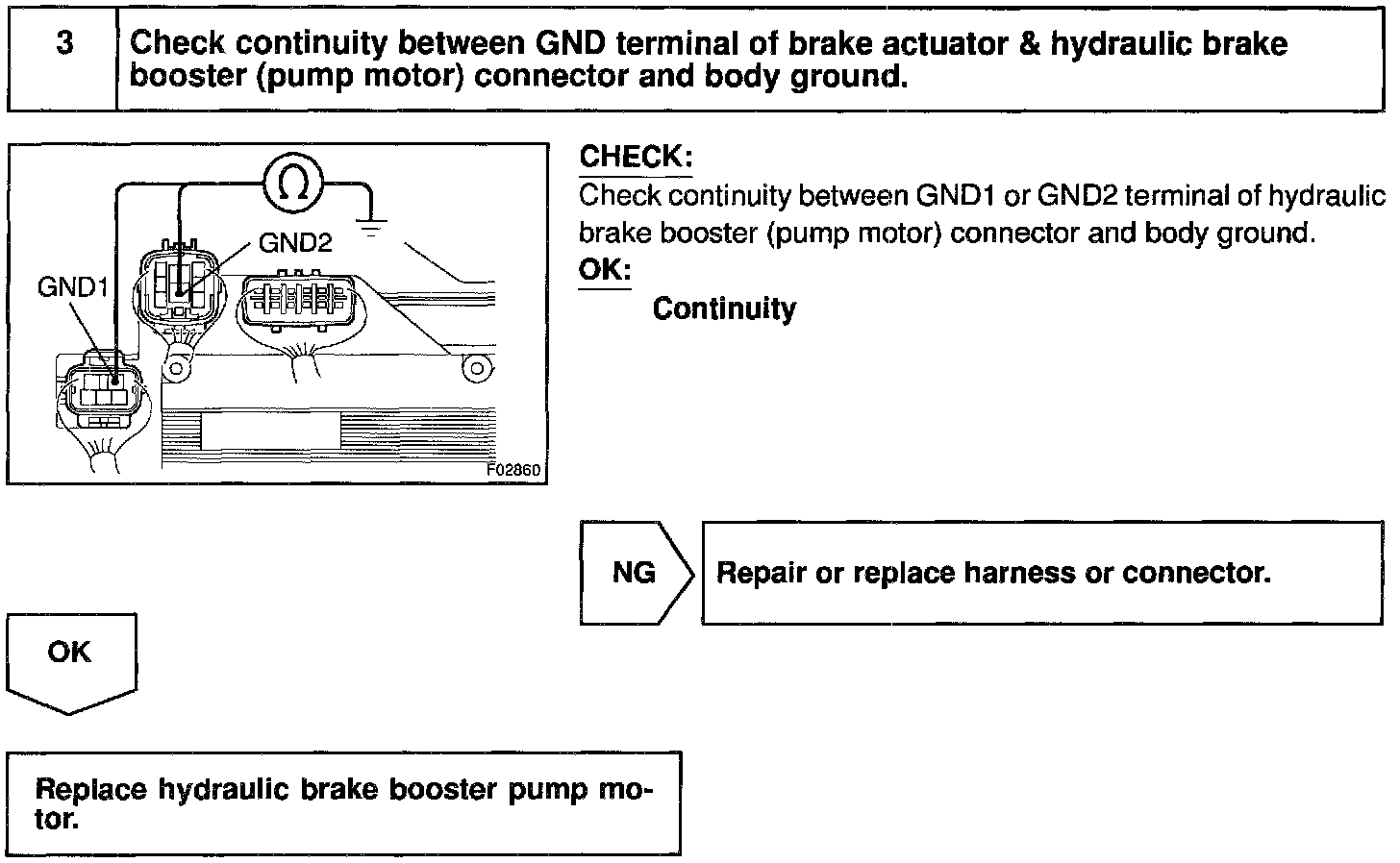

Step 3:

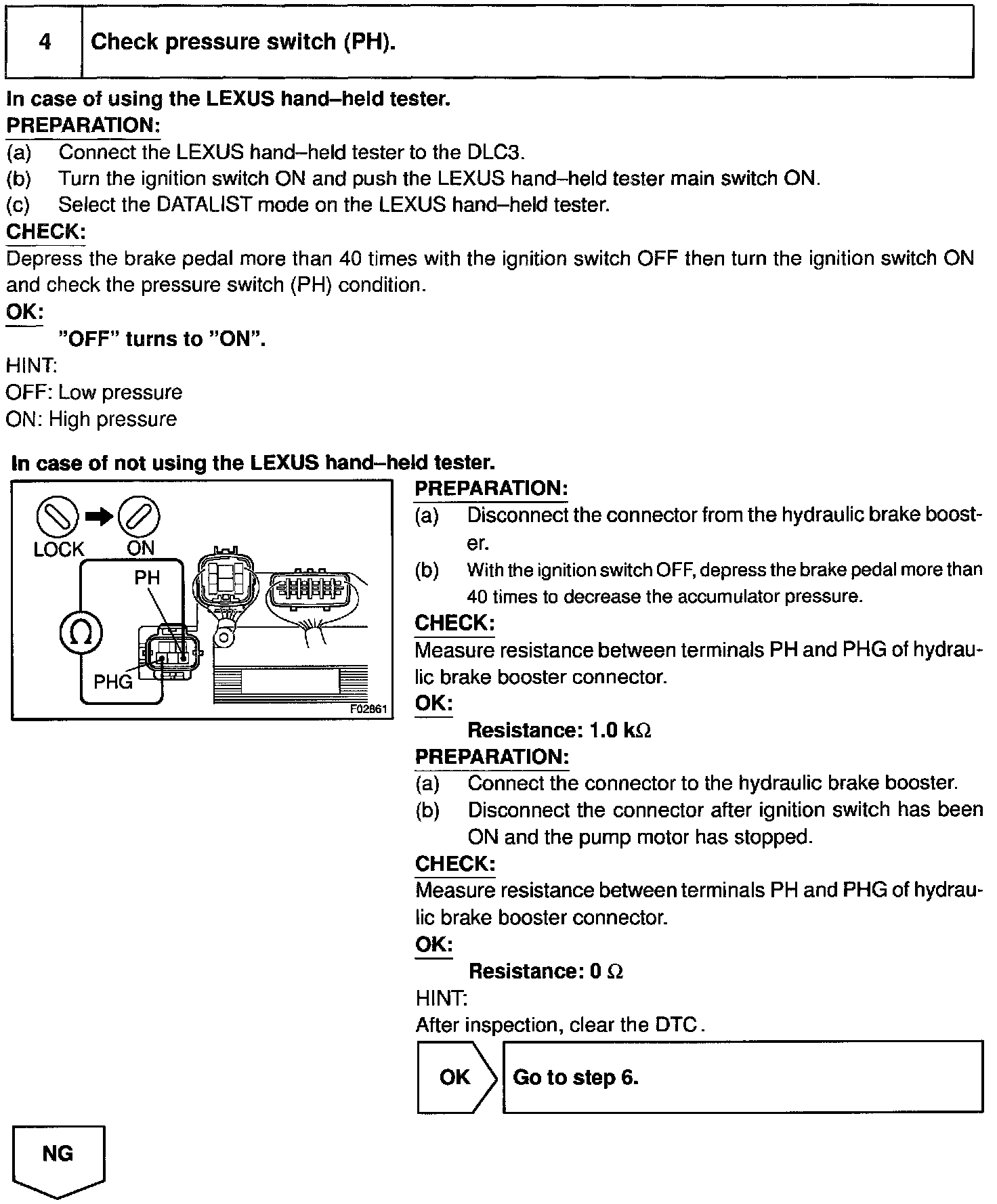

Step 4:

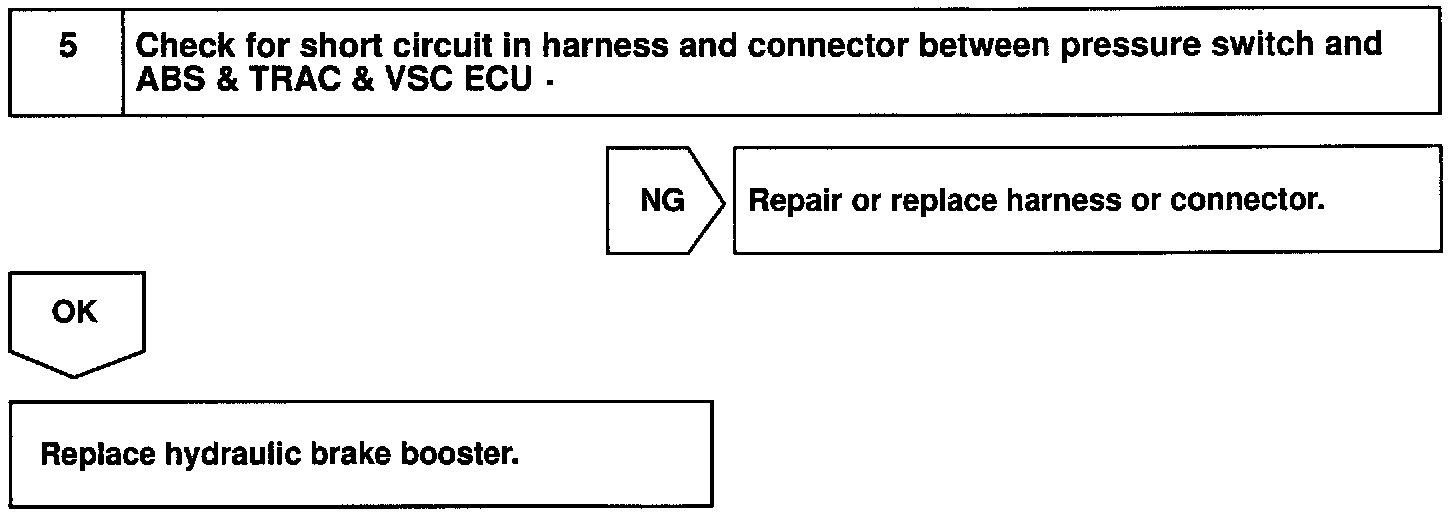

Step 5:

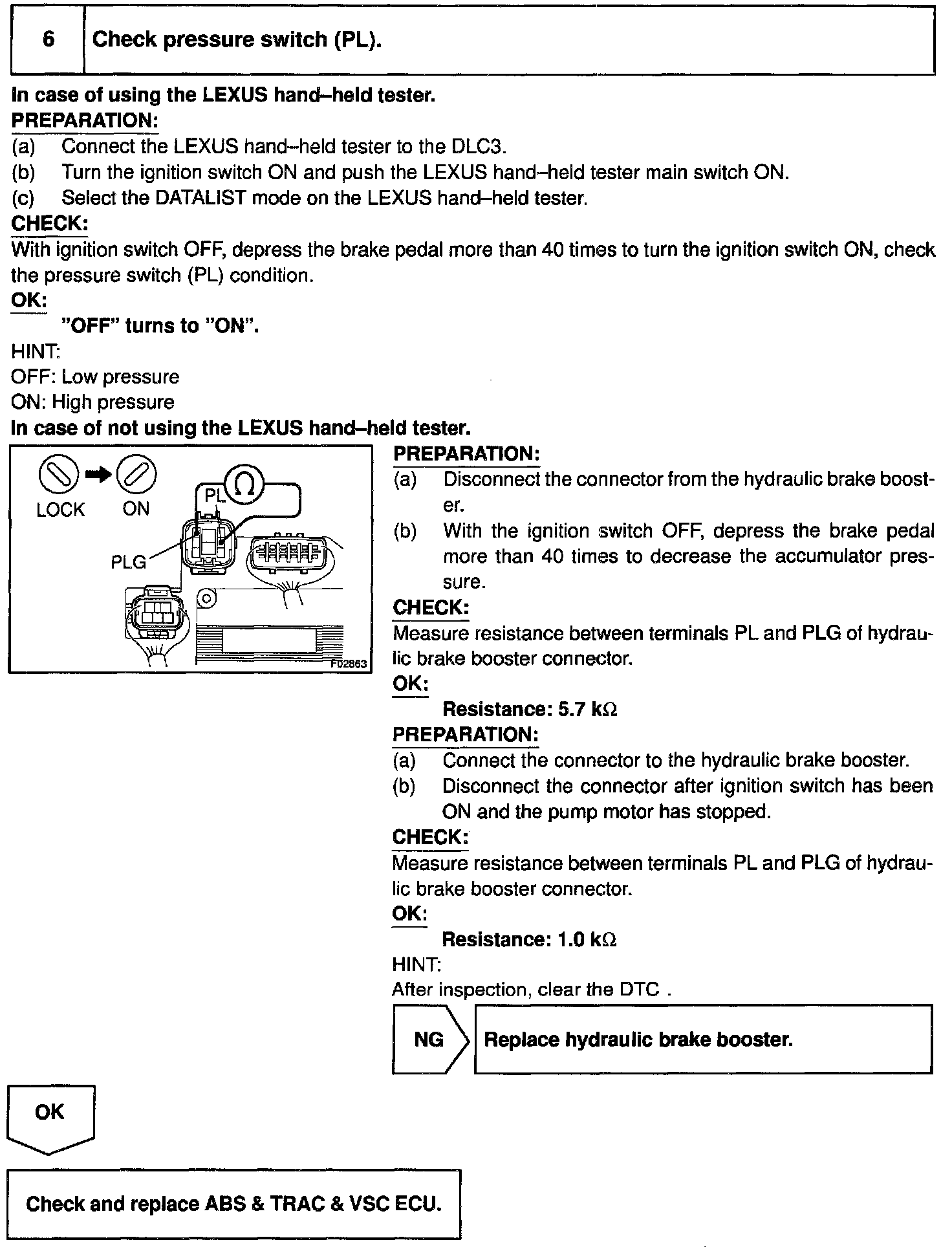

Step 6:





INSPECTION PROCEDURE
