DTC C1254 Pressure Switch Circuit

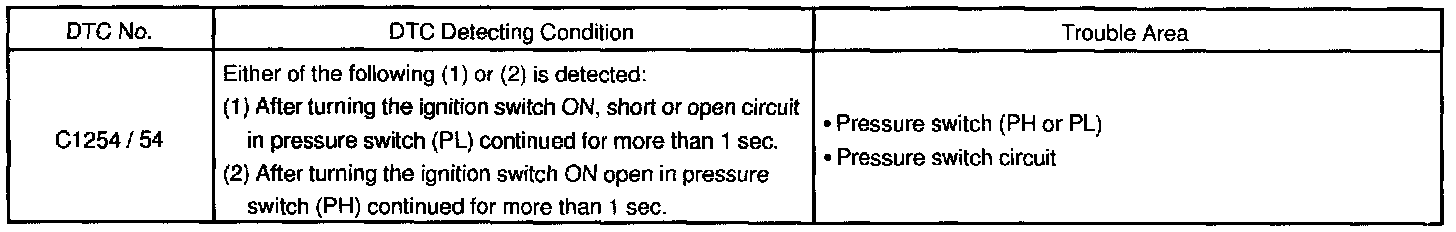

DETECTING CONDITION

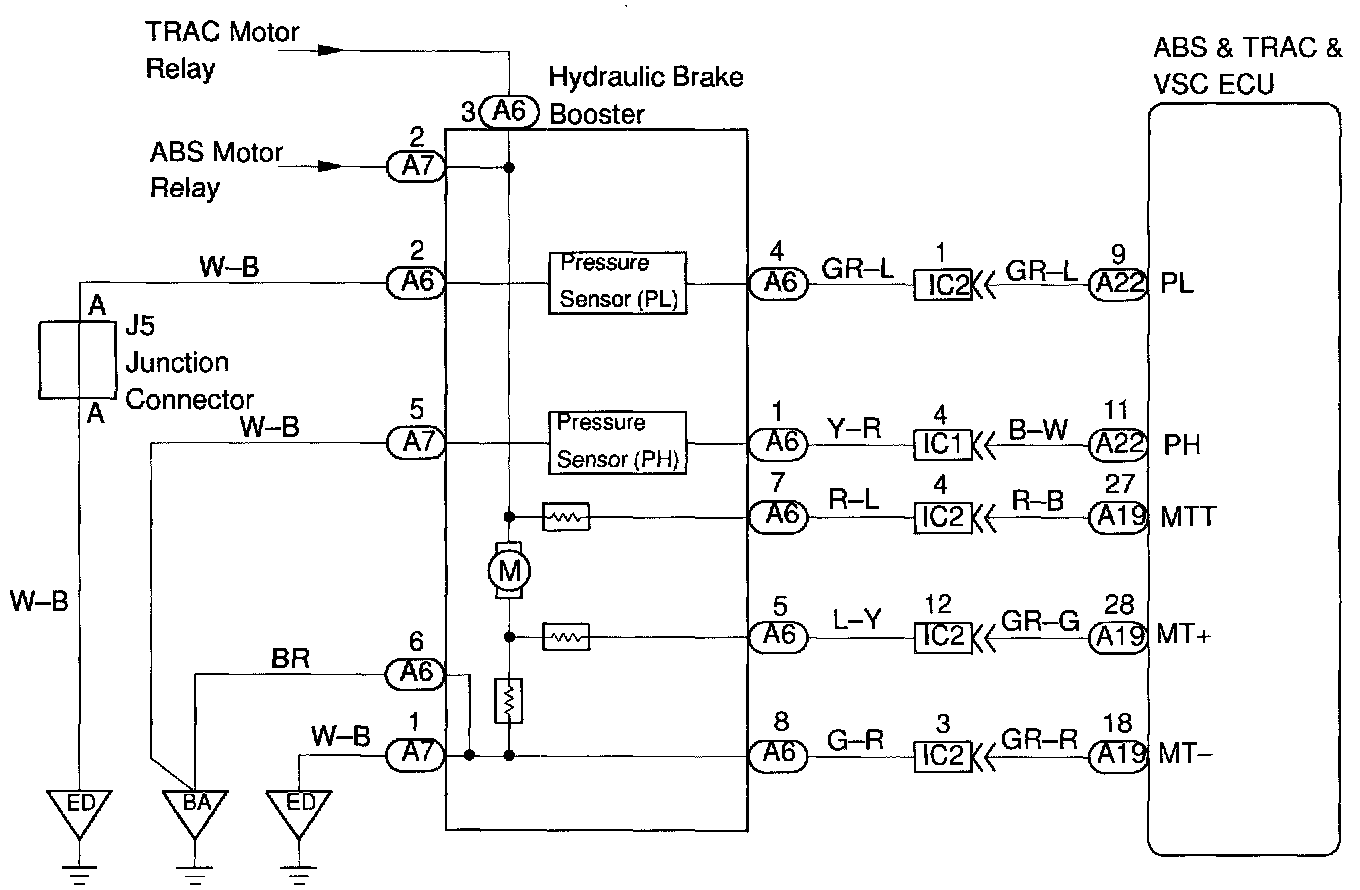

WIRING DIAGRAM

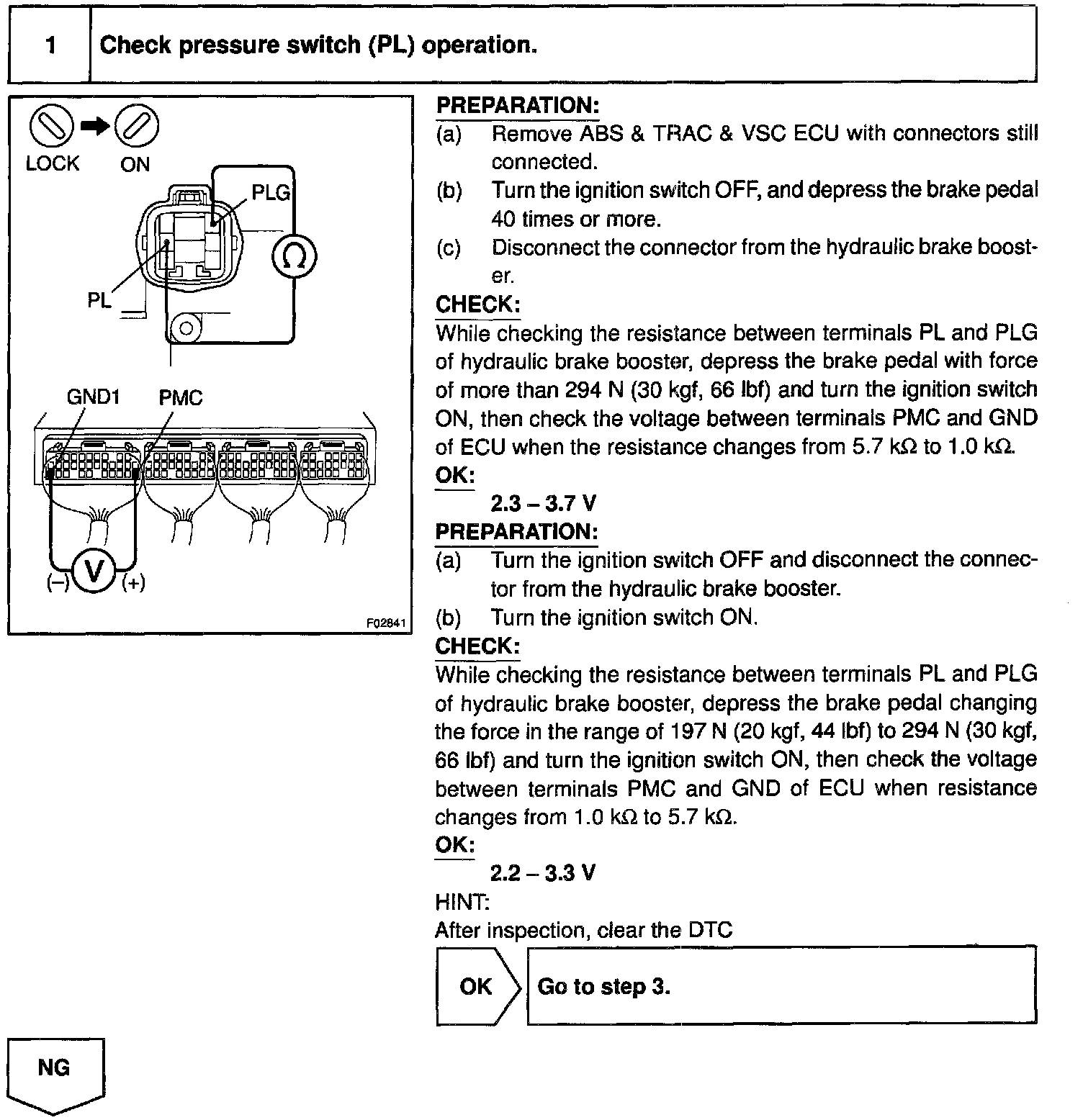

Step 1:

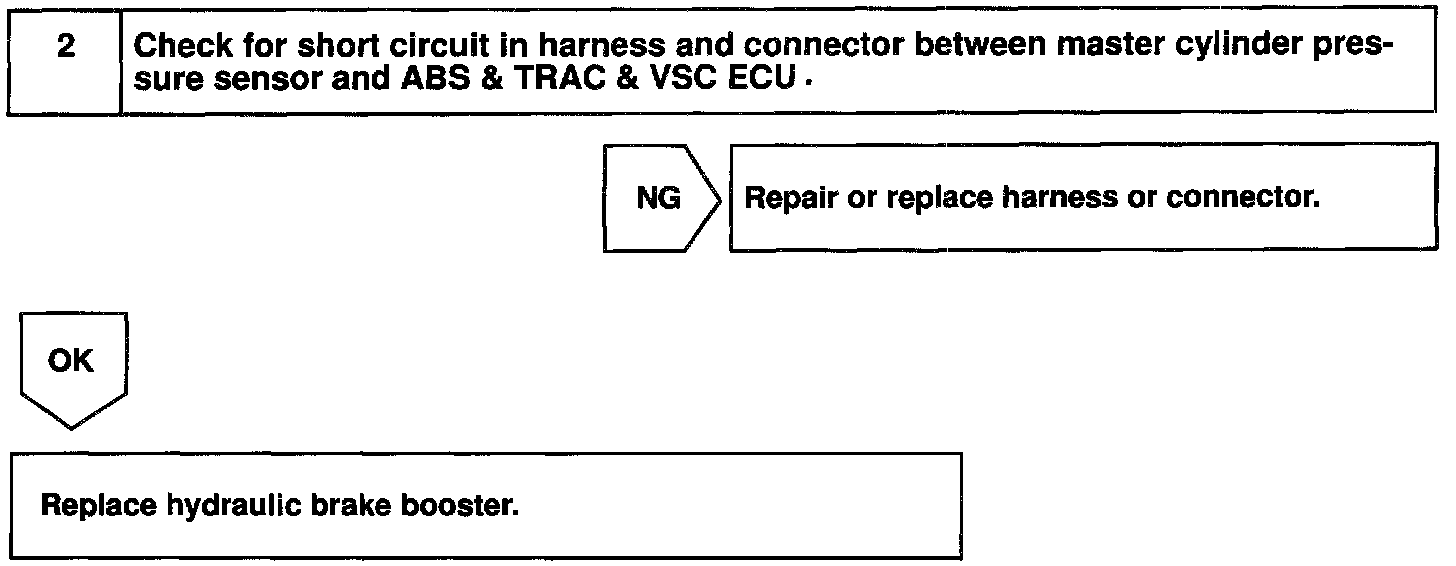

Step 2:

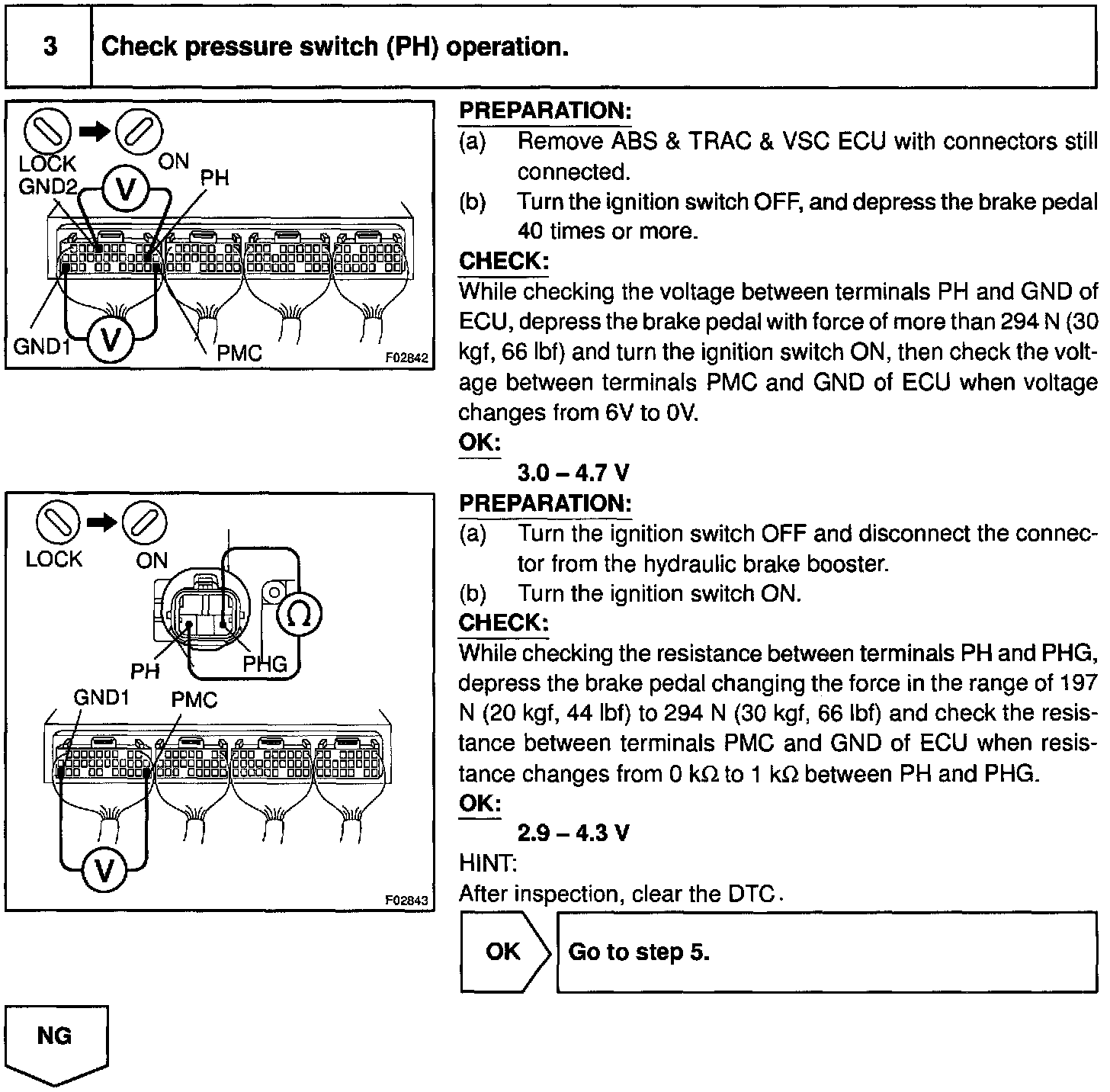

Step 3:

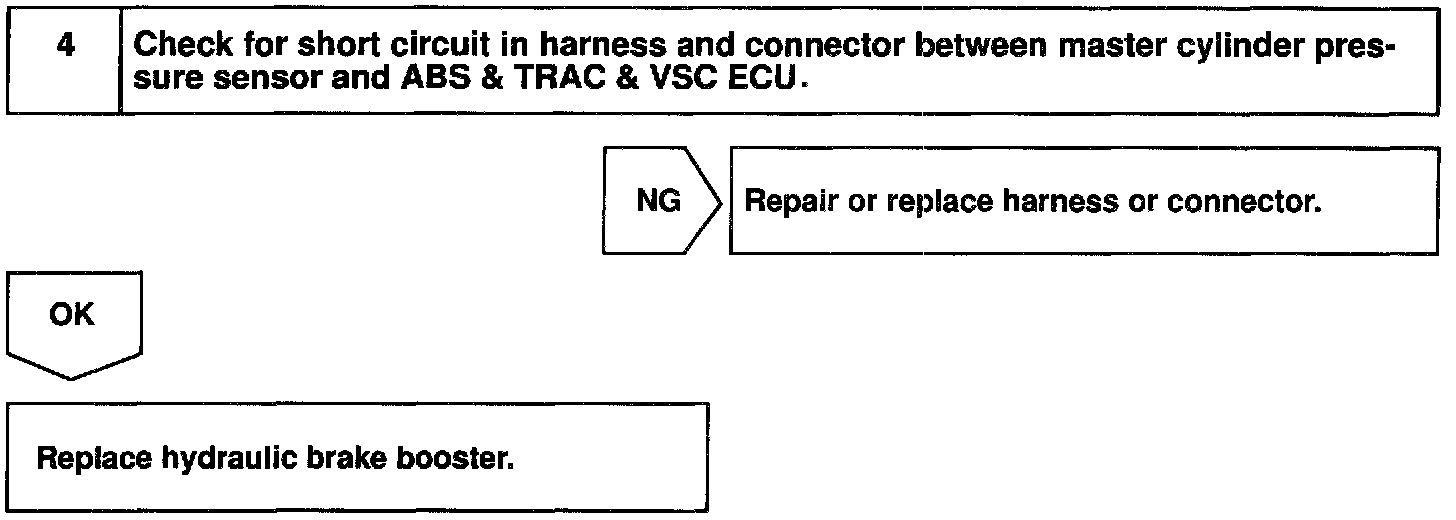

Step 4:

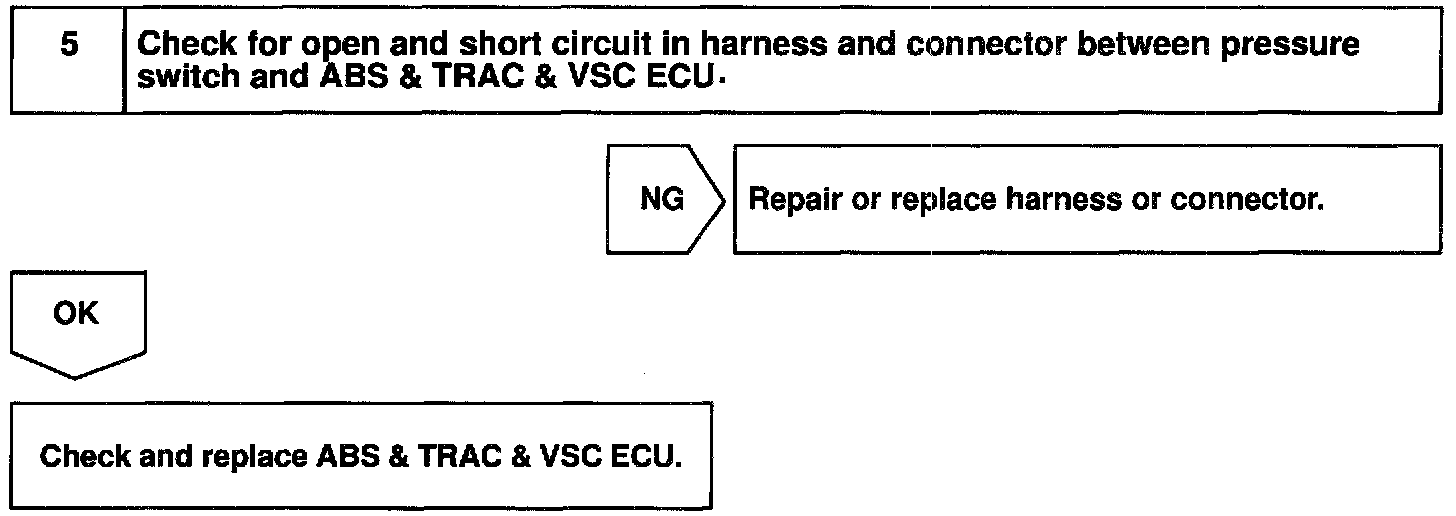

Step 5:
INSPECTION PROCEDURE
